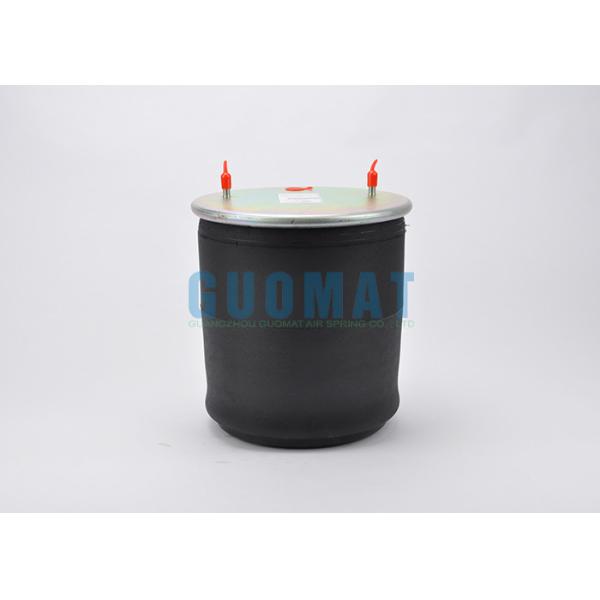

Steel Piston BPW 30K Truck Air Springs CONTITECH 940 MB**CPL / 940MB / W01M588609

Truck Air Springs CONTITECH 940 MB**CPL / 940MB / W01M588609 For BPW 30K

OEM Cross Number:

GUOAMT NO.:1T940MB CPL

CONTITECH 940 MB**CPL / 940MB / 940 MB
FIRESTONE 1T17D-4.3 / 1T17D 4.3 / 1T17D4.3
FIRESTONE W01 M58 8609**CPL / W01-M58-8609 / W01M588609
GOODYEAR 1R11-752 / 1R11 752 / 1R11752
PHOENIX 1DK 21 K**CPL / 1DK21K / 1DK21 K
DUNLOP FR D11B36
AIRTECH 120242
AIRTECH 3940P
CONTI 940MB
DUNLOP FR D11U31
FIRESTONE 1T17D-4.3
FIRESTONE W01M588613
GOODYEAR 1R11-703
GOODYEAR 566-22-3-501
PHOENIX 1DK21K
WABCO 9517117630
TAURUS KR732-01
VIBRACOUSTIC V1DK21K

OEM Suspension Supplier Number:

BPW BPW 30K
BPW 05.429.43.21.0
BPW 0542940510
BPW 0542940910
BPW 0542941510
BPW BPW30K
GRANNING 15916
ROR MLF7114
ROR MLF7177
GART 293.0.411
GART C293/A

BPW 05.429.40.91.0 940 MB Typ 30 K service assembly

PIRELLI 1TC30030205536
Manufacturer Original-part no. Model
BPW 05.429.40.91.0 30 K
Schmitz 013 769 30 K
Scania 2406164 30 K

service assembly weight 4,7 kg
M12: max. 70 Nm
M16: max. 130 Nm
M22x1.5: max. 20 Nm

The Composition Of Reversible Sleeve Models Rolling Air Spring Element Has The Following Aspects-GUOMAT

❶ screw bolt / Stud - Produced as a permanent part of the Cover Plate assembly for maximum strength and durability. It is used to attach the air spring to the vehicle’s suspension system.

❷ Combined link rod / Combo Stud – Used as the dual purpose of installing the air spring to the suspension system and providing the air inflation.

❸ Cover Plate - Curled up to more durable bellows design and the largest quality control in the factory. Allows 100% of the leak test before shipment.

❹Rubber Bellows - Air Bellows includes four layers of materials: an inner layer, two layer cord - reinforced fabrics, and a cover. Construction of a natural rubber provides – 65F functional properties.

❺ Bumper block / Buffer block - Solid rubber or engineering plastic device designed to prevent major damage to the vehicle or suspension in the event of a sudden loss of air pressure in the spring.

❻ Bottom Piston - Provides a low installation of air spring. To control the pressure in a changing under the load characteristics of spring.

❼Piston Bolt - Connecting the piston to the bellows. Sometimes extensions as an additional vehicle suspension spring.
