| Categories | RGB LED Wall Washer |
|---|---|
| Brand Name: | Maysee |
| Model Number: | MS-WW-RGB-A |
| Certification: | CE/ROHS |
| Place of Origin: | Shenzhen, China |
| MOQ: | 1pc |
| Price: | Negotiable |
| Payment Terms: | T/T or WU or Paypal |
| Supply Ability: | 10000pcs per month |
| Delivery Time: | 10-15 working days upon receipt of the deposit |
| Packaging Details: | Carton box or wooden case |
| Material: | Anodized aluminum |
| Light Color: | RGB/R/G/B/W |
| LED Type: | Cree |
| Control Mode: | DMX/on-off |
| Input Voltage: | AC110-220V/24VDC |
| IP Rating: | IP65 |
| Rated Power: | 36W |
| Warranty: | 3-year |
| Size: | 1000mm(L)x54mm(W)x95mm(H) |
| N.W.: | 3.2kg |
| Company Info. |
| Shenzhen Maysee Technology Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Waterproof outdoor LED linear light with RGB color changing fixture
Advantages
1. Specious design for linear light easy installation
2. Private tool with nice appearance design and feasible mechanical
assembly
3. With thick enough anodized aluminum housing to go for better
heat-dissipation
4. High-power led suitable for outdoor night visual effect
5. 3-year warranty
Features
1.MEANWELL power driver to make sure the stable quality
2. Anodized aluminum housing & Cree leds
3. With110V/220VAC high-power input
4. Up to 50,000hrs long life-span
5. Easy for cable connection and installation layout
6. Both RGB & mono-color are available
7. IP65
Specification
| Model No.: MS-WW-RGB-A(36W) | ||
| Electric Parameter | Power | 36W |
| LED Drive Current | 350mA | |
| Input Voltage | AC110-220/DC24V | |
| Power Efficiency | >90% | |
| Environment Parameter | Humidity | 0～85%RH |
| Storage Temp. | -40℃～+80℃ | |
| Operating Temp. | -25℃～ +50℃(-13°F ～ +122°F) | |
| Physical Parameter | Dimension | 1000mmx54mm(W)x95mm(H) |
| Weight | 3.2kg | |
| Material | aluminum & tempered glass | |
| Housing Color | silver | |
| IP Grade | IP65 | |
| Optical Parameter | LED Brand | CREE |
| LED Unit Power | 1W | |
| LED Quantity | 36pcs | |
| Light Source | 12R12G12B/36R/36G/36B/36W/36Y | |
| Lens Angle | 10°/15°/25°/ 45°/ 15°x50° | |
| White Color Temperature | Warm White(2700～3500K); Pure White(3500～5500K); Cool White(>5500K) | |
| LED Wave Length | Red: 620 - 630nm; Green:520 - 525nm; Blue:465 - 470nm; Amber:590 - 595nm | |
| Life Time | 50,000hrs | |
| Controller | DMX512 / On-Off | |
Application
1. Architectural lighting
2. Downlighting or uplighting for wall wash
3. Landscape lighting
4. Road and bridge lighting
5. Museum and gallery lighting
Typical system diagram

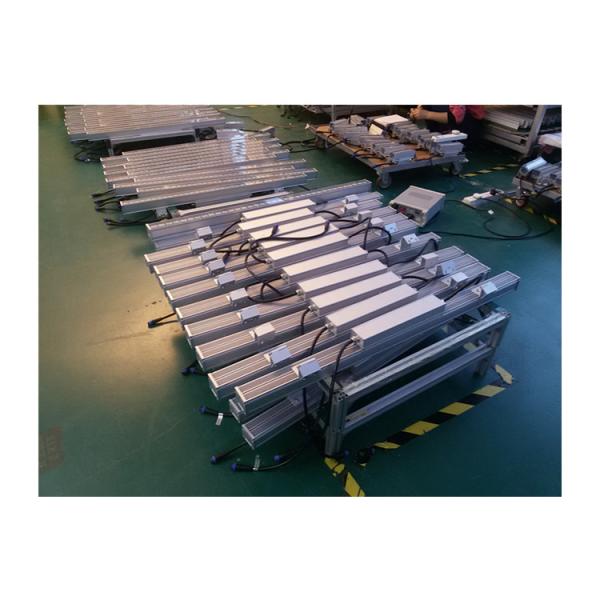

Pictures
|
