KBA10060 KBA1024 Travel Reduction Gear Fit For CX240B Excavator Power Drain System

KBA10060 KBA1024 Travel Reduction Gear Fit For CX240B Excavator Power Drain System

KBA10060 KBA1024 Travel Reduction Gear Fit For CX240B Excavator Power Drain System
KBA10060 KBA1024 Travel Reduction Gear Fit For CX240B Excavator Power Drain System
Categories Excavator Final Drive
Brand Name: OEM
Model Number: CX240
Place of Origin: China
MOQ: 1 PCS
Price: Negotiable
Payment Terms: T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability: 100-2000
Delivery Time: 3-7 working days
Packaging Details: Wooden box for heavy parts, paper carton for light parts
Parts No.: KBA10060 KBA1024
Excavator Model: CX240
Packing: Wood Box, Standard Carton, Pallet
Item Condition: New
Weight: 300 KG
Contact Now
Company Info.
Guangzhou Anto Machinery Parts Co.,Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

KBA10060 KBA1024 Travel Reduction Gear Fit For CX240B Excavator Power Drain System


  • KBA10060 KBA1024 Travel Reduction Gear Fit For CX240B Excavator Power Drain System

  • Spec Sheet

Excavator spare parts nameTravel reduction gear
Equipment ModelCX240B
Parts egoryexcavator final drive
Spare parts ConditionBrand new
MOQ of order(PCS, SET)1
Parts AvailabilityIn stock
Delivery Lead time1-3 days

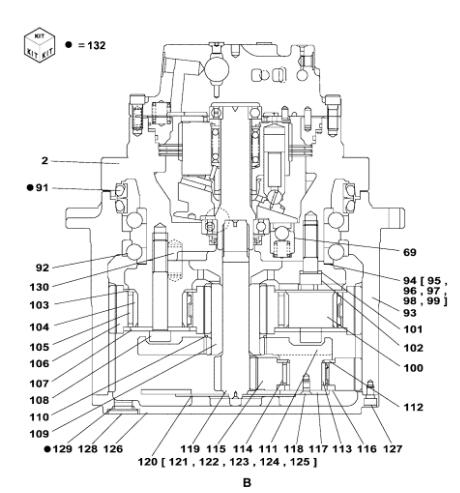

  • Parts Diagram:


KBA10060
MOTO-REDUCTION GEAR SUM
91.LE01126
SEAL SUM
92.LB00548
BEARING SUM
93.NSS
NOT SOLD SEPARAT CON .
94.LH00254
SHIM KIT SUM
95.NSS
NOT SOLD SEPARAT CON Plate .
96.NSS
NOT SOLD SEPARAT CON Plate .
97.NSS
NOT SOLD SEPARAT CON Plate .
98.NSS
NOT SOLD SEPARAT CON Plate .
99.NSS
NOT SOLD SEPARAT CON Plate .
100.LS00129
HOLDER SUM .
101.LA00702
WASHER SUM .
102.LA00703
BOLT SUM
103.LR00583
PLATE SUM .
104.LB00549
RING RACE SUM .
105.LB00550
BEARING SUM .
106.LC00163
SUN GEAR SUM
107.LR00584
PLATE SUM .
108.LA00704
BOLT SUM
109.LC00164
SUN GEAR SUM .
110.LA00705
RING, SNAP SUM RING SNAP
111.LS00130
HOLDER SUM .
112.LR00585
PLATE SUM
113.LB00551
RING RACE SUM .
114.LB00552
BEARING SUM .
115.LC00165
SUN GEAR SUM .
116.LR00586
PLATE SUM
117.LR00587
PLATE SUM .
118.LV00029
SCREW SUM .
119.LC00166
SUN GEAR SUM .
120.LR00588
DISC SUM
121.NSS
NOT SOLD SEPARAT CON Plate .
122.NSS
NOT SOLD SEPARAT CON Plate .
123.NSS
NOT SOLD SEPARAT CON Plate .
124.NSS
NOT SOLD SEPARAT CON Plate .
125.NSS
NOT SOLD SEPARAT CON Plate .
126.LW00316
COVER SUM Superseded by part number: LW006290 .
126.LW005570
COVER SUM Superseded by part number: LW006290 .
127.108R010Z016N
BOLT SUM M10 x 16 .
127.108R010Z020N
BOLT SUM M10 x 20 .
128.165681A1
PLUG SUM
129.154503A1
O-RING SUM
130.160104A1
PIN SUM .
. .LZ006880
SEAL KIT SUM .
. .LZ006890
REPAIR KIT SUM Superseded by part number: LZ010600 .
. .LZ006910
REPAIR KIT SUM .
. .LZ006900
REPAIR KIT SUM .
. .LN001410
REDUCER SUM .


  • Description

The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.


Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.


  • Advantage

1. The gear parts are built to fit to the genuine drive gearbox system.

2. The gear parts are supplied strictly according to the genuine parts alog.

3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB

  • Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.


2. Warranty type: replacement of the parts that have quality problem.


3. Warranty is not valid for below s

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance


  • Packing & Delivery

* Strong carton or wooden box for gear components. Wooden box for gearbox assembly

* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
