VOE14528733 SA7117-30050 Excavator Final Drive Used For Vo-lvo EC210B EC180 EC220D Travel Gearbox

Categories Excavator Final Drive
Brand Name: OEM
Model Number: EC210B
Place of Origin: China
MOQ: 1 PCS
Price: Negotiable
Payment Terms: T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability: 100-2000
Delivery Time: 3-7 working days
Packaging Details: Wooden box for heavy parts, paper carton for light parts
Parts No.: VOE14528733 SA7117-30050
Excavator Model: EC210
Excavator Brand: Vo-lvo
Packing: Wood Box
Warranty: 3/6 Months
Weight: 250 KG
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

VOE14528733 SA7117-30050 Excavator Final Drive Used For Vo-lvo EC210B EC180 EC220D Travel Gearbox


  • VOE14528733 SA7117-30050 Excavator Final Drive Used For Vo-lvo EC210B EC180 EC220D Travel Gearbox

  • Spec Sheet

Excavator spare parts nameTravel reduction gear
Equipment ModelEC210B EC140B EC180B EC200B EC220D
Parts egoryexcavator final drive
Spare parts ConditionBrand new
MOQ of order(PCS, SET)1
Parts AvailabilityIn stock
Delivery Lead time1-3 days

  • Appliion

EC140B . EC140C . EC140D . EC140E . EC160B . EC160C . EC160D . EC170D . EC180B . EC180C . EC180D . EC200B . EC210B . EC210C . EC220D . EC220E . FC2121C . Vo-lvo_pro

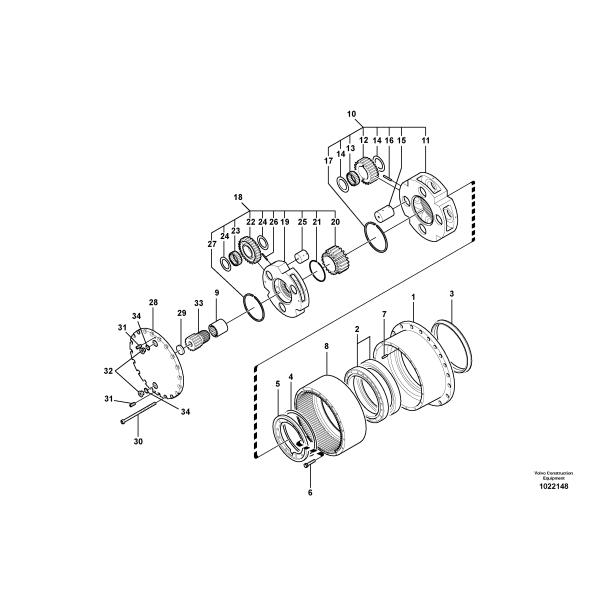

  • Parts Diagram


ENTIRE GROUP Travel gearbox:

VOE14528733[1]-
Travel gearbox
1.VOE14522475[1]-
Housing
2.SA7117-30110[2]-
Ball bearing
3.VOE14601683[1]-
Sealing
4.SA7117-30140[1]-
Shim 0,1 Thick
SA7117-30150[1]-
Shim 0,9 Thick
SA7117-30160[1]-
Shim 1,0 Thick
SA7117-30170[1]-
Shim 1,2 Thick
5.SA7117-30130[1]-
Retainer
6.VOE978932[12]-
Hexagon screw
7.SA9324-21212[2]-
Pin
8.SA7117-30190[1]-
Ring gear
9.SA7117-30180[1]-
Flexible coupling
10.VOE14528723[1]-
Planet carrier
11.SA7117-30210[1]-
Planet carrier
12.SA7117-30240[4]-
Planetary Gear
13.SA7117-30230[8]-
Needle bearing
14.SA7117-30220[8]-
Thrust washer
15.VOE14528724[4]-
Pin
16.SA9325-06012[4]-
Spring pin
17.SA7117-30260[1]-
Thrust ring
18.VOE14528727[1]-
Planet carrier
19.VOE14528728[1]-
Planet carrier
20.SA7117-30290[1]-
Sun gear
21.SA7117-30300[1]-
Ring
22.SA7117-30340[3]-
Planetary gear
23.SA7117-30320[3]-
Needle bearing
24.SA7117-30310[6]-
Thrust washer
25.SA7117-30360[3]-
Pin
26.SA9325-04010[3]-
Spring Pin
27.SA7117-30260[1]-
Thrust ring
28.VOE14602566[1]-
Cover
29.SA7117-15230[1]-
Pad
30.SA7117-30370[20]-
Hexagon screw
31.SA9023-11004[2]-
Set screw
32.SA9415-11052[0002]-
Plug
33.SA7117-30330[1]-
Sun gear
34.VOE983524[0002]-
O-ring
10.VOE14526220[1]-
Overhaul kit

  • Description

The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.


Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.


  • Advantage

1. The gear parts are built to fit to the genuine drive gearbox system.

2. The gear parts are supplied strictly according to the genuine parts alog.

3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB

  • Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.


2. Warranty type: replacement of the parts that have quality problem.


3. Warranty is not valid for below s

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance


  • Packing & Delivery

* Strong carton or wooden box for gear components. Wooden box for gearbox assembly

* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
