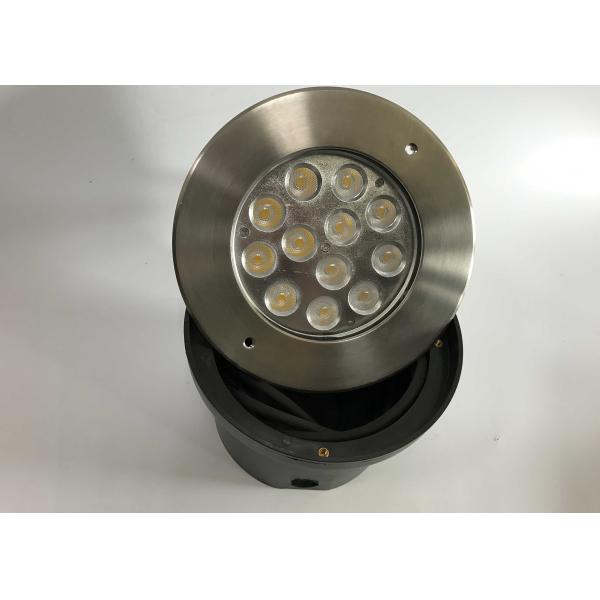

12 x 3W Recessed LED Underwater Lights IP68 Swimming Pool Lights With PVC Sleeve

12 x 3W Recessed LED Underwater Lights With PVC Sleeve IP 68 Swimming Pool Lights

Technical Datas

Dimension

Material & Manufacturing Technique

Housing:Molding shaped stainless steel sus316#.

Front cover:stainless steel sus316#.

Glass:Step tempered glass,T=10mm

Lens:All-in -one optional lens,efficiency ≥ 85%

Loading Capacity:Exert force area of Φ10=210Kgs,Φ30=550Kgs,Φ60=800Kgs

Cable gland:IP68 PG-11 copper with nickel-coated.

LED:High power LED

PCB:Excellent heat conductivity aluminum,coefficient of heat conductivity≥2.0w/mk

Driver:Constant current output

Single color LED=2-circuit output

RGB 3in1 LED=6-circuit output

Application environment:Temperature of water between -20℃-40℃ less than 1m depth

Power cable:H07RN-F 2x1.0m² L=3m(for single color)

H07RN-F 4x1.0m² L=3m(for RGB)

Sleeve:060 PVC

Model Number Infos

Competitive Advantage

1) Whole lamp is made of 316 / 304 Stainless Steel,Weight = 2.33Kg,high level quality LED underwater

light.

2) With PVC sleeve,lamp body can be buried into pool wall,the lighting effect is beautuful.

3) High power CREE & Osram LED,W/WW/R/G/B/Y/RGB 3in1 color optional,meet diversified lighting color

Change.

4) H07RN-F trong power cable length can be customzied.

5) Professional 10 years manufacturing and exporting experience,keep good quality control and good

after-sales service.

Warm Tip & Warning

1) The 36W 7Inch 304 Stainless Steel RGB Recessed LED Underwater Lights has to be lighted

underwater to prevent the lamp burned up because of over-heating.

Pls don't light it more than 15 minutes out of water!

2) The LED underwater light is 12V / 24V low voltage,pls don't connect it to 220V / 240V high voltage,this

will burn the LED underwater light.

3) The best height for this LED underwater light lighting is within 1M

4) The power cable of this LED underwater light can be customized.

5) This LED underwater light has very lighting effect for swimming pool lighting project.

Installation

Photoes

Application Scene

Other Types

A.L Lighting Limited Birthday---2007,23th,October.

A.L Lighting Home----Located in Xiaolan town,Zhongshan City,near to Guzhen--the capital of world LED Lights.Our factory covering about 2,500m².Has six production line.

A.L Lighting Product Range---

-Indoor :LED Bulb Light,LED Down Light,LED Tube Light,LED Track Lights,LED Panel Light,LED Office Lights,LED High Bay Light,LED UFO Light.

-Outdoor:LED Underwater Light,LED underground Light,LED landscape spotlight,LED Flood Light,LED Wall

LED Wall Light,LED flexible strip light.etc.

A.L Lighting Families--Oversea salesteam-8people.(There will always have one sales stype suitable for you:))

China mainland salesteam-6people

R&D Team:6 people.

Management Team-5 people

Production Team-more than 120 people.

After-sales Team-4 people.

Product Quality Level--All of A.L products passed CE,RoHS certification and at least 2 years warranty.

The raw materials are also after strictly selected,the related materials are including Die-casting aluminum,

Aluminum,316 Stainless Steel ,304 Stainless Steel,Silicone,PMMC,PC,LED chip brand including CREE,

OSRAM,Bridgelux,SUMSANG,Epistar,TOYONIA.

A.L Lighting Factory--warmly welcome all partners visit our factory and share the ideas on LED lighting products and the market trend.
