| Categories | Aluminum Milling and Drilling Machine |
|---|---|
| Brand Name: | RONGQI |
| Model Number: | LXSJ6-250 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 SET |
| Price: | NG |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets per month |
| Delivery Time: | 15 work days |
| Packaging Details: | Standard export package |

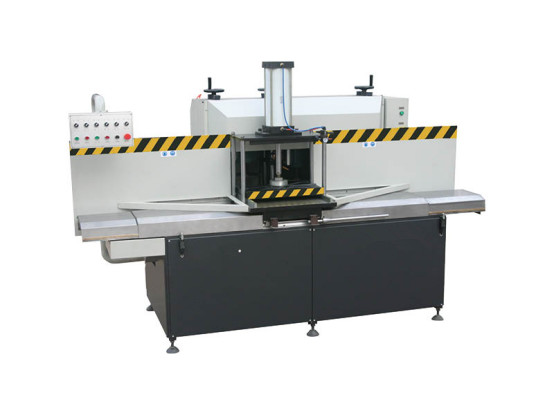

Aluminum Curtain-wall Profile Tenon Milling Machine
Features:
♦ Six combined cutters can assembly any size according to the users
requirements
♦ One time feeding can process the required mortise dimension of the profile
surface.
♦ Milling any angle between 180° is available.
♦ Applicable to molding processing for end surface and level surface of a variety of
profiles.
♦ Feeding system adopts air-hydraulic cylinder drag, adjustable speed, uniform
cutting and feeding speed, accurate processing and high quality.
Technical Parameters:
| Power supply | 380V/50Hz |
| Cutting motor power | 13.2kw(six group) |
| Motor rotary speed | 2800r/min |
| Feeding motor | 0.37KW |
| Operation air pressure | 0.5-0.8Mpa |
| Motor main shaft diameter | Φ32mm |
| Wortable measurement | 480 x 480mm |
| Adjustbale space of cutter | Φ250Milling cutter 4piecs 14"milling cutter 2 pieces |
| Quantity of milling cutter | horizotal 80mm vertical 280mm cutter 6piecs |
| Contour dimension | 2070mmx1130mmx1820mm |
| Weight | 1800kgs |
|
