Thickness 0.3 - 0.6mm Metal Glazed Tile Cold Roll Forming Machine With CE Safe Cover

Categories Glazed Tile Roll Forming Machine
Brand Name: HC
Model Number: HC28-200-1000
Certification: ISO
Place of Origin: Botou Hebei China
MOQ: 1set
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Delivery Time: 30days
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Type: Chain Drive Tile Roll Forming Machine
thickness: 0.3-0.6mm
width: 1250mm
warranty: 1 year
Dimension: 6.7*1.6*1.3m
equipment base: 300H steel frame
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Thickness 0.3 - 0.6mm Metal Glazed Tile Cold Roll Forming Machine With CE Safe Cover

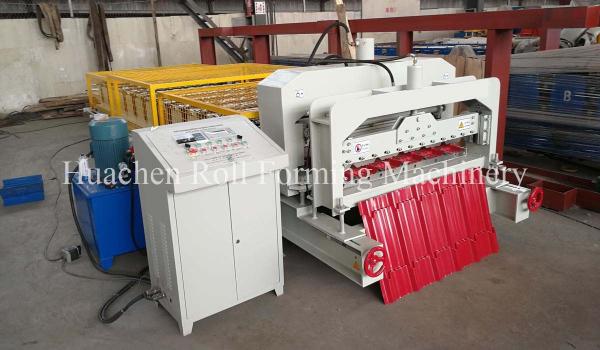

Product Show:

Note:

♦If the plate with a coating,the coating should be consistent with coating inspection standards of the relevant color-coated,should not have skin off,so as not to effect quality of roll forming.

♦If the material is galvanized steel,the galvanized should be consistent with the relevant testing standards of the galvanized steel,should not have zinc layer off,so as not to effect the quality of roll forming.

Working Flow& Layout


Good Price Metal Glazed Tile Roll Forming Machine

Supplying components of complete machine


NO.DescriptionQuantity (set)Remark
15Tmanual decoiler1
2Guiding device1One complete unit as main machine
3Pre-cutter1
4Forming system1
5Transmission system1
6Hydraulic guillotine2
7Support table2
8Hydraulic station1
9Control box1
Spare parts and tools1As attaching list

General parameters

NoItemParameterNote
1Forming SpeedMax2.5 m/minExcludes cutting
2Forming stationAround 16 groups
3Total PowerAbout 7 KW
4Total WeightAbout 4380KGS
5Voltage380v,60hz,3p
6Diameter of shaft70mm
5Installation Size13 * 1.4 M*1.4

Main parts material

NoItemParameterNote
1Forming Shaft45# steel with grinding process
2Forming Roller45# steel with hard chrome coating
3Cutting BladeCr12MoV with hard treatment
4Control SystemDELTA PLC& transducer, others are Chint etc.
5Electrical motorChina quality brand
6BearingChina quality brand
7ChainChina quality brand
8Hydraulic partsChina quality brand

Line Components and Characteristic

Good Price Metal Glazed Tile Roll Forming MachineGood Price Metal Glazed Tile Roll Forming MachineGood Price Metal Glazed Tile Roll Forming Machine

Spare parts(for free)


No.NameQuantityCountry
1RelySeveralChina
2Encoder1pcsChina
3Fuses2pcsChina
4Normal Button2pcsChina
5Switch button2pcsChina
6Forming station bearing1pcsChina
7Sensor4pcs

China

After-Sales Service

1. we can produce the special machine,send your drawing to us,we can design for you.


2. if you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.


3. we provide a one year warranty and lifelong technical support, we can send our technicians to you to give you on-site training.


The training period would be for no more than one week with the customer paying for the visa, return ticket, food, accommodations and a daily wage of US100.


4. engineers available to service machinery overseas.


5. if you come to visit our factory,we can book the room for you, car pick up to send.


Thanks for visiting our products, if you have interest, pls leave your message, or you can contact us, speical design is avaliable!


The real data, the most professinal foreign trade team, your best trustable partner.
