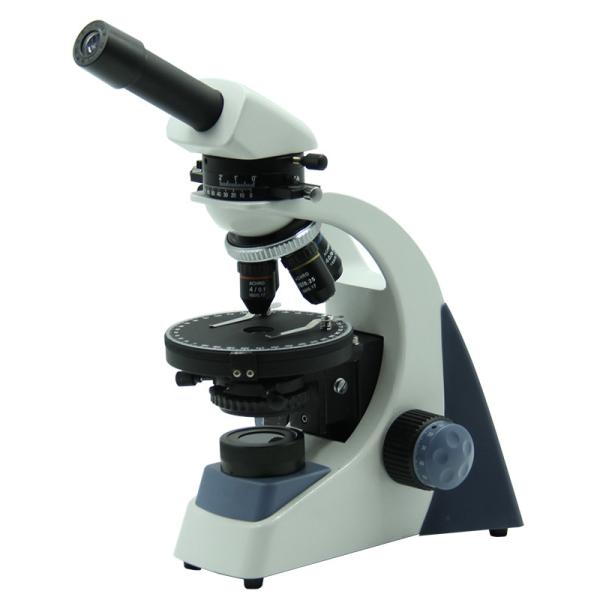

WF10x/18mm Polarized Light Microscope With Abbe N.A.1.25, With Dia 2~30mm Iris Diaphragm A15.1302
Introduction
A15.1302 Polarizing Microscope, with full polarzing function and competitive price, is the best economic tools for school and student use, newly developed in 2011.
--WF10x/18mm Wide Field High Eyepoint, One With Retical Micrometer
--Round Stage Dia.120mm, 360° Rotatable, Graduation 1° Increment,
Minimum Resolution 6'
--Light Source 1W LED
--Polarizer: On Light Collector, 360º Rotatable
--Analyzer: Rotatable With Graduation 0~90º, Sliding Out of Optical
Path
--Optical Compensator: λ Slip (First Class Red), 1/4λ Slip
Specification
| A15.1302-A | A15.1302-B | |
| Head | Monocular Head, 30° Inclined | Binocular Head, 30° Inclined, Interpupillary Distance 55~75mm |
| Eyepiece | WF10x/18mm, With Retical 0.1mm/Div | WF10x/18mm, High Eyepoint, 1pc WF10x/18mm, With Retical 0.1mm/Div, 1pc |
| Nosepiece | Backward, Quadruple Nosepiece | |
| Objective | Achromatic 4x,10x,40x(S),100x(O,S), 45mm DIN | |
| Working Stage | Round Stage Dia 120mm, 360° Rotatable, Graduation 1° Increment, Minimum Resolution 6', When Using Venire Scale Center Adjustable | |
| Condenser | Abbe N.A.1.25, With Dia 2~30mm Iris Diaphragm, With Filter Dia.32mm | |
| Focusing | Coarse & Fine Focusing Knob, Range 14mm, Minimum Division Of Fine Focusing 0.01mm | |
| Light | Build-in LED, 3.5V/1W, Brightness Adjustable. | |
| Polarizing | Polarizer: On Light Collector, 360º Rotatable | |
| Analyzer: Rotatable With Graduation 0~90º, Can Be Slided Out of Optical Path | ||
| Optical Compensator : -- λ Slip (First Class Red) --1/4λ Slip | ||

Application
A15.1302 series is a simple polarizing microscope with advanced multifunction. It can observe mineral crystal figure, color and interference color and also identify its optical performance. It is a good microscope used in geology, petroleum, coal, Chemical fiber, medical treatment and physic inspection. It is also widely used in academic demonstration and research.
|   |
