| Categories | Omni Fiberglass Antenna |
|---|---|
| Brand Name: | AMEISON |
| Model Number: | AMXF-8025-5B |
| Certification: | ISO 9001: 2008 |
| Place of Origin: | China |
| MOQ: | 100 |
| Price: | EXW Price |
| Payment Terms: | TT,Paypal,Western Union |
| Supply Ability: | 50,000 Pieces per Month |
| Delivery Time: | 10-20 working days |
| Packaging Details: | PP bag /inner box/master carton or customized |
| Frequency range(MHz): | 806-960/1710-2500 |
| Bandwidth(MHz): | 154/790 |
| Gain(dBi): | 5 |
| VSWR: | ≤1.5 |
| Polarization: | Vertical |
| Lightning protection: | DC Ground |
| Input connector type: | N female |
| Mounting way: | Pole-holding |

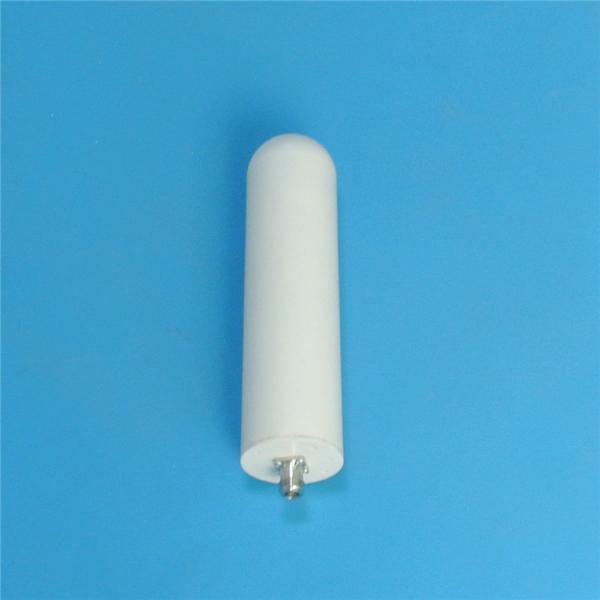

AMEISON 800 - 2500 MHz Omni-directional Antenna 5dbi for PCS/ 3G/ WLAN/ 4G/ LTE system
Feature:
Exquisite appearance
Optimized dimension
Full day working
Wide frequency band, low standing wave, strong anti-interference ability
Application:
PCS/ 3G/ WLAN/ 4G/ LTE system
Vehicle mobile communication device
AMXF-8025-5B Electrical Specifications | |
| Frequency range(MHz) | 800-960/1710~2500 |
| Bandwidth(MHz) | 154/790 |
| Gain(dBi) | 5 |
| Half-power beam width(°) | H:360 V:55 |
| VSWR | ≤1.5 |
| Input Impedance(Ω) | 50 |
| Polarization | Vertical, Linear |
| Maximum input power(W) | 50 |
| Lightning protection | DC Ground |
| Input connector type | N female |
| Mechanical Specifications | |
| Dimensions(mm) | Φ60*230 |
| Antenna weight(Kg) | 0.05 |
| Operating temperature(°c) | -40~60 |
| Radome material | ABS |
| Radome color | White or customized |
| Waterproof Standard | IP65/ IP67 |
| Mounting hardware(mm) | ¢35 - ¢50 |
| Mounting way | Magnetic adsorption/ Wall/ Pole Mount |
|
