99% Purity Alumina Ceramic Tube / Ceramic Pipe Roll With High Temperature

Categories Ceramic Tube
Brand Name: Mingrui
Model Number: Customized reqirement
Certification: ISO9001, , CE, UL, TUV
Place of Origin: China
MOQ: 1 pieces
Price: negotiable
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/P, D/A
Supply Ability: 5000 pieces week
Delivery Time: 15 working days after the order confirmed
Packaging Details: intertional carton box
Material: 95% 97% 99 % Al2O3 ceramic
Feature: Temperature Resistance
Color: White, yellow,or customized
Precision: +- 0.001mm
Diameter range: 0.5mm-150mm
Length range: 0.3mm-500mm
Size: As customer drawings
Product name: Al2O3 Ceramic Custom
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

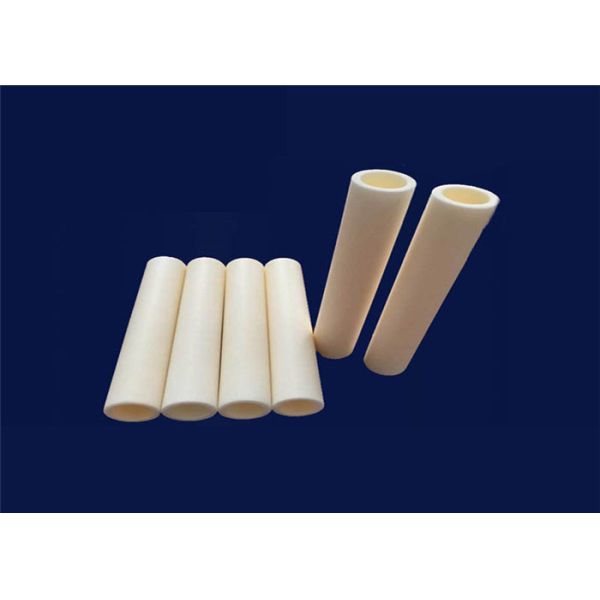

99% Purity Alumina Ceramic Tube / Ceramic Pipe Roll With High Temperature


99% Purity Alumina Ceramic Tube / Ceramic Pipe/Roll With High Temperature

About Alumina Tubes

Alumina Ceramic tubes have exceptional hardness and strength, resistance to chemical attack and wear, low dielectric loss and excellent electrical insulation properties. Additionally, Alumina can be metallized for brazing to other metals, highly polished, and comes in a variety of purities depending on it use. Due to these outstanding properties ceramic Alumina tubes are used in a wide range of industrial and advanced applications.


Performance:


MaterialAluminaZirconia
PropertiesUnitsAL997AL995AL99AL95ZrO2
%Alumina——99.70%99.50%99.00%95%——
Color——IvoryIvoryIvoryIvory & Whiteivory white
Permeability——Gas-tightGas-tightGas-tightGas-tightGas-tight
Densityg/cm³3.943.93.83.755.89
Straightness——1‰1‰1‰1‰1‰
HardnessMohs Scale9998.88.5
Water Absorption——≤0.2≤0.2≤0.2≤0.20
Flexural Strength
(Typical 20℃)
Mpa3753703403041200
Compressive
Strength
(Typical 20℃)
Mpa23002300221019105700
Coefficient of
Thermal
Expansion
(25℃ to 800℃)
10-6/℃7.67.67.67.610
Dielectric
Strength
(5mm
Thickness)
AC-kv/mm10101010——
Dielectric Loss
25ºC@1MHz
——< 0.0001< 0.00010.00060.00040.001
Dielectric
Constant
25º C@1MHz9.89.79.59.229
Thermal
Conductivity
(25℃)
W/m·K353534203

Technical Process:

alumina ceramic bushing
Company Introduction:

Dongguan Ming Rui Ceramic Technology Co., LTD., a professional manufacturer of machined ceramic parts, has 10 senior engineers and lots of technicians. We produce strengthened structure zirconia ceramic bar, ceramic tube, ceramic shaft, ceramic plate, ceramic sleeve, ceramic valve, ceramic plunger and ceramic arm. The products are applicable to instruments, medical instruments, clocks and electronic products, mills, energy and power, machine and metals, autocar and military and some other high-end areas.
In cooperation with Tsinghua University, we've achieved great successes in particular requirements. With our professional knowledge and business experience in machined ceramic parts, low-budget and high-performance new ceramic products are made of high–quality raw materials. The value of our ceramic products is greatly increased due to the composite technology and precise processing.
Our high efficiency machined ceramic parts, perfect service and good reputation roots in our professional machined ceramic technology, continuous innovation, great sincerity and our pursuit for sustainable development. We have a unique technnology called “mirror polishing” that has improved the brightness, color, smoothness of our ceramic parts.



FAQ :


1. What kind of industry ceramics do you have ?
We specialized in 95% 97% 99% alumina ceramic and zirconia ceramic parts .

2.Can you produce free samples for me ?
Yes usually , we can produce free samples for you but it is up to the product complexity .

3.What terms can you accept for payment ?
T/T, L/C , Western union , Money Gram and Paypal is welcome , but paypal and western union only for small -sum payment.


More photos :
