| Brand Name: | NBSANMINSE |
| Model Number: | PMF |
| Certification: | ISO9001 |
| Place of Origin: | CHINA |
| MOQ: | 10PCS |
| Price: | Negotiation |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 10000PCS |
| Delivery Time: | 5-30days |
| Packaging Details: | Box |
| Fluid: | Air , Vacuum |
| Operating Pressure: | 0 ~ 1.0MPa |
| Negative Pressure: | -100KPa (10Torr) |
| Max Pressure: | 1.5 MPa |
| Application Tube: | Polyurethane and Nylon |
| Default thread: | BSPT ( R ) |
| Company Info. |
| Ningbo Sanmin Import And Export Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

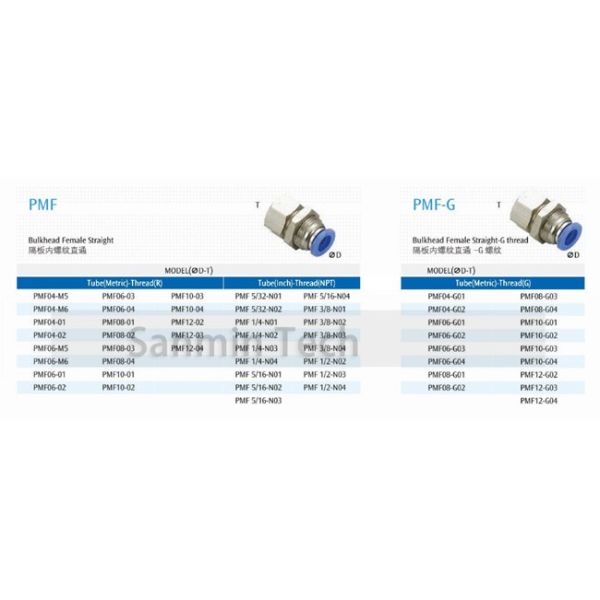

PMF Bulkhead Female Straight Fitting Plastic Fitting Tube Fitting Accessories Street Pneumatic Parts In Sanmin
Specification
1. Brass with good nice nickel plated.
2. BSPT thread (British Standard Taper Pipe Thread).
3. Each and every pcs was tested at 10kgs/cm2.
4. Thread with PTFE coating which can seal directly without any other seal material.
Fluid : Air , Vacuum
Operating Pressure : 0-1.0MPa
Negative Pressure : -100KPa (10Torr)
Max Pressure : 1.5MPa
Operating Temperature : 50 ~ 60 ℃
Applicable Tube : Polyurethane and Nylon
FAQ
Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .
Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special
customer.pre-production sample,production sample.
Q: What ' s your business scope ?
A: Our business scope is SMC type high quality cylinder , air
source treatment , solenoid valve ,water valve,steam valve,
mechnical valve ,foot valve,angle seat valve,anti-explosion
valve,pluse vlave, pneumatic valve ,hydraulic ball valve,hydraulic
ss ball valve,hydraulic check valve,hydraulic solenoid valve ,all
type of coil,lubrication pump and parts,SS316 fitting,quick coupler
, etc .
Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials and
brass,aluminum . Valve / solenoid valve / electric valve /
pneumatic valve and air cylinder products and so on .
Q: Do your company have specialized technical personnel ?
A: Design as your requirements,and have QC for make 100% inspection
Why choose us
1: Various style for each products and completely series pneumatic
products .
2: Large stock for fast shipping .
3: Provide free products information .
4: Reliable quality assured and active after-sell service
5: One year quality guarantee
There are a wide variety of plastic pneumatic connectors, which are
mainly distinguished according to their functions, connection
modes, structures and application scenes. Common types include
quick-plug connectors (such as straight, elbow and tee), threaded
connectors (such as straight thread and bent thread) and connectors
with special functions (such as reducing diameter, rotating, high
pressure and sealing).Classified by connection mode and function |
|
