Huge Capacity 24000L Volume 8x4 Drive Foam Fire Truck with Six Seats

Categories Foam Fire Truck
Brand Name: Jindun
Model Number: JDX5420GXFPM240/H
Certification: ISO9001/CCC
Place of Origin: Shanghai,China
MOQ: 1 unit
Price: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300units/year
Delivery Time: 90 days after sign contract
Packaging Details: Exporting standard package or customized packing
Chassis brand: SINOTRUK HOWO
Wheelbase: 1700+4300+1350mm
Max. speed: 95km/h
Drive type: 8x4
seat: 6
Max. power: 309kw
Structure: Double row, four-door, lengthen cab
Pump: Darley pump manual
Product name: Huge Capacity foam fire fighting truck
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

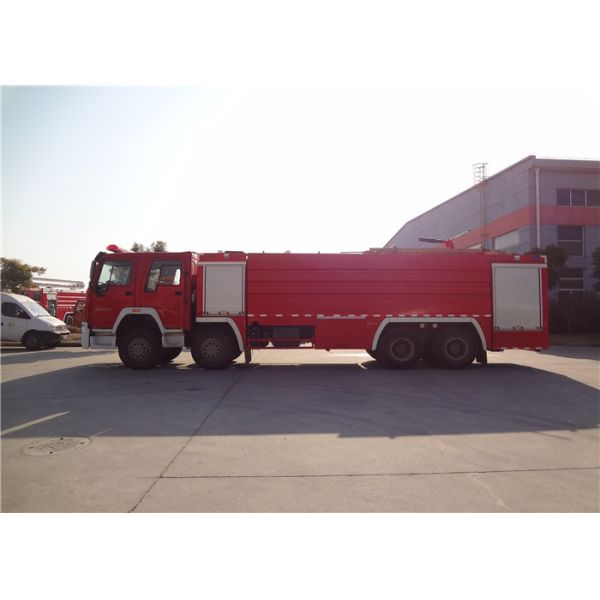

Huge Capacity 24000L Volume 8x4 Drive Foam Fire Truck with Six Seats

Huge Capacity 8x4 Drive Darley Pump Six Seats Howo Chassis Foam Firefighting Truck


Vehicle

Dimension (L×W×H)11775×2500×3700mm
Gross weight41980kg
Complete vehicle shipping mass18000kg
Seat (inc. driver)6
Max. power309kw

Chassis

ManufacturerSinotruk HOWO
ModelZZ5437V4667D5
Drive type8x4
CabFlattop metal forward type
Wheelbase1800+4600+1350mm
Max. speed95km/h
Min. turning diameter<30m
Approach angle16°
Departure angle13°
Engine typeInline six-cylinder, water inter-cooling, direct injection diesel engine
ModelD12.42—40
Max. power309kw
Max. torque1820N•m
Emission standardChina IV
ClutchPull, dry
Gearbox modelManual, 10 forward gear

Cab

StructureDouble row, four-door, lengthen cab
Seat2+4
EquipmentExcept the original equipments. There is a storage box with cover under the seat, embedded 4x9L air breathing apparatus fixed mount in the seats

Fire pump

ManufacturerDarley
ModelPSP1500
Flow80L/s
Pressure1.0MPa
Water diversionElectric primer pump
Max. vacuum degree≥85 kPa
Priming time≤80s
Air foam proportionerPH48x2
TypeManual
Mixing ratio3%, 6%

Side girder

Features: made of welding high quality profiled steels, two longitudinal beams through a plurality of beam intensity bearing joint of high strength bolt connection. The side beam is installed, use girder structure, to ensure that the original car beam of uniform stress, improve the service life of the girder, and reduce deformation caused by components twisted.
