| Brand Name: | Benz |
| Model Number: | JDX5320JXFYT32/BG |
| Certification: | ISO9001,CCC |
| Place of Origin: | SHANGHAI,CHINA |
| MOQ: | 1 unit |
| Price: | Factory price, Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300 units/year |
| Delivery Time: | 90 days after sign contract |
| Packaging Details: | Exporting standard package or customized packing |
| Drive: | 6x4 |
| Overall: | 10720×2500×4000 |
| Wheel base: | 4500+1350 |
| Ladder section: | 4 |
| Seat: | 2+4(incl. driver) |
| Max height: | 30.7 |
| bucket load: | 4000 |
| Max speed: | 100km/h(Electronic speed limit) |

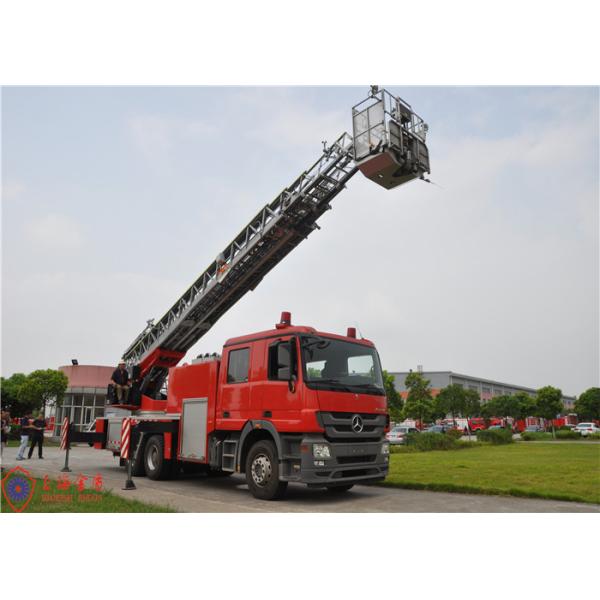

| Product name: | Aerial ladder fire fighting truck |
| Company Info. |
| Shanghai Jindun special vehicle Equipment Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Main features:
Expand faster: Compared to other domestic and imported ladder trucks, with the fastest expansion rate;
Advanced technology: exclusive for rotating compass leveling technology in China, with features of a large adjustment range, short adjustment time, and reliable adjustment;
Performance and reliability: chassis, ladders, pumps, fire monitor and other major equipment are imported from other countries, environmental adaptability, lower failure rate;
Vehicle
| Item | unit | parameter |
| Dimensions (length x width x height) | mm | 10720×2500×4000 |
| Front suspension | mm | 1440 |
| Wheelbase | mm | 4500+1350 |
| Rear suspension | mm | 2950 |
| Extension | mm | 250 |
| Wheel distance | mm | Front 2050 rear 1800 |
Ladder performance
| Item | unit | parameter |
| Ladder section number | 4 | |
| Ladder length | ||
| Full contraction | m | 9.65 |
| Full extension | m | 30.05 |
| Stand up | ◦ | -10~75 |
| angle of rotation | ◦ | 360 |
| Max height | m | 30.7 |
| Maximum amplitude | m | 18.2 |
| Lifter load | N | 1800 |
| Working bucket load | N | 4000 |
Shanghai Jindun Special Vehicle Equipment Co., Ltd. introducesladder technology from Japan Morita Corporation, and combines with our own fire truck development capabilities, which developed YT32 / BG type ladder truck with independent intellectual property rights. This product combines high rescue and low fire fighting functions, which is a new generation of fire truck products.

FAQ:
1. Q:Are you a factory or a trade company?
A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.
2. Q:Where is your factory located?
A:We are located in Shanghai Province,China.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
Any other questions, please do not hesitate to contact with us.
|
