| Categories | DMR Two Way Radio |
|---|---|
| Model Number: | ST5XHPT |
| Modulation: | TDD-COFDM |
| Frequency: | 2.4GHz(2.402 - 2.478 GHz) |
| Transmission Range: | Air to ground 5km |
| Video Input/Output: | High Definition Multimedia Interface |
| Resolution: | 720P |
| Duplex Data: | TTL-RS232/485 |
| Weight: | Tx: 58g/Rx: 58g |
| Dimension: | 73×48×14mm |
| Place of Origin: | Shenzhen, China |
| Brand Name: | SUNTOR |
| Certification: | FCC, CE, RoHS |
| MOQ: | 1 set |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000 set/ month |
| Price: | Negotiation |

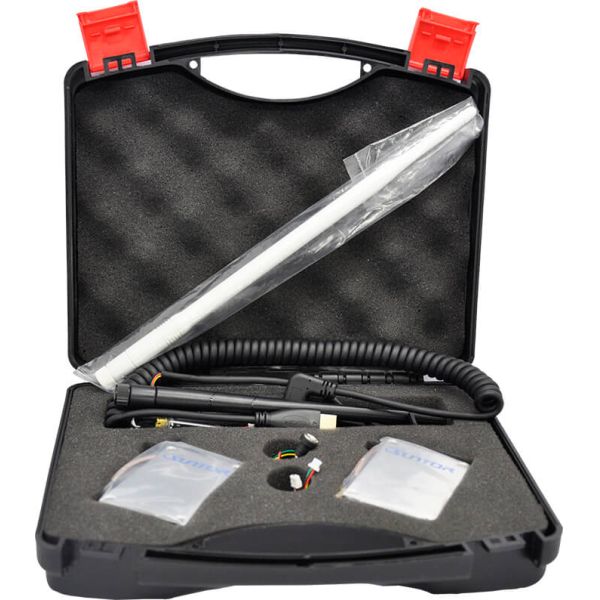

| Packaging Details: | Plastic Box |
| Company Info. |
| Shenzhen Suntor Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Economy 2.4G 5km 720P UAV Drone High Definition Multimedia Interface Video & Duplex Data Link
Description
ST5XHPT is a Economy mini High Definition Multimedia Interface Video and Data transmission COFDM system for UAV. It support HD720P video. It develops CABAC (H.265+TS) coding&decoding technology to achieve Utra-high resolution(720P), long distance(air to ground 5km) and low delay(12-25ms) transmission. The system supports (data&image) communication, adjustable video resolution, bit rate output with the TPlayer software. It can realize the soft decoding with low delay. Meanwhile this SUNTOR series products have small size, light-weight, low consumption, high stability and high sensitivity. They are suitable various environment of different application.
Features
| Frequency | 2.4GHZ(2.402-2.478GHz) |
| Wireless Fault-tolerant | LDPC FEC |
| RF Transmitted Power | 27dbm (Air to ground 5km) |
| Power Consumption | TX: 7Watts |
| RX: 5Watts | |
| Frequency Bandwidth | 2/4/6/8MHz |
| Latency | ≤12-30ms |
| Video Color Space | Default 4:2:0 optional: 4:2:2/4:4:4 |
| Antenna | 1T1R |
| Video Input/output Interface | High Definition Multimedia Interface mini TX/RX, or transform FFC to High Definition Multimedia Interface-A RX/TX |
| Video Compressed Format | H.265 +TS |
| Bit rate Adjustment | DIP or SPI2MCU |
| Encryption | WEP, WPA(PSK), WPA2(PSK), WPA+WPA2 (PSK) |
| Transmission Distance | Air to ground 5km |
| Start-up time | < 25s |
| Two-way function | Support video and duplex data simultaneously |
| Data | Support Duplex TTL RS232/485 Data Transmitting |
| Power supply | DC 7- 18V |
| Interface | 720P High Definition Multimedia Interface Mini RX x1 |
| S1 TTL bidirectional serial port x1 | |
| RF SMA | |
| Power Input x1 | |
| Indicator Light | High Definition Multimedia Interface input/output Status |
| Transmitting and receiving | |
| Video board working Status | |
| Power | |
| Temperature Range | Operating temperature:0°C ~+ 85°C |
| Storage temperature:-10°C ~+ 90°C | |
| Appearance Design | CNC technology/ double aluminum alloy shell with waterproof design |
| Dimension | 73×48×14mm |
| Weight | Tx: 58g /Rx: 58g |
|
