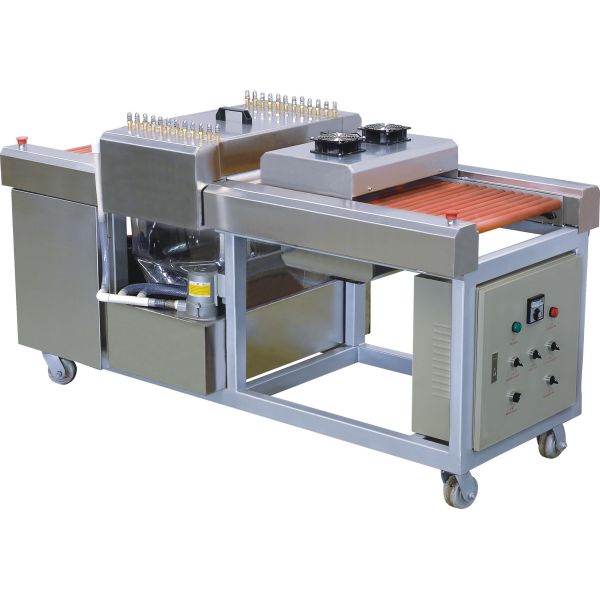

Mini glass washer QX500

I. General description:

1. QX500 Glass Washer & Drier adopts horizontal structure. It is made up of in-feed, washing, drying, and out-feed sections.

2. Four pairs of brushes, three pairs of sponge rollers and three groups of heating tubes make guarantee of reliable performance.

3. The main drive is chain-and-sprocket drive. Speed is adjusted by variable motor. They make sure the smooth conveying and easy operation.

4. All the sheet metal contacting with water are stainless steel, such as water tank and cover.

II. Technical Specifications:

1. The thickness of processing glass: 3-12mm

2. Max. processing size: 550*1000mm

3. Min. processing size: 80*80mm

4. Processing speed: 1-4m/min

5. Brush quantity: 4pairs

6. Power: 8KW

7. Size: 2800*1000*1020mm

Wayde Industry Co., Ltd. is an integrated industrial and trade enterprises, located in Shunde, Guangdong. We are specialized in glass processing and stone processing industry, such as glass edging machine, glass beveling machine, glass sandblasting machine, glass washing machine, glass drilling machine, stone profiling machine, stone edge polishing machine, glass & stone machinery tools etc.



Adhering to the customer-oriented concept, Wayde can provide a series of services in the field of glass and stone processing industry under the support of first-class techniques and unique services so as to satisfy different requirements of customers. Our extensive knowledge of the industry, including raw materials, process and finished products, makes sure reliability, cost optimization and on-time delivery to our customers. That’s why our products have been well accepted by the customers all over the world.



Wayde, your reliable and best partner from China in glass and stone processing industry!
