| Categories | Duplex Stainless Steel Pipe |
|---|---|
| Brand Name: | TOBO |
| Model Number: | TOBO-38 |
| Certification: | ISO |
| Place of Origin: | China |
| MOQ: | 1 meter |
| Price: | 5usd per kg |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500ton per month |
| Delivery Time: | 5-35days |
| Packaging Details: | 1.Wooden Cases, for super duplex seamless stainless steel pipe&tube 2.wooden or steel pallet plastic bag for super duplex seamless stainless steel pipe&tube 3.as per customers requirement for super duplex seamless stainless steel pipe&tube |
| product name: | TOBO Duplex Stainless Steel Pipe |
| Material: | 304, 304L, 316, 316L, 321,347H, 321H, XM15, 312 |
| Outer Diameter: | 0.5 - 48 inch |
| Welding Line Type: | Seamless |
| Standards: | ASTM, AISI, DIN, EN, GB, JIS |
| Technical: | Cold Drawn/Cold Pilgered/Hot Rolled |
| Company Info. |
| TOBO STEEL GROUP CHINA |
| Verified Supplier |
| View Contact Details |
| Product List |
Packaging Details
In bundles or according to requirements of customers
Delivery Time
7~25 Days after received deposit

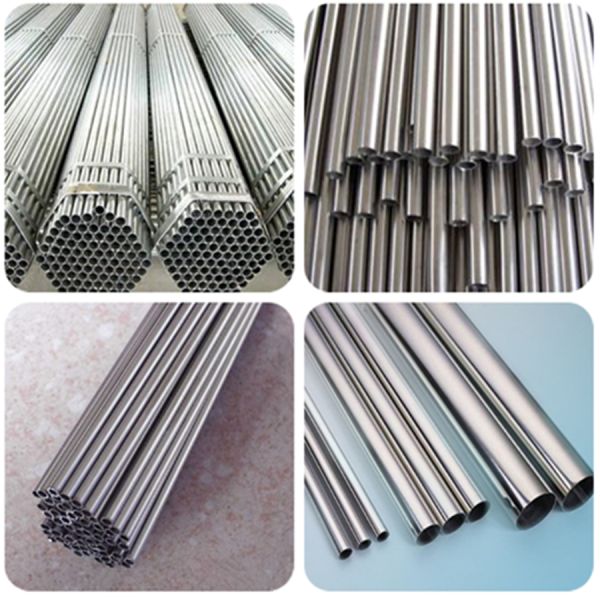

GB standard popular and good price super duplex stainless steel pipe a790 s32760
| 1. Tolerance | 1:Outerdiameter:+-0.05mm 2:Thickness:+-5% 3:Length:+-0-4.5mm |
| 2. Wall thickness | 0.3-11 mm |
| 3. Material | 201, 202, 301, 303, 304, 304L, 316, 316L, 321, 310S, 309S, 316TI, 317, 317LN, 347, 347H, 321H, XM15, 312, etc |
| 4. Length | 6 meters (as per customers' requests) |
| 5. Outside diameter | 13-310 mm |
| 6. Surface | Pickled and annealed, polished or as requested |
| 7. Application | Food industry, oil industry, chemical industry, construction field,medicine, aviation |
| 8. delivery time | 7-23 days after got the deposit |
| 9. Specification | According to customers'requests |
| 10. Processing | Cold Drawn/Cold Pilgered/Hot Rolled |
| 11. Packing | In bundles, with plastic caps in two ends or as requested |
| 12. Size | can be customized |
| 13.payment term | 30% deposit, 70% TT after receiving the copy of the B/L, or 70% irrevocable L/C at sight |
| 14. Test | ISO, MTC will be sent with shipment |
Standard: DIN 1629
Grade: St37, St52, St42, STB42
Thickness: 2 - 80 mm
Shape: Round
Outer Diameter: 15 - 914 mm
Place of Origin:Shanghai China (Mainland)
Secondary Or Not: Non-secondary
Application: Fluid Pipe
Technique: Hot Rolled
Certification: DIN
Surface Treatment: painting
Special Pipe: DIN Pipe
Alloy Or Not: Non-alloy Or Alloy
Brand: TOBO
Range: seamless, seam
Producing: Hot rolled, cold drawn
Packing: painted, caps on ends, BE
TOBO PIPE APPLICATION: FLUID, OIL DRILLING, CHEMICAL
OUTPUT: 1000TON/MOUTH
Packaging & Delivery Packaging Detail: PAINTED, BE, CAPS ON ENDS
Delivery Detail: 15-30 DAYS
Specifications
1. Third party inspection is available
2. Antirust: For 2 years
3. Delivery: ABOUT 30day
1.Certification:DIN
2.Specification:2mm-80mm*15mm-914mm
Brand name:TOBO-GROUP
DIN1629
Connection:Butt-welding
OD:15mm-914mm
Wall thickness:2mm-80mm(SCH10-XXS)
Length:4m-13m
Material/Grade
DIN
DIN17175 ST35.8 / ST37 /ST45-8
DIN1626 ST42/ ST37-2/ST52-3
DIN1629 ST52/ST35/ST45//ST52-4/ST55
Application
Natural Gas, Water, Petroleum , Electric power plant and Oil
industry
Production Description
1) Precision pipe Images, Usage and Standard
Usage: Hydraulic Pipe, Fluid Pipe, physical construction, hydraulic device, automobile parts, Steel sleeve, bearing, hydraulic cylinder, Pneumatic cylinder and hydraulic pipe
Standard: ISO, JIS, GB, DIN, ASTM, API
2) Drawing of Precision Pipe
3) Product Size Specification Table (mm) (Blue Area)
Remark: We also produce customized sizes out of this list
4) Chemical composition
Chemical composition of precision pipe in frequently used grade
| Standard | Grade | Chemical composition (%) | ||||||||||||
| C | Si | Mn | S | P | Cr | |||||||||
| GB/T699 | 10# | 0.07~0.13 | 0.17~0.37 | 0.35~0.65 | ≤0.035 | ≤0.035 | ||||||||
| GB/T3639-2000 | 20# | 0.17~0.23 | 0.17~0.37 | 0.35~0.65 | ≤0.035 | ≤0.035 | ||||||||
| GB3077-88 | 35# | 0.32~0.39 | 0.17~0.37 | 0.35~0.65 | ≤0.035 | ≤0.035 | ||||||||
| 45# | 0.42~0.50 | 0.17~0.37 | 0.50~0.80 | ≤0.035 | ≤0.035 | |||||||||
| 40cr | 0.37~0.44 | 0.17~0.37 | 0.50~0.80 | ≤0.035 | ≤0.035 | 0.08~1.10 | ||||||||
| 25Mn | 0.22~0.29 | 0.17~0.37 | 0.70~1.00 | ≤0.035 | ≤0.035 | ≤0.25 | ||||||||
| 37Mn5 | 0.30~0.39 | 0.15~0.30 | 1.20~1.50 | ≤0.015 | ≤0.020 | |||||||||
5) Mechanical properties
Mechanical properties of common precision pipe
| Standard | Grade | Designation (%) | ||||||||||||
| Cold finished (hard)(BK) | Cold finished (Soft) BKW | |||||||||||||
| UTS(Ultimate Tensile Strength) | percentage elongation after fracture | UTS(Ultimate Tensile Strength) | percentage elongation after fracture | |||||||||||
| σ b (Mpa) | δ 5(%) | σ b (Mpa) | δ 5(%) | |||||||||||
| GB/T3639-2000 | 10# | ≥410 | ≥6 | ≥375 | ≥10 | |||||||||
| GB3077-88 | 20# | ≥510 | ≥5 | ≥450 | ≥8 | |||||||||
| 35# | ≥590 | ≥4 | ≥550 | ≥6 | ||||||||||
| 45# | ≥645 | ≥4 | ≥630 | ≥5 | ||||||||||
| 40cr | ≥784 | ≥12 | ||||||||||||
| 37Mn5 | ≥784 | ≥12 | ||||||||||||
Remarks:
Cold Finished (Hard): Tubes do not undergo heat treatment following the final cold forming and, thus, have a rather high resistance to deformation
Cold Finished (Soft): The final heat treatment is followed by cold drawing involving limited deformation. Appropriate further processing allows a certain degree of cold forming (e.g. bending, expanding)
6) Product Application Industry
Application Field:
Mechanical processing, machinery manufacturing, automobile
7) Quality Control
A. Advanced Production Equipment
B. Skill-full and Qualfied Workers, Training and Testing before Working
C. Strictly Qualtity Control System
8) Packing & Shipping
A) Packing Method
Small size in bundles, big size in bulk, with plastic cap to protect both ends, seaworthy packaging or as per customer's requests.
B) Shipping Way
As per customer's request.
Usually by Sea, by Air, by Train or River-and-Sea Coordinated Transport.
|
