Name: SAL403 150750kg single point aluminum load cell compatible to Vishay 1260 Zemics L6W
Brand: SATIS
Price: 20 USD

Home > Pneumatic & Hydraulic >

SAL403 150-750kg single point aluminum load cell compatible to Vishay 1260 Zemic's L6W

Categories	load cells
Brand Name:	SATIS
Model Number:	SAL403 150-750kg
Certification:	OIML
Place of Origin:	CHINA
MOQ:	50 units
Price:	USD 20-30 per unit
Payment Terms:	T/T
Supply Ability:	3000 units per month
Delivery Time:	30 working days
Packaging Details:	netural carton

Contact Now

Add to Cart

Company Info.

SATIS CO., LIMITED

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

SAL403 150-750kg single point aluminum load cell compatible to Vishay 1260 Zemic's L6W

Features

Capacity: 150-750kg
High accuracy
Aluminium construction
OIML TC number: TC8187
Single point, suitable for electronic pricing scales, platform scales and other electronic weighing device
Max. platter size: 600 x 800mm

Specification

Maximum capacity (Emax)	kg	150, 200, 250, 300, 500, 750
Rated output (Cn)	mV/V	2,0 ± 0,2
Accuracy	-	OIML C3
Max. number of intervals (nLC)	-	3000
Creep (30 minutes)	±ppm	166
Zero balance	±%FS	3
Temperature effect on zero balance (TCO)	±ppm/°C	17.5
Temperature effect on sensitivity (TC Span)	±ppm/°C	17.5 (+20~+40°C); 11.7(-10~+20°C)
Safe overload	%FS	150
Ultimate overload	%FS	300
Nominal temperature range	°C	-10 ... + 40
Operating temperature range	°C	- 20 ... + 50
Input impedance	Ω	404 ± 10
Output impedance	Ω	350 ± 3
Insulation impedance	MΩ	≥ 2000
Recommended excitation	V DC/AC	10
Excitation maximum	V DC/AC	15
Material	-	Aluminium
Protection class	-	IP65
Cable	-	Length: 2m or customize special length to order; Diameter: Φ 5mm

Wiring

The load cell is provided with a shielded 4 or 6 conductor cable. The shield will be connected or not connected to the load cell according to customer’s preference.

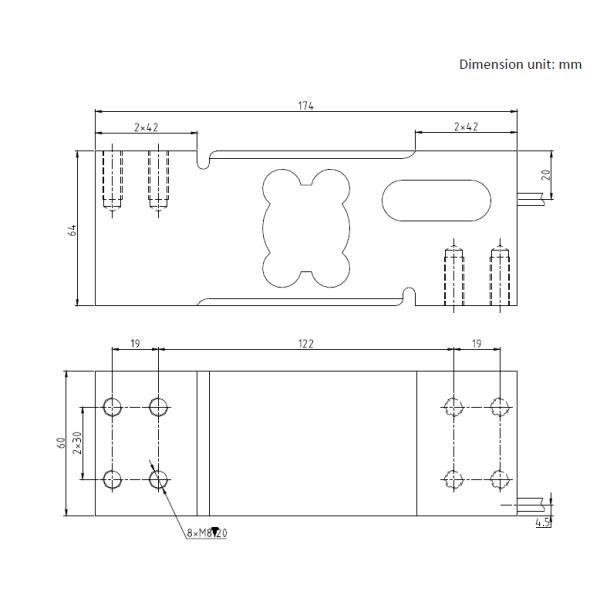

Dimension
