| Categories | Hammer Rock Breaker |
|---|---|
| Brand Name: | JISAN |
| Model Number: | JSB200 |
| Certification: | CE, ISO |
| Place of Origin: | YANTAI,CHINA |
| MOQ: | 1 set |
| Price: | Negotiation ( EXW , FOB or CIF price ) |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 800 Sets per year |
| Delivery Time: | 5-7 Workdays |
| Packaging Details: | Export Wooden Cases or Pallets |
| Flux: | 15-25 L/Min |
| Impact Rate: | 700-1200 Bpm |
| Suit Excavator: | 1.5-3 Ton |
| Tool Type: | Moil, Wedge, Flat, Blunt, Conical type Chisel |
| Tool Diameter: | 45 mm |
| Warranty: | 14 Months |
| Company Info. |
| JISAN HEAVY INDUSTRY LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

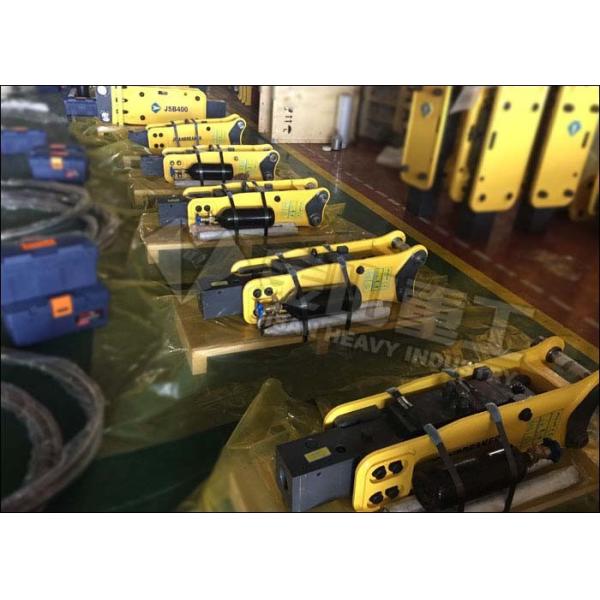

CE Certified Excavator Rock Hammer Breaker For Mini Sunward Excavator SWE18
Hydraulic breaker's power source is excavators,loaders or pumping
stations' pressure.It can break stones and rocks more effectively
in the engineering construction.Selection of hydraulic breaker
principle is according to the operation environment and excavator
type.
Description
1. Selected raw material – high quality heavy duty wear resistant
steel
2. Hydraulic-gas system, increase stability
3. High-quality and durable wear parts
4. Advanced manufacturing facilities, introduced from Korea
5. High energy and impact frequency (high performance)
6. High-performance optimized hydraulic unit
7. Low maintenance, less breakdown, long using life
8. Fully enclosed housing with robust structure

Specification
| Model | Weight (Kg) | Length (Mm) | Pressure (kg/cm2) | Flux (L/Min) | Rate (Bpm) | Hose (Inch) | Chisel (Mm) | Suit (Ton) |
| JSB200 | 100/120 | 1100 | 90-120 | 15-25 | 700-1200 | 1/2 | 45/53 | 1.2-3.0 |
| JSB400 | 298 | 1347 | 110-140 | 25-45 | 500-900 | 1/2 | 68/70 | 3.0-5.5 |
| JSB600 | 421 | 1528 | 110-160 | 30-45 | 500-800 | 1/2 | 75 | 4.0-7.0 |
| JSB800 | 577 | 1920 | 120-170 | 45-85 | 400-700 | 3/4 | 85 | 7.0-14 |
| JSB900 | 973 | 2260 | 150-170 | 80-120 | 400-700 | 3/4 | 100 | 11-16 |
| JSB1600 | 1855 | 2695 | 160-180 | 120-160 | 400-700 | 1 | 135 | 19-26 |
| JSB1900 | 1989 | 2810 | 160-180 | 130-170 | 400-600 | 1 | 140 | 19-26 |
| JSB2800 | 2420 | 2895 | 160-180 | 150-190 | 350-500 | 1 | 150 | 27-38 |
| JSB3500 | 2750 | 3152 | 160-180 | 170-220 | 250-400 | 1 | 155 | 28-40 |
| JSB4500 | 3160 | 3310 | 160-180 | 200-300 | 250-350 | 1.25 | 165 | 36-45 |
| JSB5000 | 4210 | 3400 | 160-180 | 210-290 | 200-350 | 1.25 | 175 | 40-55 |
| JSB5500 | 4720 | 3400 | 180-220 | 220-300 | 200-250 | 1.25 | 185 | 50-60 |
| JSB6000 | 4910 | 3420 | 180-220 | 230-320 | 180-200 | 1.25 | 190 | 55-65 |
| JSB6500 | 6100 | 3700 | 190-230 | 360-450 | 120-200 | 1.25 | 210 | 65-100 |

Application
1. mining—mining, second-time breaking
2. metallurgy—clearing slag, demolition of furnace and foundation
3. road—repairing, breaking, foundation work
4. railway—tunneling, demolition of bridge
5. construction—demolition of bulinding and reinforced concrete
6. ship repairing—clearing clam and rust from the hull
7. others—breaking frozen mud
Certification
Jisan Heavy Industry Ltd is a leading manufacture of hydraulic
breaker and excavator attachments. The main products have passed CE
and ISO9001 certification. We have already established over 120
agencies in the world. As one of the largest excavator attachments
manufacture in China, we can supply all kinds of attachments to
satisfy clients different demand.
