| Categories | Stainless Steel Corrugated Pipe |
|---|---|
| Brand Name: | ZYD |
| Model Number: | ZYD-BWG220 |
| Certification: | CE |
| Place of Origin: | NINGBO |
| MOQ: | 1000PCS |
| Price: | USD1 |
| Payment Terms: | T/T |
| Supply Ability: | 100000CTNS/MONTH |
| Delivery Time: | 10DAYS |
| Packaging Details: | CARTON BOX |
| Pipe material: | 304 |
| Screw size: | G1/2" |
| Screw material: | Brass/S.S |
| Pipe dia.: | 16mm |
| Seal pad: | EPDM |
| Working pressure: | Max 1.6Mpa |
| Pipe length: | From 10cm-200cm |
| Usage: | Water, Gas, Oil and other liquid supply. |
| Working temperature: | -20-120℃ |

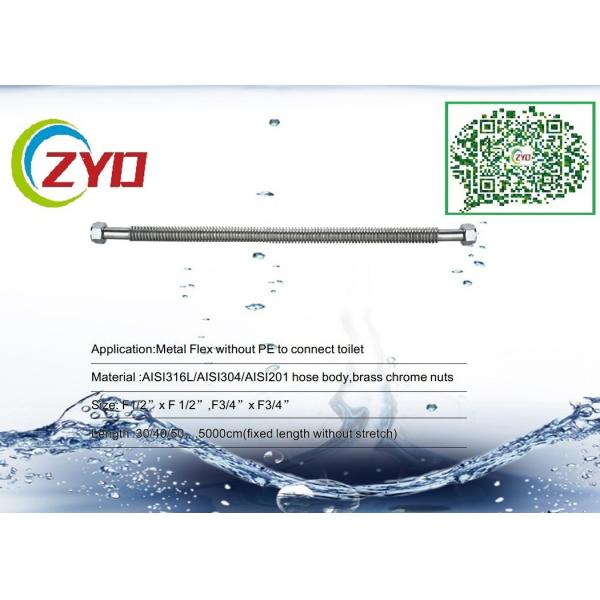

304 stainless steel bellows Corrugated Pipe Water Heater Metal
Hoses 1/2" High Pressure Explosion-proof Connecting Pipe
| Description: |
High flexibility, withstands corrosion, durable, reliable, safe, withstands high and low temperatures.
Material:Stainless Steel 304 and painted steel
Size: 1/2"
Woring Pressure:3.5kpa
Thickness:0.2~0.25mm
| Specification: |
| Straight Length Capacity—Btu Per Hr(w) 0.64SG.,1000Btu Per Cu Ft (37.2MJ Per Cu Meter )Gas at 0.5inch Water Column(124Pa)Pressure Drop | ||||||
| Nominal connector series (ID.inches) | 12'' | 24'' | 36'' | 48'' | 60'' | 72'' |
| 1/4'' | 48,000 | 40,000 | 33,400 | 28,300 | 24,900 | 23,100 |
| 3/8'' | 102,000 | 85,000 | 71,100 | 60,500 | 53,200 | 49,100 |
| 1/2'' | 180,000 | 150,000 | 125,000 | 106,000 | 93,200 | 86,000 |
| 3/4'' | 290,900 | 255,900 | 215,000 | 197,400 | 173,900 | |
| 1'' | 581,800 | 515,900 | 442,700 | 398,900 | 347,800 | |
Note:when using 0.2 inch water column pressure drop,capacity can be determined by multiplying the figures above by 0.632 | ||||||
| Prodiction line: |
| Application: |
It can be used to convey most kinds of fluid those are gaseous,
such as nature gas, air, steam, etc. and liquid such as water,
oils, chemicals, etc.,which have functions to absorb reciprocated
motion, thermal expansion, vibration, and misalignment of piping.
| Packing and delivery: |
Single package size:100X100X100 cm
Single gross weight:0.40KG
Package Type:Carton
|
