| Categories | Fiber Cable Joint Box |
|---|---|
| Brand Name: | YINGDA |
| Model Number: | FDB0216F |
| Certification: | ISO |
| Place of Origin: | china |
| MOQ: | 200pcs |
| Price: | negotiable |
| Payment Terms: | T/T, Western Union |
| Delivery Time: | 1week |
| Packaging Details: | 1pc/box, 4pcs/carton |
| material: | PP |
| color: | black |
| dimension: | 385*245*130mm |
| cable exit: | 16outputs for drop cable |
| cable entry: | 1uncut ports, 2round ports |
| cable diameter: | 17.5mm, 4mm or 7.5mm drop cable |
| box type: | splitter closure |
| adapter: | 16pcs SC |
| splitter`: | mini module splitter 1x16 |
| Company Info. |
| YINGDA TECHNOLOGY LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |
1x16 Fiber Optical Splitter Box 16Outputs SC/APC PP Inline Closure 96Fibers Buckle Type for FTTH
FDB0216F is designed to seal without screws. The compact size and flip-over cover bring easy operation as well as complete function.
The splice trays are jointed with a hinge at one side, which makes the operation in each tray easier. It is designed to prevent from operation damage.
Specification
| Dimension(mm) | 380×245×130 | Max. capacity(Single fiber) | 16 |
| Weight(kg) | 4.5~5 | Sealing type | Mechanical |
| Cable ports | 1 input cable port for un-cut cable from diameter from10~17.5mm. 2
output cable ports for cable diameter from 8~17.5mm. 16 output cable ports for cable diameter less than 4mm. | Single splice tray capacity(Single fiber) | 16 |
| Splice tray quantity | 2pcs |
FRONT VIEW SIDE BUKCLE VIEW

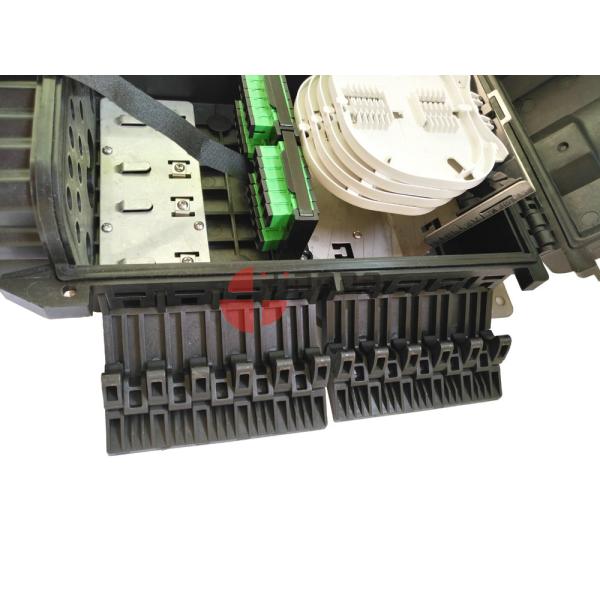

INTERNAL VIEW -1 INTERNAL VIEW -2
Parts list
Main kits
| S/N | Description | Quantity | Note |
| 1 | Lid | 1 | 337(L)×242(W)×63(H)mm. |
| 2 | Base | 1 | |
| 3 | Sealing ring | 1 | Box sealing |
| 4 | 8202 sealing parts | 16 | Sealing cable ports |
| 5 | Splice tray | 4 | For cable splicing and storage |
| 6 | Splice tray cover | 1 | |
| 7 | Splice tray bandage | 1 | Fixing several splice trays |
| 8 | Fastener bolt | 2 | Fixing lid and cover of closure |
| 9 | Buckle | 4 | Fixing lid and cover of closure |
| 10 | Tight nuts | 16 | Sealing soft cable ports |
| 11 | Tight tool | 1 | Special for tight the nuts |
| 12 | Cable fixing panel | 1 | Fixing un-cut cable |
| 13 | Adaptor installation panel | 4 | An adaptor panel for 6 SC simplex adaptors |
| 14 | Splice tray bracket | 1 | Install 4 splice trays |
| 15 | Top cover stopper | 1 | Limit top cover |
| 16 | Plastic nuts | 2 | Fixing cable |
Standard parts
| S/N | Description | Quantity | Note |
| 17 | Wall mounting kit | 1 | For wall mounting |
| 18 | Expansion anchor bolt | 2 | Parts of the wall mounting kit |
| 19 | Hexagon bolt | 2 | Parts of the wall mounting kit |
| 20 | Nylon tie(3*120mm) | 12 | Fixing cable |
| 21 | Fusion sleeve(Φ1.0*60mm) | According to the fiber cores. | Cable splicing |
| 22 | 0.2m coil tube | 1 | Protect the fiber |
| 23 | Insulation tape | 1 | Accessorial fixation |
| 24 | 0.5m EVA tube | 1 | Protect fiber |
| 25 | Drier | 1 | |
| 26 | M6 internal hexagonal wrench | 1 | Tool to open the box |
| 27 | 14# grommet | 2 | For cable dia. From 12-17.5mm |
| 28 | 41# grommet | 2 | For cable dia. From 8-12mm |
| 29 | Plastic plug | 4 | Seal the cable port |
| 30 | Iron spanner | 1 | Tool |
Optional parts
| S/N | Description | Quantity | Note |
| 25 | Pole mounting kit | 1 | For pole mounting |
| 26 | Valve | 1 | Testing sealing performance |
|
