Black Firestone W01-358-9541​​ Truck Air Springs Bag For Kenworth C81-1005 - Airglide 690

Firestone W01-358-9541​​ Truck Air Spring Bag For Kenworth C81-1005 - Airglide 690

Product Information

GUOMAT NO. : 1T9541

VEHICLE TYPE: Truck

POSITION: The Floating Bridge

OEM REFERENCES

FIRESTONE 1T15LA-0 / 1T15LA 0 / 1T15LA0
W01 358 9541 / W01-358-9541 / W013589541
FIRESTONE 1T15KW-0 / 1T15KW 0 / 1T15KW0
W01 358 9541 / W01-358-9541 / W013589541
Top Plate Number:3174
Piston Number:9569
CONTITECH 9 9-10 P 861 / 99-10P861 / 99-10P 861
Contitech 66111
Airtech 137422 / 39541 CPP
Automann AB1DK20H-9541

VEHICLE OEM REFERENCES

KENWORTH C81-1005
Kenworth Number:C81-1005
Kenworth C811005
Airglide 200 05/05/03 or later
Airglide 460
Airglide 690

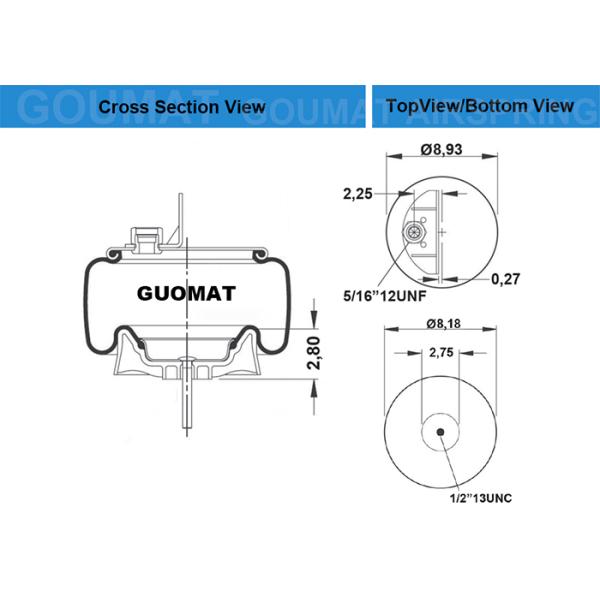

Technical Parameters

Extended Height:11.80
Compressed Height: 6.25
Top Plate Width:9.00
Piston Width:8.18
Assembly Weight: 11.5 lbs
Design Height: 6-7 inches
Minimum Jounce Height: 3.75 inches
Maximum Rebound Height: 11.5 inches
Loading Capacity at 20 psig: 1,320 lbsf
Loading Capacity at 60 psig: 3,960 lbsf
Loading Capacity at 90 psig: 5,940 lbsf
Natural Frequency: Hz
Maximum Diameter: 11.7 inches
Material Type: N/A
Operating Temperature: 57Co to -54Co
