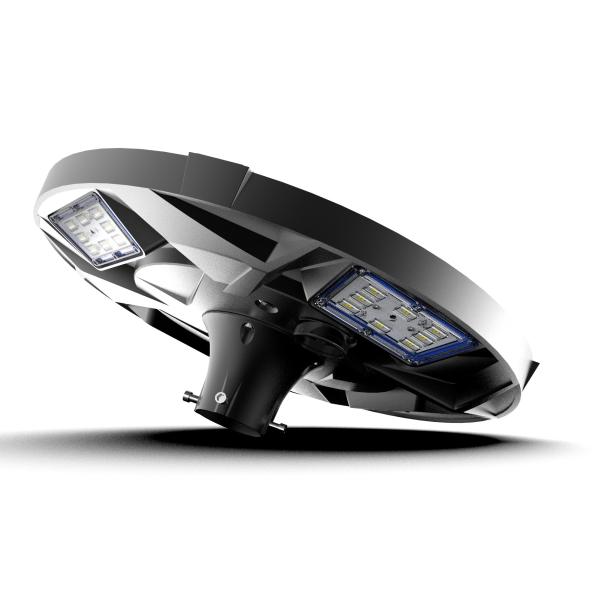

Ip66 Waterproof Outdoor 20W 30W Solar LED Street Garden Light With
Monocrystalline Silicon
01.Features of Led Street Light With Solar Panel
1. The Mono-crystalline solar panel,LED lights,lithium
battery,intelligent controller integrated Aluminum Alloy shell.
2. It used of lithium iron phosphate battery,fight the high
temperature,keep long life.
3.It used of alloy material as the main structure,with good rust
prevention,corrosion protection
4. When the products with optically controlled microwave induction
infrared sensor, automatic adjustment of intelligent power on rainy
days, extend rainy days.
5. The wireless remote control setting device,adjustable lighting
time ,lighting power ,automatic detection of battery voltage,read
light power parameters,a human body induction function,as long as
people go through when full power lighting,no automatic power down
alf, restore energy saving mode.
6. time control + light sensor control+ motion sensor control
02 Specification of Integrated Solar Led Street Light
| Par NO. Parameter | LY-GL10020XX | LY-GL10030XX |
| Battery | 18650 lithium battery 12V 20Ah/30Ah |
| Beam angle | 140° |
| Pole diameter | 60/76/83mm |
| Light output | 20W | 30W |
| Luminous efficiency (lm) | ≥160lm/w |
| Solar panel | 30W /18V monocrystalline silicon |
| CRI | >70 |
| Chip Brand | LUXEON 3030 |
| Operating time | Full power >12 hours ,Intelligent mode 3-4 days |
| Control Mode | MPPT Control+Motion Sensor |
| Installation height | 3~5M |
| Housing | All In One Die Casting Aluminum,Eesy to open and Installation |
| Optional | AC/DC Hybrid System |
| Warranty | 3 years |
| Certifications | CE/ROHS/IP66/IK09 |
03.Product Details Of Solar Powered Led Street Lights
LED Chips
Adopting Luxeon 3030 LED High luminous efficiency, Whole lamp
output light efficienty > 145lm/w.8% light efficiency higher
than the same type lights in the market.
MPPT Controller
Constant pressure type. Stabilize the output voltage of the storage
battery, such as constant 12V or 24V.The voltage is not adjustable,
and the current varies according to the load power

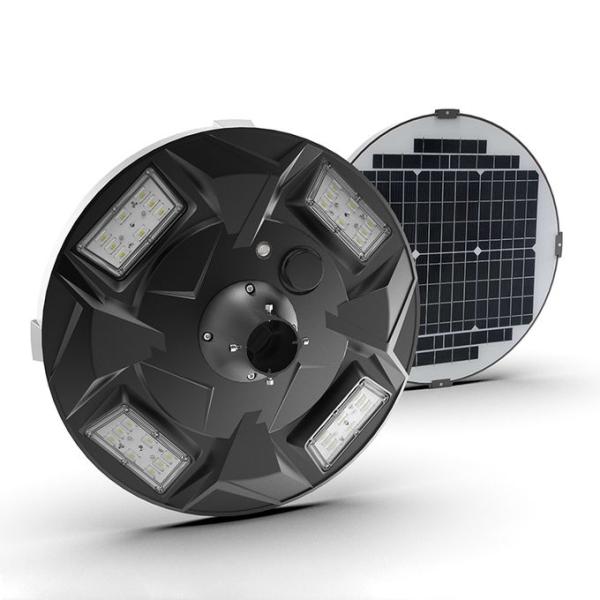

Solar Panel
30W /18V monocrystalline silicon solar panel,LED Lights, Lithium
Battery, Intelligent Controller Integrated Aluminum Alloy Shell.
Motion and light sensor built in:solar street light goes on at dusk
at 50% brightness. Can go from 50% power to full brightness when
motion is detected. Three Intelligent Modes: Bright / DIM /
Recharge.
* Bright: motion activates for lighting when motion is detected for
security light and to save battery;
*DIM: 50% lighting for saving power when no motion;
*Off/Recharge: automatically turns off in daylight and goes into
recharge mode. (working mode can be adjusted according to client's
demands).
AC/DC Hybrid system for optional:Features a DC detection function.
If DC available, the system will automatically switch to lithium
battery supply when the battery voltage rise to the DC switching
point; the system will automatically switch to DC power supply when
the battery voltage falls to the DC switching point; if DC powers
off, the system will shut off output when the battery reaches the
over-discharge point after continuous discharging.

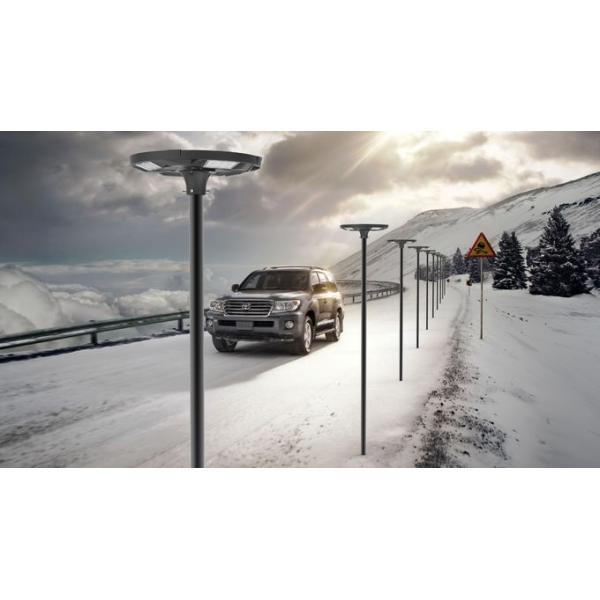

04 Application of Led Street Light Solar System
05 Package of Solar Led Street Lamps
FAQ:
1. How many watt you have for solar street light ?
---- 20w, 30w,50w
2.How is the warranty?
----We could offer 5 years warranty, and during our warranty:
1). Products returned within the warranty period must be Leyond
product number & date code.
2). Products of unknown sources or without valid marking will not
be accepted.
3). Replacement items will be sent together with customer's next
order shipment.
3.What's your delivery time?
---- For sample order our delivery time is 3-5 working days. For
General order, for about 8 working
days.
4.What kind of payment and shippmeng do you use?
----T/T,Westen Union,Paypal
----Fedex,UPS,DHL,TNT,HongKong Post,EMS or other ways of shippment.
5.Would you do OEM or ODM orders?
---- Sure, OEM and ODM orders are welcome
Welcome to contact our sales team for more informations, you will
get professional and reliable serive in a short time.
For More Information, Pls Feel Free To Contact Us
Contacts: Skay Whatsapp /Wechat ID:86+13632611614
