Custom Stainless Steel Sheath Coil Heaters Thermocouple Type J or K Spring

CE certified 230V hot runner coil heaters

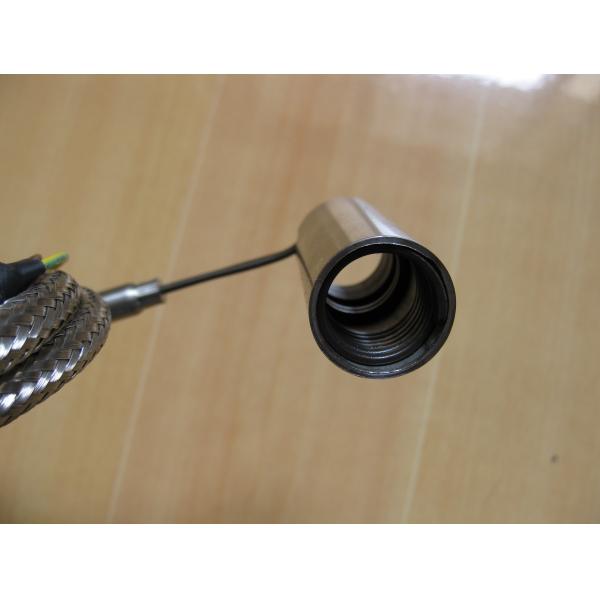

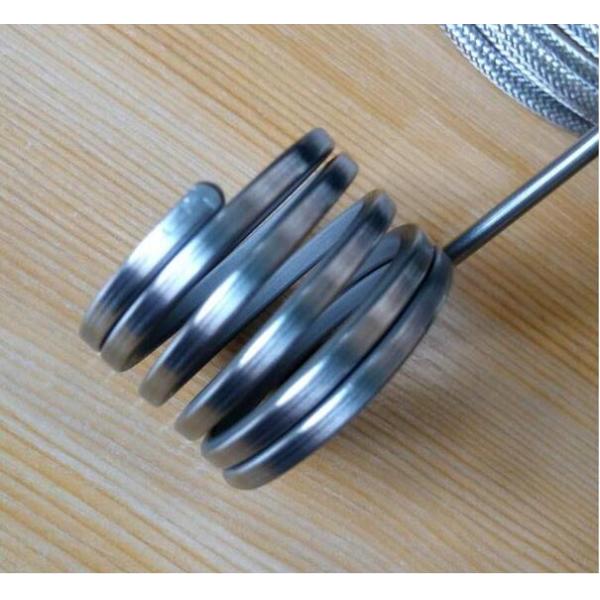

Hot runner coil heaters are made of nickel chrome resistance wire placed inside chrome nickel steel tube filled with MgO powder and compacted for faster and efficient heat transfer. The heaters are annealed to acquire malleability for bending into any shape. Hot runner heaters with built in thermocouple are also available. Hot runner bushes are produced with hot runner heaters of different cross section with inner brass and outer stainless steel cover.

Available in following cross section:

3.0 x 3.0, 3.3 x 3.30 3.5 x 3.5, 4 x 4, 4.2 x 2.2, 4.2 x 2.5 etc.

Any other cross sections can be manufactures and supplied on request.

Features of Electric Coil Heater With Stainless Steel Braided Leadwire

1. Standard sizes available with various cross section

2. Various Watt Density options available.

3. Robust Design with Choice of Terminal Exits

4. Available with built in Thermocouple

5. Designed for even heat profile.

6. Precision fit on Hot Runner Nozzles & Manifolds.

7. Highly Non-corrosive.

8. Maximum heat transfer due to more contact area.

9. Advanced Thermal Engineering.

TECHNICAL SPECIFICATION AND TOLERANCE:

APPLICATION:

1. Injection moulding machine nozzle

2. Hot Runner Nozzles & Bushings.

3. Packaging machineries

4. Hot runner Injection moulds.

5. Injection & Blow Moulding Machine Nozzles.

6. PET prefrom & Thin wall container Moulds

7. Hot runner Manifolds.

Wuhan Global Metal Engineering Co., Ltd (GME) specialize in the supply of heating elements and  temperature sensors(thermocouples & RTDs) for a vast array of industries since year 1995.

Our main products include but not limited to Coil heater, Cartridge heater, Flexible Tubular heater, Cast-in Heater, Band heater, Thermocouple, RTD’s, Thermocouple extension wire, Thermocouple connection head , Mineral Insulated thermocouple cables , thermowell, etc.

After 20 years growth, we have more than 200 employees in the factory including 50 sophisticated technicians. Our products have been exported to many countries including North America, South America, Europe, Middle East ,South Asia, etc.

More details, you can also visit our website: http://www.gmemetal.com
