| Categories | PVC Pulverizer Machine |
|---|---|
| Brand Name: | yiming |
| Model Number: | YMSMP-800 |
| Place of Origin: | zhangjiagang |
| MOQ: | ≥1 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 15 |
| Delivery Time: | 25 woke days |
| Power: | 75KW |
| Capacity: | 200-550KG/H |
| Rotating motor: | 40pieces |
| Fixed blade: | 20piece |
| Material: | SKD11 |
| Breaing: | NSK |
The buckle plate is a kind of plastic material which is widely
used, and it is ground into the pinch plate powder. It can be
widely applied to the day.
The pinch mill is a kind of equipment specially used to grind
material on the buckle:
1, turbine program, high output value, small loss.
2, integrated program, more manpower, easier to operate.
3, dust-free program, to ensure environmental protection.
4, cold, double water cooling, heating and adding material useful
to reduce equipment life.
The category of gusset plate mill more and more widely, waiting for
customers to purchase our plate mill.

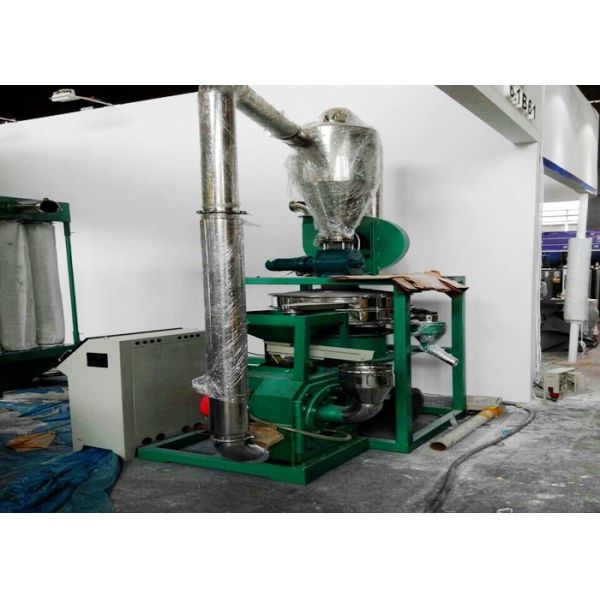

Product Description
Plastic pulverizer/plastic grinder is a prefect machine for processing and grinding thermoplastics material, such as PVC, PE, PP, EVA, PLA, ABS etc, with high output and thin powder.
The automatic plastic grinder/plastic pulverizer is disc-type plastic grinding mill series, which has the advantages of high-yield and low-power.
Usage
1, With water spray cooling system. it is suitable for processing of thermal sensitive material. With unique water spray cooling system. When the temperature of main machine is higher than setting temperature, water spray automatically until the temperature decreased normally.
Note: less of water spray into to machine will be dryed quickly which will not affect material properties. It can be installed by your requirements.
2, The raw material become power by vibration principle of ultrasonic vortex wave pressure which is from the high speed rotating of main shaft.
The material is conveyed to screening system by wind conveying. The coarse materal is back to the milling chamber automatically, then pulverized again.
3, The blade adopt high quality steel which is treated by heating.after heat treatment, with good abrasion resistance. It is suitable for continuous running.
4, This size of machine is small with compact structure, fully sealed, no dust overflow.
5, The material is transferred based on own wind pressure.
Technical Specification
| Electricity | 380V/3PHASE/50HZ | |
| Power | Main motor | 37kw |
| Fan | 4kw | |
| Main motor | Rotating motor | 24pieces |
| Fixed blade | 12pieces | |
| Feeding | Automatic vibration | |
| Colling mode | water | AIR-cooled |
| Rotating speed | minute | 3900rpm |
| Capacity | H | 80-250KG |
| Shaft | SKF | 6312 |
| Dusting | 9 bags | |
| Protection equipment | High and low voltage protection；Overload protection | |
|
