| Brand Name: | SHARP |
| Model Number: | LQ150X1LW73 |
| Certification: | ISO9001 |
| Place of Origin: | Japan |
| MOQ: | 1 |
| Payment Terms: | T/T, Western Union,paypal |
| Supply Ability: | 100 PCS / DAY |
| Delivery Time: | 2-3 working days after payment confirmation |
| Packaging Details: | Antistatic bag, Bubble Bag, Foam Box and Carton Box. |
| Series: | LQ150X1LW |
| Keywords Desc.: | SHARP 15.0" VA LCM 1024×768 350nits CCFL LVDS 20pins |
| Product Class: | Graphic LCD Display |
| Product Tags: | Color TFT-LCD,Transmissive LCD |
| Application: | Industrial Application |
| Panel Type: | a-Si TFT-LCD |
| Panel Composition: | LCM |
| Panel Size: | 15.0" |
| Resolution: | 1024×768 |
| Aspect Ratio: | 4:3 (W:H) |
| Form Factor: | Flat Rectangle Display |
| Orientation: | Landscape type |
| Active Area: | 304.1 (W) × 228.1 (H) mm (A.A) |
| Viewing Area: | 307.2 (W) × 231.1 (H) mm (V.A) |
| Outline Dimension: | 331.6 (W) × 254.76 (H) mm |
| Max. Depth: | 13 mm |
| Weight: | 1.45Kgs (Max.) |
| LC Family: | VA Family |
| Polarizer: | Transmissive |
| Brightness: | 350 (Typ.) |
| Company Info. |
| N&S ELECTRONIC CO., LIMITED |
| View Contact Details |
| Product List |
SHARP LQ150X1LW73 15.0 inch VA LCM 1024×768 350nits CCFL LVDS
20pins
LQ150X1LW73 Main Parameters
| Panel Brand : | SHARP |
| Panel Model : | LQ150X1LW73 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 15.0 inch |
| Resolution : | 1024(RGB)×768 , XGA |
| Display Mode : | ASV, Normally Black, Transmissive |
| Active Area : | 304.1×228.1 mm |
| Outline : | 331.6×254.76×13 mm |
| Surface : | Antiglare (Haze 42%), Hard coating (3H), Antireflection |
| Brightness : | 350 cd/m2 (Typ.) |
| Contrast Ratio : | 600:1 (Typ.) |
| Display Colors : | 16.2M (6-bit + FRC) |
| Response Time : | 35 (Typ.)(Tr+Td) |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 4 pcs CCFL |
| Signal Interface : | LVDS (1 ch, 8-bit) , 20 pins |
| Input Voltage : | 3.3V (Typ.) |
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the
quality.
(2). we provide high quality lcd panels for customers all over the
world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and
large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype
or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3
working days. For bulk orders, that will base on the order
quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen
replacements to our clients.
| Panel Size : | 15.0 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 85 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.099×0.297 mm (H×V) |
| Pixel Pitch : | 0.297×0.297 mm (H×V) |
| Weight : | 1.45Kgs (Max.) |
| Surface : | Antiglare (Haze 42%), Hard coating (3H), Antireflection |
| Active Area : | 304.1×228.1 mm (H×V) |
| Bezel Area : | 307.2×231.1 mm (H×V) |
| Outline Dimension : | 331.6×254.76 mm (H×V) |
| Outline Depth : | 12.5±0.5 mm |
| Holes & Brackets : | Face mounting holes (2-Φ3.2, 2-R2) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information:
salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
| LQ047K3SX04 | SHARP | 4.7" | 720×1280 |

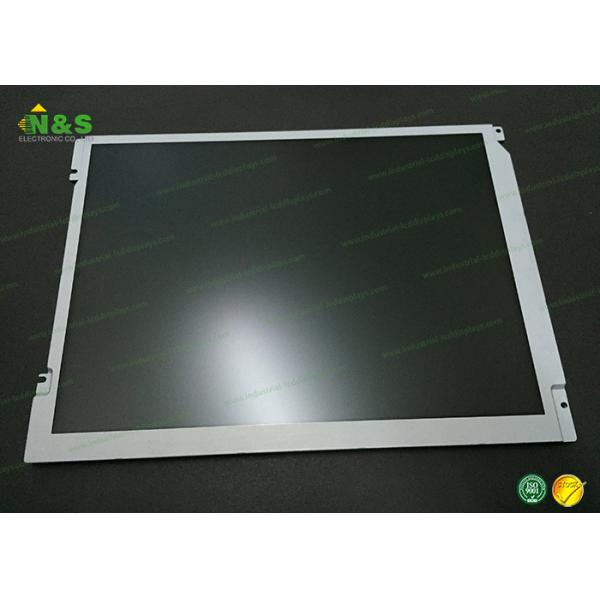

LQ150X1LW73 Picture

|
