| Categories | Malleable Iron Tee |
|---|---|
| Brand Name: | leyon |
| Model Number: | Malleable Iron Pipe Fitting Tees |
| Certification: | FM/UL |
| Place of Origin: | China |
| MOQ: | 100piece |
| Price: | Negotiable |
| Payment Terms: | Western Union, L/C, T/T, D/P, D/A, MoneyGram |
| Supply Ability: | 10000piece/week |
| Delivery Time: | 25-35days |
| Packaging Details: | 200piece/carton |
| Technique: | advanced metallurgy and processing |
| Connection: | Female |
| Standard: | 4x11/4 inch Malleable Iron Pipe Fitting Tees |
| Material: | Iron |
| Size: | 4x11/4 inch |
| Dimensions: | 84 mm |
| Company Info. |
| Leyon steel Co., Ltd |
| View Contact Details |
| Product List |

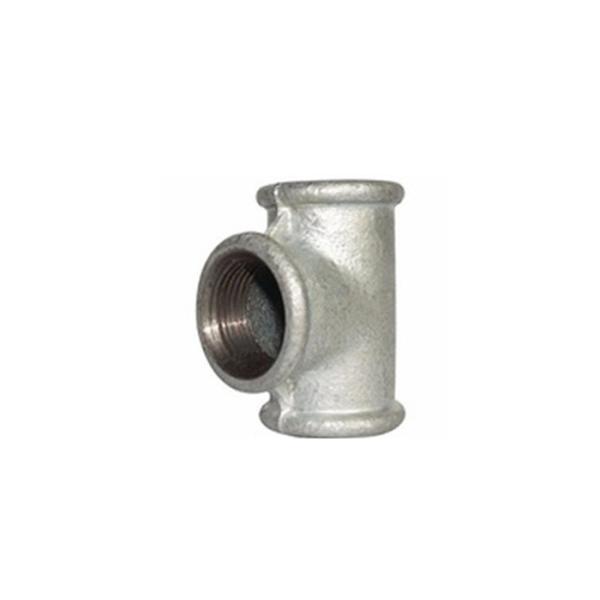

Synoptic table of Malleable Iron Pipe Fitting Tees
| Material | Malleable iron |
| Standard | Thread: ISO 7/1 |
| Dimension | ISO 49, DIN 2950,EN10242 |
| Chemical property | (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%) |
| Physical property | Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB |
| Testing pressure | 2.5Mpa |
| Working pressure | 1.6Mpa |
| Type | Beaded with ribs or banded with ribs |
| Beaded without ribs or banded without ribs | |
| Round/square | |
| Surface | Galvanized/ no galvanized |
| Color | White/black |
| Model | Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc |
| Connection | Male, Female |
| Shape | Equal, Reducing |
| Certificate | BSI,ANAB,ISO9001,FM,UL |
| Application | Suitable for pipe connect of steam, air, gas, oil and so on |
| Buyer’s drawings or designs are available | |
| Package | Cartons without pallet |
| Cartons with pallet | |
| Double woven bags | |
| Or as buyer’s requirements | |
| Delivery details | According to the quantities and specifications of each order |
| Normal delivery time is from 30 to 45 days after receiving the
deposit |
Describe of Malleable Iron Pipe Fitting Tees
Leyon is 30 years old , utilizeits experience and knowledge to provide Malleable Iron Pipe Fitting Tees solutions for buyers in every corners in Malleable Iron Pipe Fitting Tees transportation and storage field. Depend upon join handswith world top Malleable Iron Pipe Fitting Tees manufactures on high-end Malleable Iron Pipe Fitting Tees products application, Leyon could provide exceptional Malleable Iron Pipe Fitting Tees assistance for specificprojects amid special construction circumstance.
A.Does the Malleable Iron Pipe Fitting Tees use spectroscopic
analyzer ?
Q. We use spectroscopic analyzer to detect the composition of the
sample material.
A. The physical properties of the materials of Malleable Iron Pipe
Fitting Tees ?
Q.Control the annealing process strictly,enhance the physical
properties of the materials
A. No leakage of Malleable Iron Pipe Fitting Tees?
Q.Make sure there is no leakage ,Every Malleable iron Tee must
succeed in air tightness test.
A. What's the size of thread of Malleable Iron Pipe Fitting Tees ?
Q. Control the size of the thread strictly to insure its accuracy
A. Which kind of size of Malleable Iron Pipe Fitting Tees ?
Q.Outlet size is from 1/8”~8”
A.The control of Malleable Iron Pipe Fitting Tees?
Q.Good toughness with long service life.
A. Is the malleable iron tee pipe fittings control by advancd
metallurgical and
processing technology?
Q.For ensuring to control malleable iron tee pipe fittings, we use the most advanced metallurgical and
processing technology.
A. How is the service of Malleable Iron Pipe Fitting Tees?
Q.Good toughness with long service life.
| Size | Inch | 3x3/4 | 3x1 | 3x11/4 | 3x11/2 | 3x2 | 3x21/2 | 4x1 | 4x11/4 |
| mm | 80x20 | 80x25 | 80x32 | 80x40 | 80x50 | 80x65 | 100x25 | 100x32 | |
| Dim. (mm) | A | 52 | 51 | 55 | 58 | 64 | 72 | 56 | 60 |
| Size | Inch | 4x11/2 | 4x2 | 4x21/2 | 4x3 | ||||
| mm | 100x40 | 100x50 | 100x65 | 100x80 | |||||
| Dim. (mm) | A | 61 | 70 | 78 | 84 |
List of Malleable Iron Pipe Fitting Tees :
· Material: malleable iron
· Technics: casing
· Type: Malleable Iron Tee
· Connection:male&female
· size:1/8"-8"
· Standard: ANSI, BS, DIN
· Packing: wooden cases or as customers' demands
· surfacetreatment:painting galvaized or as customers' demands
|
