LTM240W1-L01 SAMSUMG LCD Panel 24.0 inch with 518.4×324 mm Active Area

Categories Samsung LCD Panel
Brand Name: SAMSUMG
Model Number: LTM240W1-L01
Certification: ISO9001
Place of Origin: korea
MOQ: 1
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 500PCS/DAY
Delivery Time: 2-3 Working Days after order confirmation
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Brand: SAMSUMG
Panel Model: LTM240W1-L01
Panel Type: a-Si TFT-LCD , LCM
Panel Size: 24.0 inch
Resolution: 1920(RGB)×1200 , WUXGA
Display Mode: PVA, Normally Black, Transmissivive
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

LTM240W1-L01 SAMSUMG LCD Panel 24.0 inch with 518.4×324 mm Active Area

LTM240W1-L01 SAMSUMG LCD Panel 24.0 inch with 518.4×324 mm Active Area


LTM240W1-L01 Specification

Panel Brand :SAMSUNG
Panel Model :LTM240W1-L01
Panel Type :a-Si TFT-LCD , LCM
Panel Size :24.0 inch
Resolution :1920(RGB)×1200 , WUXGA
Display Mode :PVA, Normally Black, Transmissive
Active Area :518.4×324 mm
Outline :569.1×368.4 mm
Surface :Antiglare (Haze 25%), Hard coating (3H)
Brightness :220 cd/m² (Typ.)
Contrast Ratio :400:1 (Min.)
Display Colors :16.7M (8-bit)
Response Time :13/17 (Typ.)(Tr/Td)
Viewing Angle :80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
Frequency :60Hz
Lamp Type :6 pcs CCFL Without Driver
Signal Interface :OpenLDI , 43 pins
Input Voltage :5.0V (Typ.)

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel ModelBrandSizeResolution
LK315T3HC1KSHARP31.5"1366×768
LQ055T3SX04SHARP5.5"1080×1920
LQ079L1SX06SHARP7.9"1536×2048
LQ079L1SX04SHARP7.9"1536×2048
LQ133M1JW08SHARP13.3"1920×1080
LQ156D1JX02SHARP15.6"3840×2160

Panel Size :24.0 inch
Dot Resolution :1920(RGB)×1200 (WUXGA)
Pixel Configuration :RGB Vertical Stripe
Pixel Density :94 PPI
Aspect Ratio :16:10 (H:V)
Form Factor :Flat Rectangle Display
Dot Pitch :0.090×0.270 mm (H×V)
Pixel Pitch :0.270×0.270 mm (H×V)
Weight :5.60Kgs (Max.)
Surface :Antiglare (Haze 25%), Hard coating (3H)
Active Area :518.4×324 mm (H×V)
Bezel Area :522.4×328.0 mm (H×V)
Outline Dimension :569.1×368.4 mm (H×V)
Outline Depth :32.0 (Max.) mm
Landscape or Portrait :Landscape type
Touch Panel :Without

Our Promise for our LCD Panels:

You will get reply within 24 Hours and:

Œ Year warranty

Œ Day shipping

‹ Return


FAQ:

1. Q: Are you a manufacturer or trading company?

A: We are a trading company who has been specializing in marketing LCD display for 6 years.

2. Q:What’s the quality of your products?

A: In visual inspection, we will make sure no damage, no scratches ,no dusty ,no flaws. And in function inspection, we make sure all functions are 100% tested ok.

3. Q: What is your after-sale service?

A: We offer 100% guarantee on our product. We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

4. Q: What is your MOQ?

A: Any quantity is acceptable for your order. And the price is negotiable for large quantity.

5. Q: When will you make the delivery?

A: We can make the delivery for the LCD panels you want within 1-3 working days after receipt of payment.

6. Q: what brand of screen could we handle?

A: We can handle LCD panels for the below brand: Samsung, LG, AUO, Sharp, NEC, Hitachi industrial screen and more.

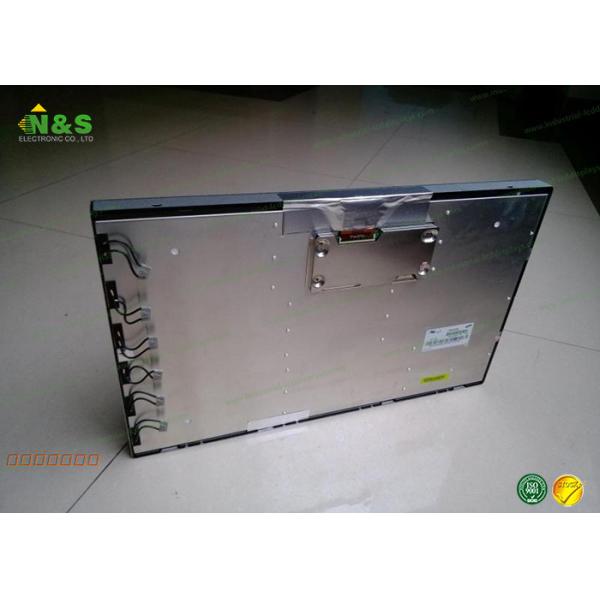

LTM240W1-L01 Picture
