| Categories | Hydraulic Hose Fitting |
|---|---|
| Brand Name: | PAISHUN |
| Model Number: | 90011, 90012 |
| Certification: | ISO 9001-2008, CE |
| Place of Origin: | Zhejiang China |
| MOQ: | 500pcs |
| Price: | Negotiated |
| Payment Terms: | T/T, L/C, Western Union, Paypal, MoneyGram |
| Supply Ability: | 60,000 pcs per month |
| Delivery Time: | Within 20 to 30 days after we receive advance payment |
| Packaging Details: | Packed in cartons and wooden cases |
| Part Number: | 90011, 90012 |
| Size of Hose: | 1/4" to 2" |
| Appearance: | Zinc galvanized |
| Color: | Silver |
| Material: | Carbon Steel 45# |
| Standard: | Yonghua |
| Technic: | Hot Forging |
| Machine: | CNC |
| Plating: | Trivalent chromium |
| Company Info. |
| Hangzhou Paishun Rubber & Plastic Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

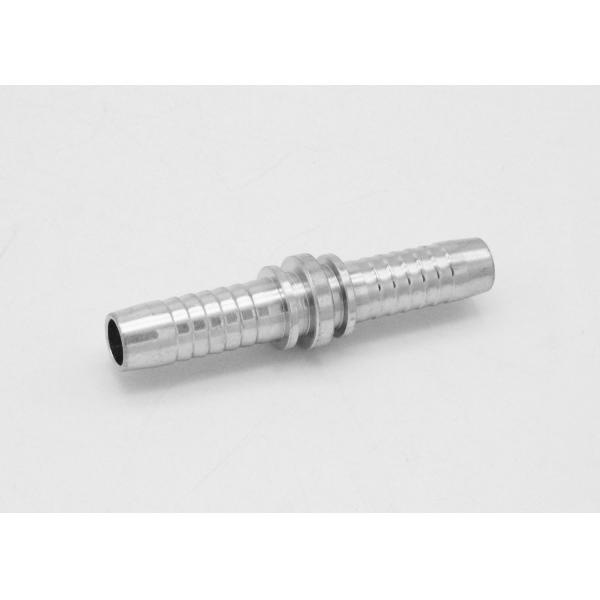

Carbon Steel Double Connector , High Pressure Hose Connector
Descrioption:
DOUBLE CONNECTOR
Standard: Yonghua
Material: carbon steel 45#
Surface: Zinc with Cr +3 plated. It passes a 96 h salt spray test

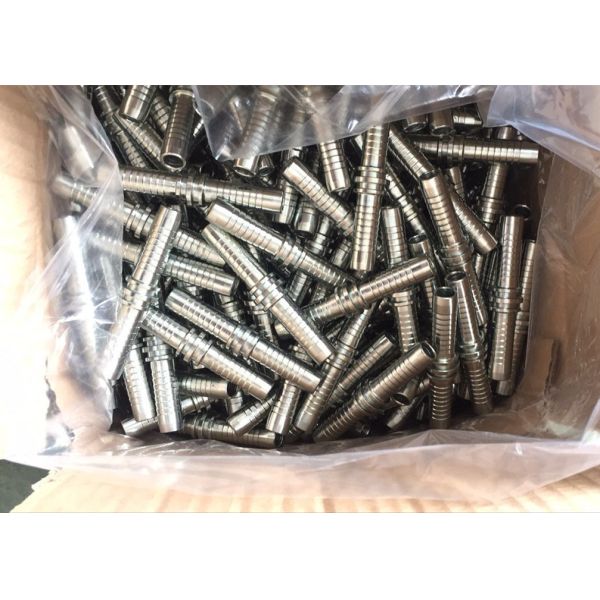

Packaging: 5 layers corrugated carton and non-fumigation wooden box
Applications:
Hydraulic Hose Fitting is widely used in the hydraulic and fluid
conveying system of machinery,
oilfield, mine, building, transportation and other industries.
Specifications:
DOUBLE CONNECTOR
| Part No. | Hose Bore | Dimensions | ||||
| DN | DASH | L | ||||
| 90011-04 | 6 | 04 | 69 | |||
| 90011-05 | 8 | 05 | 69 | |||
| 90011-06 | 10 | 06 | 73 | |||
| 90011-08 | 12 | 08 | 77 | |||
| 90011-10 | 16 | 10 | 83 | |||
| 90011-12 | 20 | 12 | 93 | |||
| 90011-16 | 25 | 16 | 114 | |||
| 90011-20 | 32 | 20 | 132 | |||
| 90011-24 | 40 | 24 | 162 | |||
| 90011-32 | 50 | 32 | 170 | |||
Note: 1 for use with braided hoses, if use with spiral hoses, hose fitting series number is 90012-**-**.
|
