| Categories | Low Bed Semi Trailer |
|---|---|
| Brand Name: | FUDENG Brand Lowbed trailer |
| Model Number: | 3 axles Lowbed trailer |
| Certification: | CE , ISO,ADR/DOT |
| Place of Origin: | Shandong China(Mainland) |
| MOQ: | One Unit Low bed trailers |
| Price: | negotiation |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 Units Per Month |
| Delivery Time: | 15 work days after 30% deposit |
| Packaging Details: | Nude Packing 3 sets stacked (by Bulk Cargo Ship, Ro-ro Ship, or Land Transportation) ; |
| Axles: | Fuwa/BPW/Chinese brand |
| Suspension: | Mechanical suspension and Air suspension |
| Load capacity: | 60-80Tons |
| Color: | Optional |
| Size: | 13mx3mx1.5m Or Customized |
| King Pin: | 2.0Inch Or 3.5Inch |
| Landing Gear: | JOST brand 28 Tons standard |
| Material: | Q345B carbon steel |

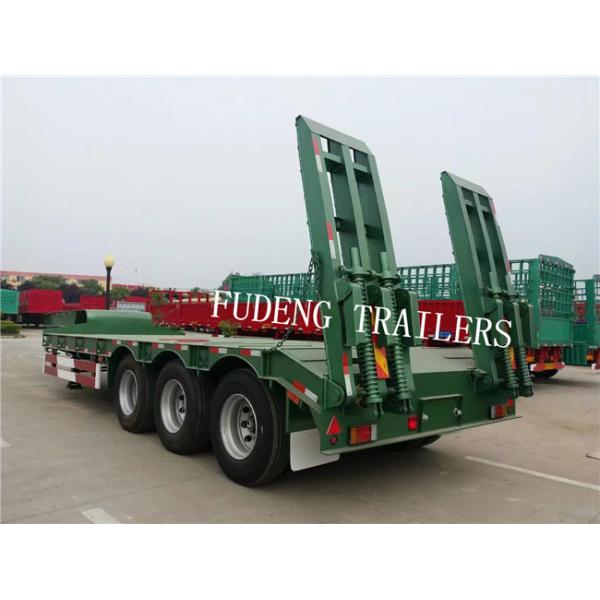

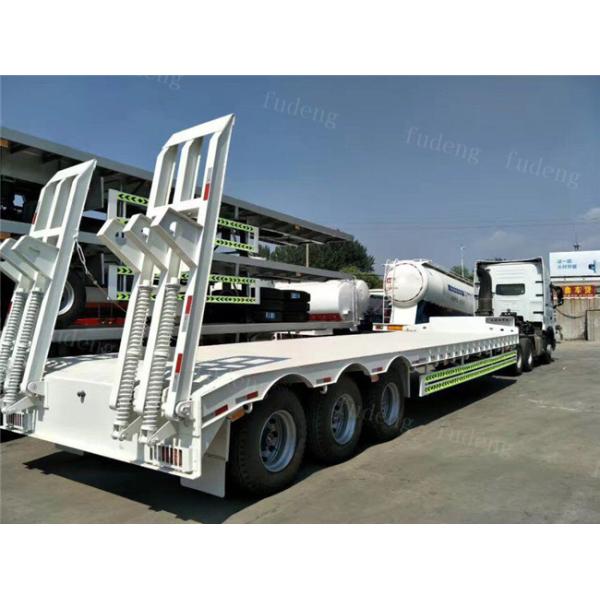

Construction Machinery Transportation 3 Axle 60Ton Gooseneck Low Bed Semi Trailer With Ladder
Low Bed Trailer which is knows also low loader and can carry heavy loads , excavators , construction machines, transformer, generator , cranes , caravans , army tanks and different kind of big machines. Lowbed Semi Trailers can be produced between 2 axles to 8 axles and loading capacity starting from 20 Tons to 180 Tons , rear or front loading Lowbed Trailers and platform as customer demand with different kind of specification according to demand.
Features of Low Bed Trailer:
Mechanical or hydraulic climbing ramp is an option for easy loading
and unloading
Lower height (hydraulic and air suspension be able to adjust
height)
Detachable gooseneck is an option
Small turning radius, up to 55° steering angle
Both automatically and manually all wheels steering
Drop deck minimize trailer’s platform height, increase traffic
ability for over height cargo
Side bracket is an option(for increase overall width), removable
and swinging
LOW BED TRAILER Specification:
| Product Number | PLY8324B |
| Outside Dimensions | 13000x3000x1750mm(As the buyer's request) |
| Color/Logo | Customized |
| Tare Weight | 9.0ton |
| Rated Load | 60ton |
| Axle Brand | FUWA/BPW, other brand optional |
| No. of the Axle | 3pcs |
| Axle load | 13ton |
| Tyre Specations | 12R22.5,11.00R20, other optional |
| Wheel rim | 9.0-22.5 better brand 12pcs |
| Spare tire carrier | 1 set |
| No. of the Tyre | 12Pcs 12R22.5 |
| King Pin | 2.0Inch Or 3.5Inch |
| Landing Led | JOSt brand two-speed, manual operating, heavy duty landing gear 28ton |
| Ladder | Mechanical ladder |
| Suspension | Mechanic/Air Bag/Independent Type Optional |
| Leaf Spring | 6pcs*90*8pcs |
| Brake System | Dual Lines Braking System With Automatic Air Chambers,Four double and two single chamber |
| Electric Sustem | 24V, 7core socket, lights according to European standards. |
| Material of the Main Beam | Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 20mm,width140mm;Middle Flange 14mm height 500mm;bottom flange20mm,width 140mm |
| Painting | Complete chassis sand blsting to clean rust,1 coat of anticorrosive, 2 coats of final paint |
3 Axles low bed semi trailers.
70ton Low bed semi trailers

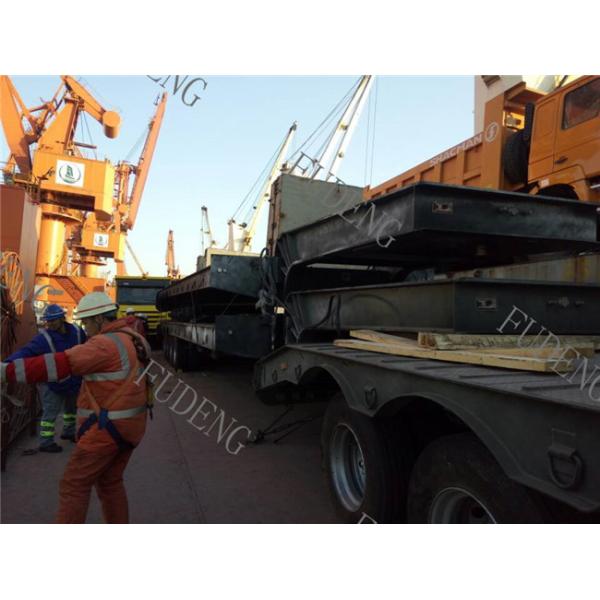

Shipping:
Welcome to visit our factory.
|
