| Categories | Low Bed Semi Trailer |
|---|---|
| Brand Name: | FUDENG Brand Low bed trailer |
| Model Number: | Low bed trailer |
| Certification: | CE , ISO,ADR/DOT |
| Place of Origin: | Shandong China(Mainland) |
| MOQ: | One Unit 120tons Lowbed trailers |
| Price: | negotiation |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 Units Per Month |
| Delivery Time: | 15 work days after 30% deposit |
| Packaging Details: | Nude Packing 3 sets stacked (by Bulk Cargo Ship, Ro-ro Ship, or Land Transportation) ; |
| Axles: | Fuwa/BPW/Chinese brand |
| Suspension: | Mechanical suspension and Air suspension |
| Load capacity: | 60-80Tons |
| Color: | Optional |
| Size: | 13mx3mx1.5m Or Customized |
| King Pin: | 50 # Or 90 # |
| Landing Gear: | JOST 28 Tons Standard |
| Material: | Q345B carbon steel |
China factory 4 Axles low bed trucks 100Tons 3 Axles lowbed trailers for sale

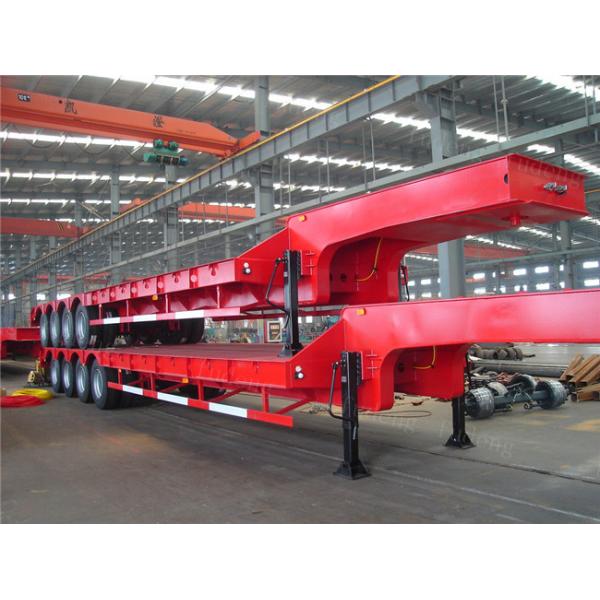

FUDENG Low bed trailers:
1. Model: LAT9320TDP (Dimensions &Axle Optional)
2. More than 16 years professional manufacturer experience
3. Be designed according to your requirements
4. CCC ISO9001 WMI SGS BV agreement
5. Small order can be accepted
6. 1 year quality guarantee term
7. We accept 100% inspection, welcome to our factory at any time
This series hydraulic low bed trailer applicable for the transportation of the mechanical equipment,
excavators, bulldozer, large objects, highway construction
equipment, large tanks, power plant equipment or machine,and all
sorts of steel products.
2. Low bed trailer dimension could be customized, we can manufacture it according to
your needs.
3.The axles of tri axle low bed semi trailer can be Fuwa/Bpw with different tonnages by your need with price
differences.
4.The suspensions can be: Air suspension, mechanic (leaf spring
suspension), bogie suspension
5.The loading deck can be concave beams, tire appeared
cover,totally flatbed, or extendable.
6.The loading ramps can be rear end designed, or front loading
ladders, which can be mechanic spring ladders and hydraulic loading
ramps by different needs.
LOW BED TRAILER Specification:
| Tare Weight | About 13T |
| Dimension | 12000mm-18000mm*2500mm-3500mm*3050mm Please indicate the working platform height and length. |
| Loading Capacity (T) | 70T |
| Axle | 13 T/16T, FUWA /BPW/Chinese Brand |
| Rim | 6.5-20/7.5-20/8.00-20/8.5-20 |
| Tire | 8.25R20/10.00R20/11.00R20/12.00R20 |
| Suspension | Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand ) |
| Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 |
| King pin | JOST brand 2.0 or 3.5inch bolts type or Welding type |
| Support leg | JOST brand D200T or China brand 28Tons (Double speed) |
| Main beam | Height: 450mm-520mm, upper plate is 14mm-25mm, middle plate is 8mm-12mm, down plate is 16mm-25mm ; Material is Q345B Steel . |
| Side beam | 16mm -25mm channel steel ( Material is Q235steel ). |
| Ladder | Manual or Hydraulic type |
| Gooseneck | For choose |
| Brake chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); Two pieces of 45L air tanks |
| ABS | Optional |
| Twist Locks | Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) |
| Valve | WABCO valve |
| Light | LED light |
| Voltage | 24V |
| Receptacle | 7 ways (7 wire harness) |
| Tool box | One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
| Shipping Terms: | By bulk cargo carrier, RORO or 40HQ container. |
4 Axles 120Tons low bed semi trailers.
100Tons Lowbed semi trailers.

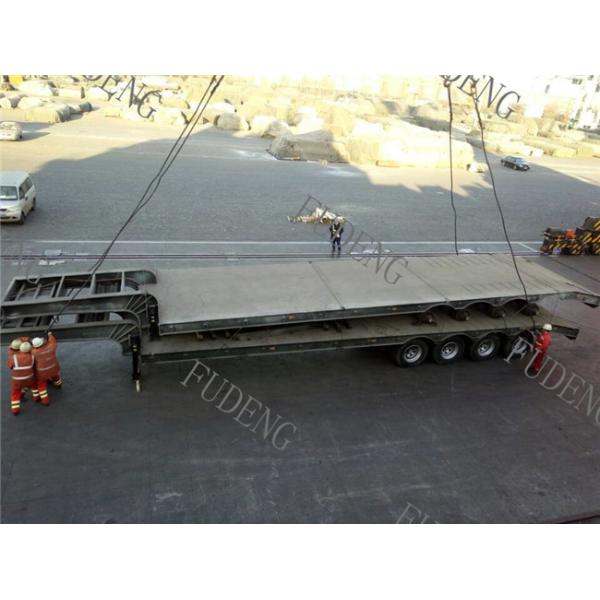

Shipping:
Welcome to visit our factory!
|
