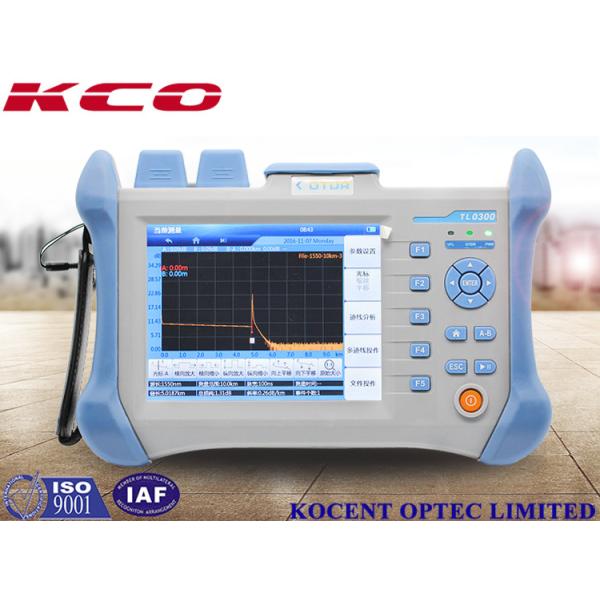

OTDR Tester KCO-TL0300 Time Domain Reflectometry Fibers Optical Cable Testing Devices

OTDR Tester KCO-TL0300 Passive Optical Network Testing Optical Time Domain Reflectometry

Descriptions:

- OTDR——Optical Time Domain Reflector is a high precision optical testing meter that use the theory of Rayleigh scattering and Fresnel reflection.

- It is widely used in the maintenance, construction and monitoring of an optical line.

- All the important parameters like fiber length, optical loss, connection loss, broken or twisted point and etc. of a fiber can be shown on the OTDR.

- When the a light transmits along a fiber, it would be scattered to various directions caused by the difference of come properties of the transmission medium, this phenomenon called Rayleigh scattering.

- During the scattering process, some of the light will be scattered along the absolutely converse direction, this phenomenon is called Rayleigh backscattering.

- It provides some details about the fiber length.

- The parameters about fiber length can be got by calculation with the parameter of time(This is the derivation of TD in OTDR——Time Domain optical Time Domain Reflectormeter).

Dimension:

Features:

Event Dead zone as lower as 1.5meter
Combined multi dynamic range and wavelengths
Muti measurement mode, support Touching LCD and pressing keys
Warning function could prevent OTDR module from being damaged by optical signal in fiber.
Realtime measuring function, convenient to monitor the splicing process
Integrated 10mw Visual Fault Locator
Support English/ Chinese input, adopts friendly input interface, totally simulate the computer
keyboard input ,
Integrated with 2GB internal memory, more than 20,000 groups curve storage
PC remote access and control function is available , which support the printing work of the
measurement report
5.6-Inch outdoor-enhanced touchscreen, 7.4V/4.4Ah Lithium battery

Photos:

Specification:

Pulse Width SM	5ns 20ns 50ns 100ns 500ns 1μs 2μs 5μs 10μs ,
Distance Range SM	Dead zone test, 1.3km, 2.5km, 5.0km, 10km, 20km, 40km, 80km, 120km
Sampling Resolution	Minimum 0.05m
Sampling Point	128,000
Linearity	≤0.05dB/dB
Loss Threshold	0.01dB
Loss Resolution	0.001dB
Distance Resolution	0.01m
Distance Accuracy	±(1m+measuring distance×3×10 +sampling resolution)
Data Storage	20000 groups of curve
VFL	10mW,CW/2Hz
Interface	3 USB ports(Type A×2,Type B×1)
Display	5.6 inch TFT-LCD, Touching screen
Battery	7.4V/4.4Ah lithium battery , support 8 hours continuous working
Working conditions	Working Temp:-10°C~+50°C;Storage Temp:-20°C~+70°C;Humidity : ≤95%(non-dew)
Dimensions/Weight	253×168×73.5mm / 1.5kg(include battery)
Packing list	Straps; Adaptor; Lithium battery; FC connector; USD Cable; User Guide; CD; soft-bag; cleaning cotton

Standard Accessory

No.	Description	Qty
1	Power Adaptor	1pc
2	Power Patchcord	1pc
3	Data Cable	1pc
4	CD (Software+ manual)	1pc
5	Carry Case	1pc
6	Cleaning Cotton	1pc
7	SC FC ST connectors	1 set

Packing: Carton box, wooden pallet

Shipping:

- By international express such as: TNT, DHL, UPS, etc

- By International air such as CA, AA, EA, etc

- By sea

Product Tags:


*From:	Your email address is incorrect!
*To:	KOCENT OPTEC LIMITED
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Fiber Optic Tools
Brand Name:	KCO
Model Number:	KCO-TL0300
Certification:	ISO9001, RoHS, UL
Place of Origin:	China
MOQ:	Negotiation
Price:	Negotiable
Payment Terms:	Western Union, T/T, L/C
Supply Ability:	1000 pcs/month
Delivery Time:	2~3 working days
Packaging Details:	Carton box, wooden pallet
Model:	KCO-TL0300
Dynamic Range:	up to 37 dB
Short distance Resolution:	8cm
Life Duration:	12 hours
Testing length:	Max 120km
Power:	12V
