| Categories | Thermoelectric Water Chiller |
|---|---|
| Brand Name: | Adcol |
| Model Number: | ARC150-220VAC |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 50Pcs/Month |
| Delivery Time: | 3-4 Weeks |
| Packaging Details: | Solid Carton Packaging |
| Certification: | ISO9001,CE |
| Cooling Capacity: | 150W / 300W |
| Heating Capacity: | 250W / 300W |
| Input power: | 253W / 391W |
| Fluid Pressure: | 0-40 PSI |
| Max. Flow Rate: | 6 LPM |
| Heat Radiation: | Air |
| Company Info. |
| Adcol Electronics (Guangzhou) Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

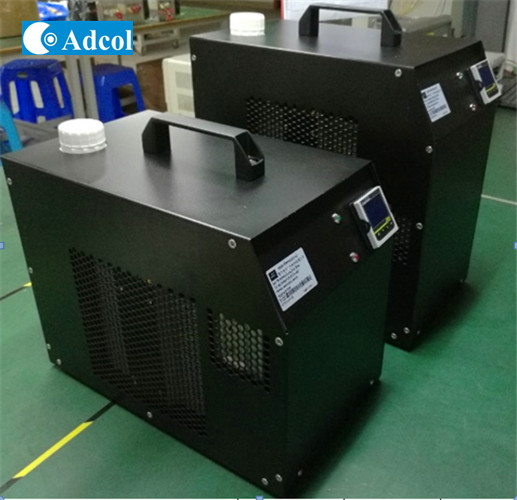

Compact Thermoelectric Chiller Your Cooling Choice
Thermoelectric Water Chillers are the best way to provide a system
with a safe, accurate, reliable, lightweight user-friendly cooling
and / or heating device, and used for cooling and/or heating any
system that requires a high level of heat dissipation or an
absorbing system which requires constant temperature control.
Features
- Programmable Digital Temperature Controller
- Auto-tune of PID control terms
- Auto cooling/heating (optional)
- High definition LCD Display
- System Error Monitor and alarm
- Fluid inlet and outlet quick disconnect
Application
- Medical
- Medical lasers
- Photonic Laser System
- Machine Tool
- Industrial Instrument
- Laboratory Test
- 3D printing
| Model | ARC150-01 | ARC300-01 |
| Input voltage | 90~265VAC | 90~265VAC |
| Frequency | 50/60 Hz | 50/60 Hz |
| Operating environment temperature range | -10~45°C | -10~45°C |
| Operating Humidity | 20~85% | 20~85% |
| Control temperature range distilled H2O as coolant | 4-50°C | 4-50°C |
| Control temperature range, using 75% distilled H2O and 25% glycol or alcohol as coolant | 0-50°C | 0-50°C |
| Controller accuracy | ±0.1 | ±0.1 |
| Cooling Capacity | 149Watts | 300Watts |
| Heating Capacity | 250Watts | 300Watts |
| Current, 115VAC (230VAC) | 2.2A (1.2A) | 3.4A (1.8A) |
| Input power | 253Watts | 391Watts |
| Fluid Pressure | 0-40 PSI | 0-40 PSI |
| Maximum Flow Rate | 6 LPM | 6 LPM |
| Storage temperature range °C | -40~75°C | -40~75°C |
| Storage Humidity | 5~95% | 5~95% |
| Heat Radiation | Air Force | Air Force |
|
