Peltier Water Bath Thermoelectric Cooling Bath For Diffusion Gas

Categories Peltier Thermoelectric Bath
Brand Name: Adcol
Model Number: ARB320-02
Certification: ISO9001 , CE
Place of Origin: China
MOQ: 1
Price: Negotiation
Payment Terms: T/T , Paypal
Supply Ability: 200pcs per month
Delivery Time: 3 - 4 weeks
Packaging Details: Solid carton packaging , Wooden case
Control Method: Cooling / heating automatic PID control PID
Heat Radiation: Peltier element (Liquid-Cooled)
Operating Temp: 0~60℃(for Water ≥4℃)
Temp. stability: ±0.04︒C
Temp. distribution: ±0.04︒C
Size: W300xD350xH400mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

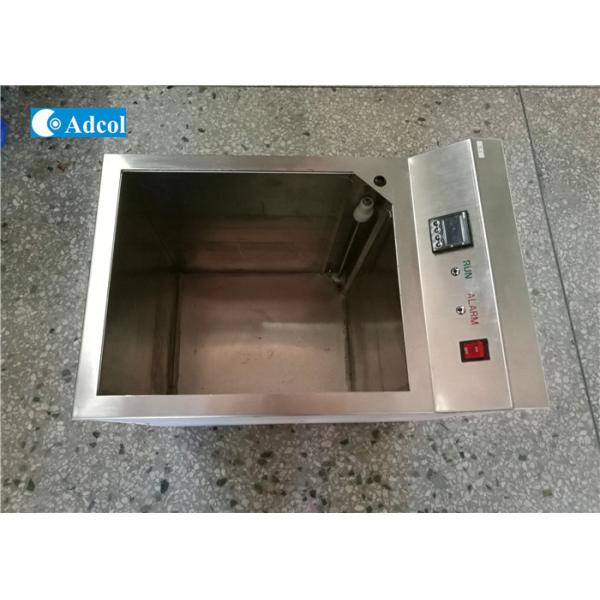

Peltier Water Bath Thermoelectric Cooling Bath For Diffusion Gas

Peltier Water Bath Thermoelectric Cooling Bath For Diffusion Gas​

Standard Features
Fast cooling and heating with precise temperature
Easy to operate
Environmentally friendly and refrigerant-free

Programmable Digital Temperature Controller
System Error Monitor and alarm
High reliability

Typical Applications
Jacketed reactor vessels
Large rotary evaporators

Reaction calorimetry

Fermentation

Analytical instrumentation

ItemDescription
ARB320-01ARB320-02
Control MethodCooling / heating automatic PID control PID
Heat RadiationPeltier element(Liquid-Cooled)
Operating Temp0~60℃ (for Water ≥4℃)
Temp. stability±0.04︒C
Temp. distribution±0.04︒C
Cooling Capacity320W @T-bath=25℃;T-facility=25℃
Heating Capacity700W @T-bath=25℃;T-facility=25℃
Bath LiquidWater : 4-60℃ Ethylene glycol-Water ,(≤50%) : 0-60℃

Facility Liquid


Temp10~35℃ (No Dew Condensation)
Flow rate2~7 L / min
Pressure≤145 PSI (1 MPA)
port sizeRC 3/8
SizeBathW216xD216xH250mm Usable Dept: 220mmW300xD350xH400mm Usable Dept: 370mm
OverallW266xD376xH400mmW350xD510xH550mm
Drain Port sizeCPC Coupling PLCD 16006
Power supply94~265 VAC, Single phase, 50/60HZ, 600W
Over Current ProtectionRated current, 10A
Serial COMMRS485( RS 232 Option)
Alarm OutputHigh/Low temp alarm, Output cutoff alarm
Temp. SensorPT100, 3 wires
AmbientTemp10~35℃
Humidity≤85% RH
WeightApprox. 20KGApprox. 30KG
