| Categories | Ultra Thin Copper Foil |
|---|---|
| Brand Name: | JIMA |
| Model Number: | RACULP |
| Certification: | SGS, ISO,Reach, RoHS |
| Place of Origin: | china |
| MOQ: | 100kg |
| Price: | Negotiation |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1500 Ton per month |
| Delivery Time: | 5- 25days |
| Packaging Details: | wooden carton |
| Application:: | Lithium-ion Battery ，Li-ion battery |
| Ultra thickness : | 6um 0.006mm 6micron |
| Standard: | IPC-4562/IPC9TM-650 |
| Width range: | within 620mm |
| Thickness toleranc: | within +/-0.00054mm |
| Roughness: | under 0.025um |
| Width standard tolerance: | +/-1.5mm |
| Company Info. |
| JIMA Copper |
| Verified Supplier |
| View Contact Details |
| Product List |

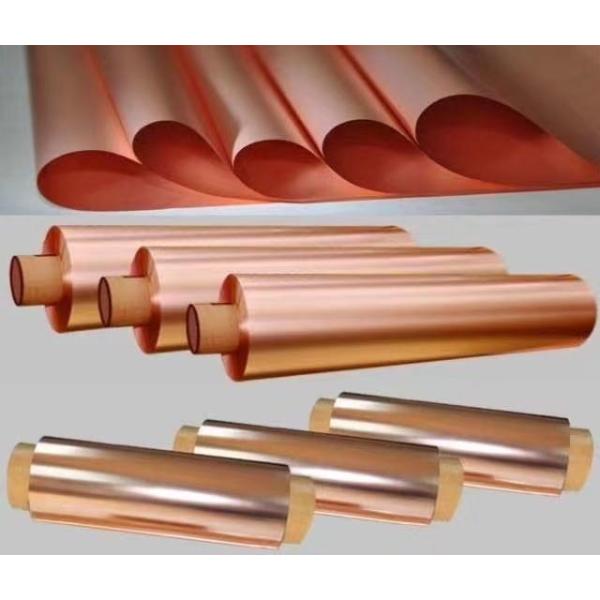

Ultra thickness 6um electrodeposited copper foil for Lithium-ion Battery
| Ultra ThicknesS | 6micron,6um,0.006mm |
| Width Range | within1380 mm |
| Length | 500M-5000 M |
| Features | Excellent uniformity and infiltration. double shiny side ,superior rupture endurance. Surface:No indentation,No scratches,No wrinkles,No tear and other defect. thickness standard tolerance:within +/-0.00054mm Roughness:0.025um Width standard tolerance:+/-1.5mm Ultra thickness |
| Packing | standard export sea wooden box |
| Cu Content (%) | Above 99.8% |
| ID of Roll | 76mm,152mm,can custom |
| Roll Weight | 100kgs~350kgs |
|
Thickness: 6µm~20µm
| Test Item | Unit | Thickness | ||||||
| 6μm | 7μm | 8μm | 9/10μm | 12μm | 15μm | 20μm | ||
| Cu Content | % | ≥99.9 | ||||||
| Area Weight | mg/10cm2 | 54±1 | 63±1.25 | 72±1.5 | 89±1.8 | 107±2.2 | 133±2.8 | 178±3.6 |
| Tensile Strength(25℃) | Kg/mm2 | 28~35 | ||||||
| Elongation(25℃) | % | 5~10 | 5~15 | 10~20 | ||||
| Roughness(S-side) | μm(Ra) | 0.1~0.4 | ||||||
| Roughness(M-side) | μm(Rz) | 0.8~2.0 | 0.6~2.0 | |||||
| Width Tolerance | Mm | -0/+2 | ||||||
| Length Tolerance | m | -0/+10 | ||||||
| Pinhole | pcs | None | ||||||
| Change of Color | 130℃/10min 150℃/10min | None | ||||||
| Wave or Wrinkle | / | Width≤40mm one allow | width≤30mm one allow | |||||
| Appearance | / | No drape, scratch, pollution, oxidation, discoloration and so on that effect using | ||||||
| Winding method | / | The winding when facing up S side, when the winding tension in the stable,no loose roll phenomenon | ||||||
Details Packing: standard export sea wooden box package
|
