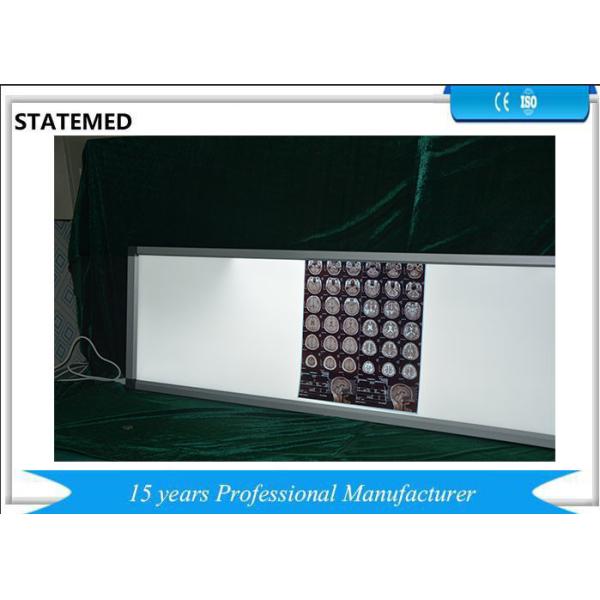

Medical Radiographic Film Viewer / LED Negatoscope , Ultra Thin Four Panel LED X Ray View Box

Aluminum Alloy Frame Ultra-thin Four panel LED Medical X Ray Film Viewer

State (Beijing) Medical Technology Co., Ltd is a High-tech medical products enterprise combining R&D, production ,sales and after-sale together, we specialized in Medical Ultrasonic Instruments, ENT Workstation, Medical Endoscope Imaging Systems, Colposcope, Spectral Instrument for gynecology, Plasma Air Disinfection Machine, X-ray machines and other medical equipment. We constantly develop high-quality electric medical devices by adopting the domestic advanced technical facilities to blend the computer information process technology and clinical medicine research perfectly.

Characteristics

• Aluminum alloy frame:;decease light decay and color decay; sturdy and durable
• Ultra-thin, the whole structure thickness is only 21mm
• High brightness, max rated brightness over 4000cd/㎡, suitable for observing films of different density
• Innovative film inserting; film inserts precisely; sturdy and durabl
• Clipping instruction; self locking of roller pin and ball bearing
• Light source: 5630 SMD LED from Germany OSRAM special for chip backlight is used, light efficiency over 100lm/w and use life up to one hundred thousand hours
• Color temperature: 6500±K500; true white light without dazzling and protect doctor’s eyes
• Light guide plate is edge-lit backlight; more uniform brightness distribution and uniform degree more than 90%; little light loss
• Uniform brightness distribution without flickers, dark spaces, and eye strain
• Control brightness through digital control key, it will shut down automatically with buzzer if no actions in 5 minutes; 0~9 stepless dimming; brightness memory
• The screen size is same as film, which avoid light interference, even 14*17 film without light leakage
• Without mercury, energy-conserving and environment-protective; no temperature difference effect, and can be lighted up one open even if in low temperature
• LED light bar is welded by automatic chip mounter without lead reflux, which avoid cold solder joint and LED damage because of high temperature during manual welding, and ensure product quality

Functions

1. Subzone-inductive control and light dimmer type
2. Normal type(fixed brightness)
3. Inductive control type(bright once open)
4. Light dimmer type(scope:10-100%)
5. Inductive control and light dimmer type(bright once open and light dimmer)

Technical parameters

1. Specification: 1504*488*21
2. Observation screen: 1424*425
3. Installation pitch: 1469
4. Luminance(cd/㎡): 4000/6000
5. Brightness dimmer: 10-100%
6. Power supply: AC100~240V 50~60Hz
