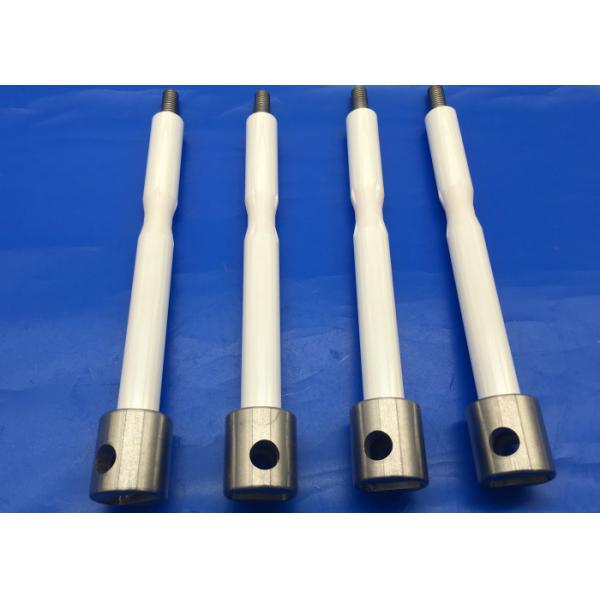

Zirconia Ceramic Valve Rod / Ceramic Plunger with Metal Housing for Pump

Zirconia Ceramic Valve Rod / Ceramic Plunger with Metal Housing for Pump

Key words : ceramic valve rod

We have rich experience in assembling Ceramic parts with Stainless Steel Parts by Heat processing
or glue , We have made lots of products in this way .

Our Factory Mingrui Ceramic Technology custom various size of ceramic valve rod with diameter 0.5mm 1mm 2mm 3mm , the surface is fine polished with good Roughness as fine asRa 0.02, the smallest ceramic rod we can make diameter as thin as 0.4mm , tolerance ±0.001mm .

The Making process of ceramic valve rod :
1. zirconia powder --- forming--- sintering---machining Outer diameter --- Chamfer ends ---- inspection
---packing---ship out

1. Zirconia ceramic rod has the highest strength and toughness at room temperature of all the advanced ceramic materials. The fine grain size allows for extremely smooth surfaces and sharp edges.

2. Excellent thermal insulation/low thermal conductivity (2.5 to 3 W/mK),

3. Very high resistance to crack propagation, high fracture toughness (6.5 to 8 MPam1/2).

All kinds of Porous Ceramic Rod we provide :

1. High Pressure Machinable Zirconia Ceramic Rod Corrosion Resistance
2. Zirconia Ceramic Threaded Rod with Thread Screw Flat Position Stepped Chamfer
3. White Zirconium Oxide Rod Chamfered Ceramic Rod Precision Machining
4. Corrosion Resistant Zirconia Ceramic Stirring Rod with Step Slot
5. Diameter 1mm 2mm 3mm Zirconia Ceramic Rod China Manufacturer
6. Advanced Ceramic Bar with Machined Groove Engineering Ceramic Rod


Industrial Ceramic Rod Intriduction
Porous Ceramic Rod is the most widely applied and cost effective technical ceramic material. It offers a combination of superior mechanical strength and electrical properties, wear resistance and corrosion resistance. The maximum working temperature is up to 1700 °C with relatively high thermal conductivity. It is also an electrically insulating material with a high electrical resistivity. The good corrosion resistance makes it insoluble in water and slightly soluble in strong acid and alkaline solution.
Company Introduction
Mingrui ceramic manufacture and provides alumina ceramic components for a wide range of application like Mechanical Equipment, Electronic & Electrical, Oil Drilling, Medical, Chemical Industry etc. According to actual application and customer's requirement, the purities vary from 95%-99.7% and the forming methods will be different. The forming methods applied in our plant include dry pressing, isostatic pressing, injection moulding, extrusion moulding. With experienced engineers and talented workers, we are confident to offer high quality, high precision, complex components for customers worldwide.

Company Description

Mingrui Ceramics has years of experience designing and developing technical ceramic solutions for a wide variety of applications and industries.High Temperature Refractory Ceramic Threaded Rod Silicon Wafer Cutting Machine. We offer this expertise to all of our customers to ensure the best design and materials are chosen for their specific application and needs.High Temperature Refractory Ceramic Threaded Rod Silicon Wafer Cutting Machine,Typically, our custom technical ceramic components and parts we supply are used for one of three main reasons:

Mingrui Ceramics is one of the world’s premiere technical ceramic suppliers – contact us to see what technical ceramics we can create for you.


ceramic valve rod more Photos :





Our High Precision machining work:





FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have any other question, pls feel free to contact us .
