| Categories | Kiosk Receipt Printer |
|---|---|
| Brand Name: | MASUNG |
| Model Number: | MS-T890 |
| Certification: | CE/ROHS |
| Place of Origin: | CHIAN |
| MOQ: | 1 |
| Price: | negotiable |
| Payment Terms: | T/T |
| Packaging Details: | 2500 set per month |
| Printing method: | Thermal dot line printing |
| Resolution: | Resolution |
| Working voltage: | 24±10% V |
| Average current: | 2A |
| Paper width: | 79.5±0.5 mm |
| Paper thickness: | 60～120μm |
| Paper feed method: | Auto loading |
| Paper roll outer diameter: | 150mm(max) |

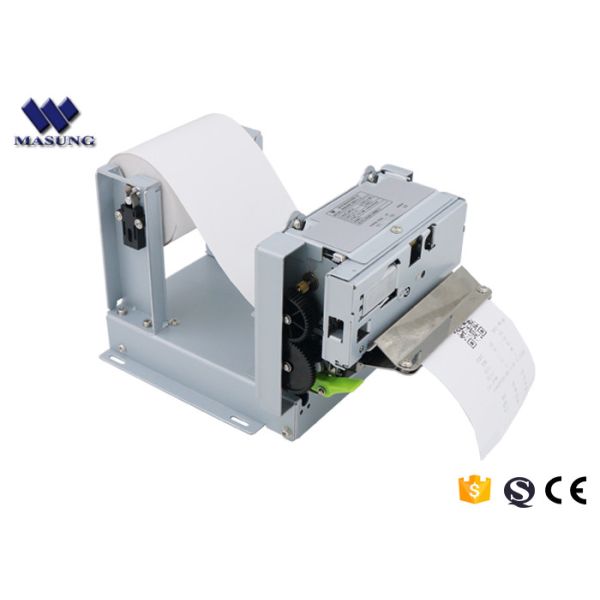

Multi-Functional Application Dot Matrix Machine Embedded Receipt
Features:
●Reliable thermal head & auto cutter
●Ultra Highly printing speed 150 mm/s
Specification:
| Model | MS-T890 | |
| Control board | MS-G530 | |
printing | Printing method | Thermal dot line printing |
| Resolution | 203dpi | |
| Total dots per line | 576 dots | |
| Printing speed | 150 mm/s(max) | |
| Printing width | 72 mm | |
| Detection | Thermal head temperature | Thermal sensors |
| Platen up | Mechanical switch | |
| Out of Paper detection | Mechanical photoelectric sensor | |
| Power | Working voltage | 24±10% V |
| Average current | 2A | |
| Transient current | 6.0A(max) | |
| Paper | Paper width | 79.5±0.5 mm |
| Paper thickness | 60～120μm | |
| Paper cut | Full/Partial | |
| Paper feed method | Auto loading | |
| Paper roll outer diameter | 150mm(max) | |
| Environment | Operation temperature | -10～50°C (no condensation) |
| Operation humidity | 20～80%RH (40℃/85%RH) | |
| Storage temperature | -20～60°C (no condensation) | |
| Storage humidity | 10～90%RH (40℃/90%RH) | |
| Service life | Activation pulse resistance | 100,000000 |
| Abrasion resistance | 100KM | |
| Cutter service life | 1,000 000 times | |
| Dimension | W136.1mm*D220.6mm*H134.4mm (without paper roll) | |
| Mass | 1.5kg (without paper roll) | |
| Communication interface | Serial/USB | |
| Character set | ESC/POS | |
Attention:
Before plug in or plug out any interfaces and sockets, please make sure the printer power switch is off.
|
