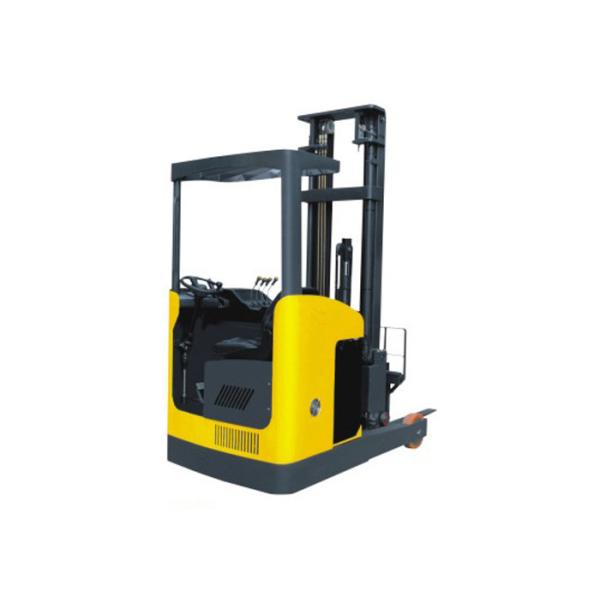

Seated Electric Sit Down Forklift Counterbalanced 1 Ton Mast Reach Type

Seated electric reach truck narrow aisle truck with 1000kg capacity

Quick Details:

Product name: Narrow aisle truck mast reach type CQD10M

Capacity: 1000kg

Lifting height: 3000/5000/6200mm

Reach distance: 600mm

​Free lift: ~ /1700/2100mm

​Fork dimension: 35/100/1070mm

​Travel speed, load/unload: 7/7.2km/h​​

Aisle width for pallets 1000*1200 crossways: 2800mm

Aisle width for pallets 800*1200 lengthways: 2850mm

Turning radius: 1740mm

Battery: 48V400AH

Advantages:

• ​​​The CQD series counterbalanced reach lift truck with innovative design and application-oriented functionality.

• low noise, no pollution and small turning radius.

• Widely used for high-shelves in narrow aisle warehouses, supermarkets, etc.

• Mast reach distance 600mm.

• Capacity 1000kg.

• ​Lifting height 3000/5000/6200mm.

• Truck with small width from 1020-1100mm, turning radius from 1700-1740mm and narrow cabin to ensure trucks can be used in drive-in racks.

• Available in either DC or AC power options.

• For daily maintenance of the battery, you don’t need to hand up the battery box. Simply using a battery handle controller, you can automatically remove and replace the battery box.

• ​Option: LCD display and camera.

Opyional LCD display and camera for high level operation.
