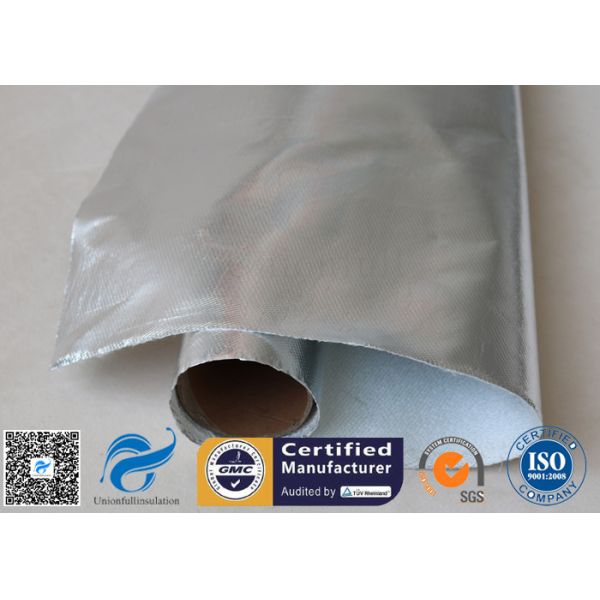

Silver Heat Insulation Durable 880g 0.9mm Aluminium Foil Fiberglass Fabric
Aluminium foil fiberglass fabric is a basic 850g/m2 fiberglass fabric laminated with a silver aluminium foil by high temperature adhesive. Fiberglass cloth is woven in satin weave and 0.85mm thick. It is fire resistant, chemical resistance and high strength. Thicknesses of aluminium foil are 7u, 18u, 25u and 50u max. Total weight is 880g/m2.
Basic fiberglass fabric can withstand heat below 550℃. And adhesive for foil can be ued below 300℃ continuously. With properties anti UV, corrosion, heat reflective and waterproof, this foiled fiberglass fabric is widely used for industrial thermal insulation, such as fire blanket, pipe warp materials, work wear, welding shield cover.
Data Sheet
| Material | Aluminium Foil Fiberglass Fabric | ||
| Weave | Satin | ||
| Thread Count | 18/13 per cm | ||
| Total Weight | 880g/m2 | ||
| Thickness | 0.9 mm | ||
| Aluminium Foil | 7micron/ 18micron/ 25micron | ||
Tensile Strength (N/5cm) | 8000/6000 | ||
| Width | 100cm, 125cm, 155cm | ||
| Temperature | Fiberglass cloth: ≤550℃ Adhersive: ≤300℃ |
