LHD New 6x4 Howo A7 40-50T Tons Commercial Heavy Duty Dump Truck Zz3257n3847n1

Categories Heavy Duty Dump Truck
Brand Name: SINOTRUK HOWO
Model Number: ZZ3257N3847N1
Certification: CCC,ISO
Place of Origin: SHANDONG
MOQ: 1 unit
Payment Terms: LC,TT
Supply Ability: 300 Units Per Month
Delivery Time: 30-45 Days
Packaging Details: nude
Price: 35000-40000usd/unit
BOX VOLUME: 20 CBM
LIFT SYSTEM: FRONT LIFT
FRONT AXLE: 9 TONS
REAR AXLE: 16 TONE
CABIN: ONE BED
LOADING: 15-20 TONS
Drive wheel: 6x4
Fuel type: Diesel
Condition: New
Transmission type: Manual
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

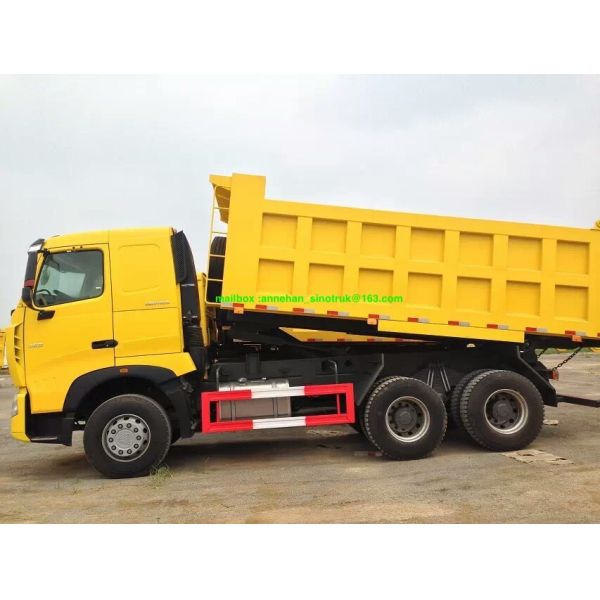

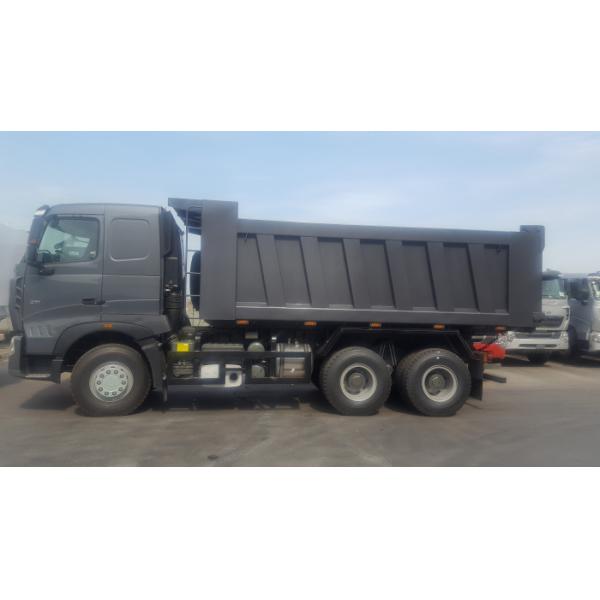

LHD New 6x4 Howo A7 40-50T Tons Commercial Heavy Duty Dump Truck Zz3257n3847n1

HOWO A7 20 Tons Commercial Heavy Duty Dump Truck One Bed For Mining Model ZZ3257N3847N1


Description:


This model can meet the requirements of severe environment like construction site and

mining area.which can fullfiled you of short distance transportation of mining rock and

soil as well as engineering construction.


Specifications:


GVW25000kg Driving Type 6x4
ModelZZ3257N3847N1
CabA7-W
Engine(Hp)371
Power(Kw)273
TransmissionHW19710
Front AxleHF9
SteeringZF8118
Rear AxlesHC16
Wheels & Tyres315/80R22.5.
Carriage Internal Dimensions(mm)5600x2300x1550
Cubage (m3)20
Steel thickness of Carriage(mm)Floor:8mm/Side:6mm
Hydraulic Lift of CarriageMiddle Lift
Dimensions(mm)8700×2550×3600
Kerb weight (Kg)12270
EngineModelWD615.47
Horsepower371
Maximum output Kw/r/min273/2200
Maximum torque N.m/r/min1460/1300-1600
Type6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection
Bore x Stroke126x130mm
Valve2
Displacement9.726L
Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 80℃ opening begin, Rigid fan
CabSINOTRUK A7-W cab,single bunk,new type seat,adjustable steering wheel,EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner.MTCO Traveling data recorder.
ClutchSINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance
TransmissionSINOTRUK HW19710 transmission ,10 forward and 2 reverse
Front AxleSINOTRUK HF9 Front Axle,new 9-ton front axles of equipped with drum brakes.
SteeringZF8118 Steering Gear Box ,hydraulic steering with power assistance,
Rear AxlesSINOTRUK HC16 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:5.73;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers.
Brake System

Service brake:dual circuit compressed air brake .

Parking brake (emergency brake):spring energy,compressed air operating on rear wheels Auxiliary brake:engine exhaust valve brake.EVB,ABS.

Wheels & Tyres10 hole-steel ;Tyres:315/80R22.5 tubeless tyre with 1 Spare tire.
Electrics

Operating voltage:24V,negative grounded

Starter:24V,7.5 Kw

Alternator:3-phase,28V,1500 W

Batteries:2x12 V,165 Ah

horn,headlamps,fog lights,brake lights,indicators and reverse light

Oil TankSquare type-300L Aluminum alloy fuel tank
Weight in kg

Gross vehicle weight 25000

Front axle loading capacity 9000

Rear axles loading capacity 2x16000

Performance

Maximum driving speed (km/h) 75

Fuel consumption (1/100 km) 38

PackingNude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.

Competitive Advantage:


1) excellant apperance of cabin, safety, reliable

2) you can choose cargo body with Front lifting type or Middle lifting type which you prefered

3) all kinds of cargo body structure can be designed and produced according to your request,

make it have light curb weight , high rigidity , high loading capacity

4) with all kinds of truck model, which can fulfil your requirements

5) professional import and export dealing precedure, make customs clearance more high efficiency

6) using the high strength steel, make it has a long service life

7) strong enough engine

8) The hydraulic sytem using HYVA brand or Domestic famouse brand

9) quick and efficient spare parts supply bring you more convenient

10) fast delivery time, we can arange production according to your needs exactly and quickly

11) competive price, cost-effective

12) The optimized hydraulic control system helps to avoid wrong operation, it has higher

safety and running efficiency.

13) low fuel consumption
