| Product Name: | GB8163/T Cold Drawn Seamless Carbon Steel Tube |
| Type: | Seamless Carbon Steel Ppie |
| Usage: | Fluid Pipe |
| OD: | 4-1200mm |
| WT: | 0.5-200mm |
| Length: | 3-1.52m |
| Material: | Q345,Q295 |
| Surface: | Oiled |
| Shape: | Round |
| Terms Of Trade: | CIF FOB CFR |
| Company Info. |
| TORICH INTERNATIONAL LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |

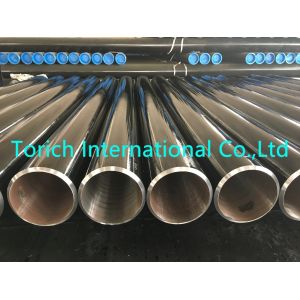

GB8163/T Cold Drawn Seamless Carbon Steel Tube
Heat Treatment: Hot Rolling & Cold Drawn
Tolerance of the OD &WT:
OD Tolerance:
| Production Method | OD Tolerance |
| Hot Rolling(Extrusion) | ±1% or ±0.50mm |
| Cold Drawn(Cold Rolled) | ±1% or ±0.30mm |
Tolerance for wall thickness:
1.Wall thickness tolerance of Hot Rolling steel tube:
| Production Method | OD (DN) | WT/OD | Tolerance |
| Extruded tube | ≤102 | / | ±12.5% or ±0.40mm |
| ＞102 | ≤0.05 | ±15% or ±0.40mm | |
| ＞0.05-0.10 | ±12.5% or ±0.40mm | ||
| ＞0.10 | +12.5% -10% | ||
| Heat expanding steel tube | / | ±15% | |
2.Wall thickness tolerance of Cold Drawn(Cold Rolled) steel tube:
| Production Method | WT | Tolerance |
| Cold Drawn(Cold Rolled) steel tube | ≤3 | +15%/-10% or ±0.40mm |
| ＞3 | +12.5% -10% |
Bending tolerance:
WT≤15mm, Bending≤1.5mm/m
WT＞15mm~30mm, Bending≤2.0mm/m
WT＞30mm/OD≥351mm, Bending≤3.0mm/m
Ovality and Wall unevenness:
The ovality and wall unevenness should be no more than 80% of the OD and wall thickness.(Or according to customer’s request)
mechanical property
| Steel Grade | Tensile strength Rm N/mm2(MPa) | Yield Strength Rp0.2 N/mm2(MPa) | Elongation A % | |||
| Wall Thickness | ||||||
| ≤16mm | ＞16~30mm | ＞30mm | ||||
| 10 | ≥335 | ≥205 | ≥195 | ≥185 | ≥24 | |
| 15 | ≥375 | ≥225 | ≥215 | ≥205 | ≥22 | |
| 20 | ≥410 | ≥245 | ≥235 | ≥225 | ≥20 | |
| 25 | ≥450 | ≥275 | ≥265 | ≥255 | ≥18 | |
| 35 | ≥510 | ≥305 | ≥295 | ≥285 | ≥17 | |
| 45 | ≥590 | ≥335 | ≥325 | ≥315 | ≥14 | |
| 20Mn | ≥450 | ≥275 | ≥265 | ≥255 | ≥20 | |
| 25Mn | ≥490 | ≥295 | ≥285 | ≥275 | ≥18 | |
| Q235 | A | 375~500 | ≥235 | ≥225 | ≥215 | ≥25 |
| B | ||||||
| C | ||||||
| D | ||||||
| Q275 | A | 415~540 | ≥275 | ≥265 | ≥255 | ≥22 |
| B | ||||||
| C | ||||||
| D | ||||||
| Q295 | A | 390~570 | ≥295 | ≥275 | ≥255 | ≥22 |
| B | ||||||
| Q345 | A | 470~630 | ≥345 | ≥325 | ≥295 | ≥20 |
| B | ||||||
| C | ≥21 | |||||
| D | ||||||
| E | ||||||
| Q390 | A | 490~650 | ≥390 | ≥370 | ≥350 | ≥18 |
| B | ||||||
| C | ≥19 | |||||
| D | ||||||
| E | ||||||
| Q420 | A | 520~680 | ≥420 | ≥400 | ≥380 | ≥18 |
| B | ||||||
| C | ≥19 | |||||
| D | ||||||
| E | ||||||
| Q460 | C | 550~720 | ≥460 | ≥440 | ≥420 | ≥17 |
| D | ||||||
| E | ||||||
