Ceramic LED Chips Sputtering Coating Plant / PVD COPPER Deposition on Al2O3 , AlN Circuit Boards

Ceramic LED Chips Sputtering Coating Plant / Ag, Cu Deposition on Al2O3 , AlN Circuit Boards

Performance

1. Ultimate Vacuum Pressure: better than 5.0×10^-6 Torr.

2. Operating Vacuum Pressure: 1.0×10^-4 Torr.

3. Pumpingdown Time: from 1 atm to 1.0×10^-4 Torr≤ 3 minutes ( room temperature, dry, clean and empty chamber)

4. Metalizing material (sputtering + Arc evaporation): Ni, Cu, Ag, Au, Ti, Zr, Cr etc.

5. Operating Model: Full Automatically /Semi-Auto/ Manually

Structure

The vacuum coating machine contains key completed system listed below:

1. Vacuum Chamber

2. Rouhging Vacuum Pumping System (Backing Pump Package)

3. High Vacuum Pumping System ( Magnetically Suspension Molecular Pump)

4. Electrical Control and Operation System

5. Auxiliarry Facility System (Sub System)

6. Deposition System

Copper Sputtering Coating Machine Key Features

1. Equipped with 8 steer arc cathodes and DC Sputtering Cathodes, MF Sputtering Cathodes, Ion source unit.

2. Multilayer and co-deposition coating available

3. Ion source for plasma cleaning pre-treatment and Ion-beam assisted deposition to enhance the film adhesion.

4. Ceramic/ Al2O3/AlN substrates heating up unit;

5. Substrate rotation and revolution system, for 1-side coating and 2-sides coating.

Cooper Magnetron Sputtering Coating Plant on Ceramic Radiating Substrate

The DPC process- Direct Plating Copper is an advanced coating technology applied with LED / semiconductor / electronic industries. One typical application is Ceramic Radiating Substrate.

Cooper conductive film deposition on Al2O3, AlN substrates by PVD vacuum sputtering technology, compared with traditional manufacturing methods: DBC LTCC HTCC, much lower production cost is its high feature.

Royal technology team assited our customer to developed the DPC process sucessfully with PVD sputtering technology.

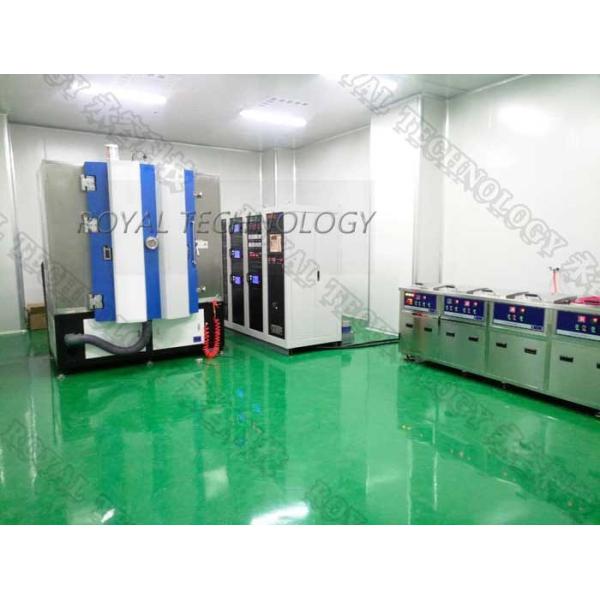

The RTAC1215-SP machine designed exclusively for Copper conductive film coating on Ceramic chips, ceramic circuit board.

Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.

Shanghai Royal Technology Inc. was established in 2006, a worldwide supplier of high quality vacuum equipment with key locations around the globe. Research and Development technology are supported by specialized engineers in the United States and China. High-tech machine manufacturing facilities are located in Shanghai and our global network of service centers ensure fast customer service response in key locations.

 Shanghai Royal Technology has a strong drive for innovative design and high quality components selection, combined with an extra careful assembly process and a topnotch team of talented technicians and inventors, which enable us to offer turn-key coating solutions with high standard vacuum equipment, meeting and often exceeding Western standard. We are determined to serve the market worldwide in various industries such as:

Consumer electronics, automotive, renewable energy, architecture, Nano and bio-medical materials.

RTAS model,the arc and sputtering integrated series equipment can produce highly reflective black and bronze films specifically for high quality decorative coatings.

RTSP1200-FCEV, It is a sputtering system with PECVD process to deposit thin film on hydrogen fuel cell power modules. Fuel Cell Vehicles is the newest technology for the next generation of environmentally friendly cars. The main advantage and technological progress compared to commonly used batteries like dry cell need to undergo a recurring recharging process, but hydrogen fuel cell power modules only require Hydrogen and Oxygen reaction to generate power for driving.

RTSP1200-DPC,This coating system is exclusively used for the DPC (Direct Plating Copper) ceramic substrates process. The DPC ceramic substrates are widely used in various applications: for instance in high brightness LED to increase the longevity because of its high heat radiation performance, Semiconductor equipment, in microwave wireless communication, military electronics, various sensor substrates, aerospace, railway transportation, electricity power and much more.

RT-CsI950, Evaporation coating plant is applied to CsI film deposition for X-Ray Imaging devices. It is an advanced technique to evaporate CsI on the screen to create high quality images. The high-resolution performance allows this application to be extremely efficient and disruptive in the medical instrument, nuclear energy industry, security checking and inspection, high energy physics subjects and more.

Shanghai Royal Technology also successfully designed and developed Cube and Cylinder model large size Aluminum Vacuum Metalizing System which is used for Automotive Logo Board Coating.
