| Categories | Semi Finished Lens Blanks |
|---|---|
| Brand Name: | Aogang Optics |
| Model Number: | Cr39 Single Vision Lenses |
| Certification: | CE/FDA/ISO9001 |
| Place of Origin: | China |
| MOQ: | 100 pairs |
| Price: | negotiation |
| Payment Terms: | T/T, Western Union, L/C, D/A, D/P, MoneyGram,Paypal |
| Supply Ability: | 40,000 pieces per day |
| Delivery Time: | 10~30 days, depend on your quantity |
| Packaging Details: | 1) Standard white envelope 2) Your design with your logo |
| Refractive index: | 1.61/1.60 |
| Monomer: | MR-8, imported from Korea |
| Abbe value: | 36 |
| Specific gravity: | 1.36 |
| Transmission: | >97% |
| Coating: | hard multi coated |
| Base: | 50~1000 |
| Diameter: | 75mm |
1.61 MR-8 ASP UV400 AR Coating Semi Finished Lens Blanks For
Glasses
I. Techinical Data:
| 1.61 Semi Finished Lens | |||||||
| Material: 1.61 Index Resin(Ne=1.60, Abbe value=36, Specific gravity=1.36 ) | |||||||
| NOMINAL CURVE | TRUE* CURVE | Radius of Curvature | SAG 40 (mm) | BACK CURVE | DIAMETER* (mm) | C.T* (mm) | E.T* (mm) |
| 0.50 | 0.63 | 947.62 | 0.23 | 8.50 | 70 | 6.4 | 14.9 |
| 1.00 | 0.71 | 840.85 | 0.26 | 7.20 | 75 | 7.2 | 14.9 |
| 2.00 | 2.04 | 292.65 | 0.76 | 8.50 | 75 | 4.4 | 12.7 |
| 3.00 | 2.96 | 201.69 | 1.01 | 8.50 | 75 | 5.2 | 12.7 |
| 4.00 | 4.08 | 146.32 | 1.40 | 6.00 | 75 | 6.5 | 8.9 |
| 5.00 | 4.89 | 122.09 | 1.59 | 7.20 | 75 | 7.5 | 11.2 |
| 6.00 | 5.79 | 103.11 | 1.88 | 4.80 | 75 | 8.9 | 8.4 |
| 7.00 | 6.74 | 88.58 | 2.21 | 4.80 | 75 | 9.8 | 8.2 |
| 8.00 | 8.47 | 70.48 | 2.79 | 4.80 | 70 | 11.5 | 7.9 |
| 9.00 | 9.50 | 62.84 | 3.11 | 4.80 | 70 | 11.5 | 7.8 |
| 10.00 | 10.23 | 58.36 | 3.35 | 4.80 | 70 | 13.2 | 7.9 |
II. The importance of a good semi-finished lens to RX production:

Free form laboratory requires accurate and stable base curve / radius / thickness of high quality semi-finished lenses. Substandard semi-finished lenses will result in a large waste of capacity, labor, click fees, delivery delays, etc., and the consequences will exceed the cost of semi-finished lenses.
III. 1.61 ASP UV400 lens:
----Lighter weight and thinner thickness, up to 50% thinner and 35% lighter than other lenses.
----Higher resistance to scratches and impact.
----Fuller protection against UV rays.
----Easier to clean due to the water and dirt repellent surface.
----Aspherical design, offer the wearers amazing visual comfort and aesthetic appeal.
IV. AR Coating: A Perfect Companion for High-Index Lenses
![]() |
|
V. Packing&Shipping:
| Envelop | |
| Choice 1 | Choice 2 |
| White envelop | color envelop with customer design weight: 157g size: 9*9*9cm |
| Outer box | |
standard export paper carton 38cm*48cm*35cm(0.064 CBMS) | |
| Finished lens | Semi-finished lens |
about 500 pairsper carton, 21kgs | about 100 pairs per carton, 15kgs |
| Lead time | |
| Depend on the quantity | |
| Carrier | |
| We can choose for you or offer us your cooperative company | |
| All the numbers provided above are estimated number,the actual numbers need to be measured according to the order you make | |

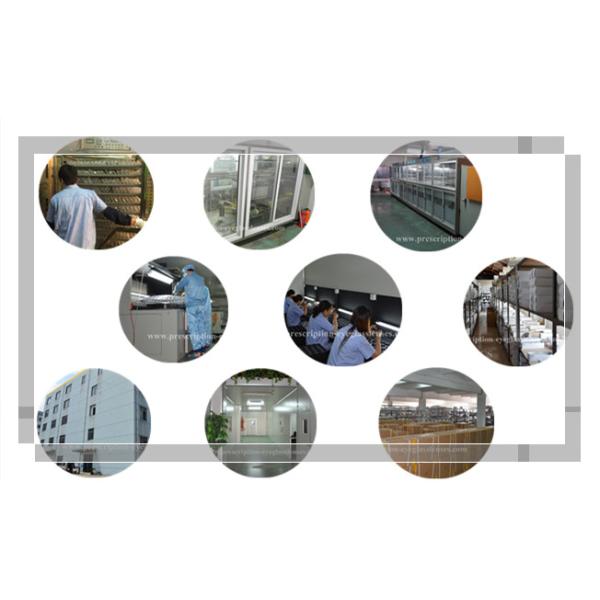

VI. Our factory:

VII. FAQ:
1 . Are your company a manufacturer or a trade company?
We are a manufacturer with many years exporting experience. Our factory is located in Jiangsu province.
2 . How can I get sample from you?
Just send us your requirements, then we will send samples accordingly.
3 . Can your products be customized?
We accept OEM &ODM orders. Actually most of our products are customized. We will try our best to fulfill your requirements about the material, the size, the printing.
4 . How many days will samples be finished? How about mass products?
Generally, we need 5-7 days to finish the sample production.
As for the mass products, it depends on your order quantity.
5 . Do you have stock products to sell?
Yes.We have a lot of inventory.
|
