Machinery Slip Ring Electric Motor 15 Circuits 240VAC Voltage 300rpm

15 Circuits Separate Electrical Slip Ring with 240VAC Voltage & 300 rpm Working Speed

Description

These slip rings are manufactured by our deft team members, with premium grade metal-alloys through the edge-cutting technologies. The offered slip rings are assembled in various mechanical components to increase the rate of power transmission.

It is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint. It can improve electromechanically capability, simplify system design and eliminate possible damage while in the rotation.

The LPS-15 separate slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.

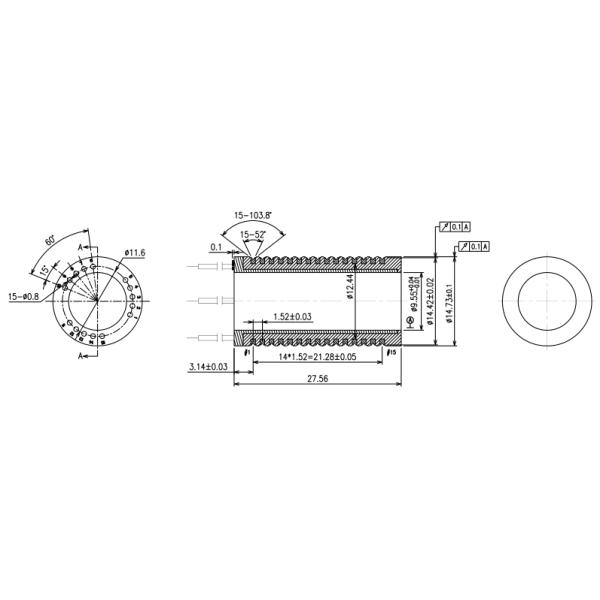

Outline Drawing

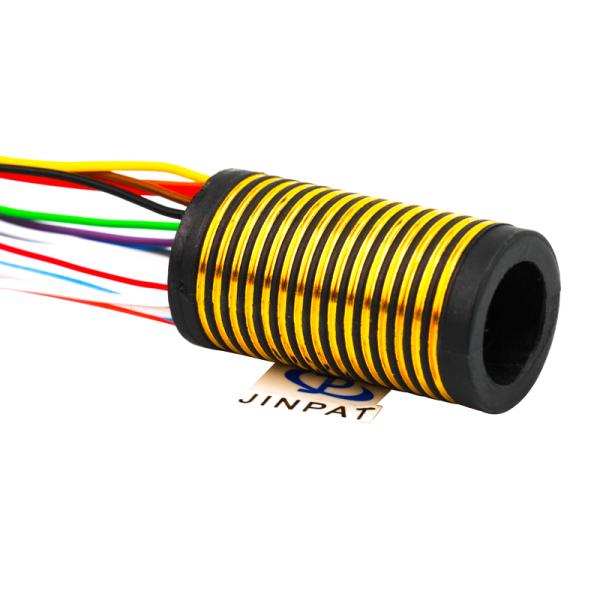

Product Display

Application Picture

JINPAT Electronics, founded in 1996, is a national high-tech enterprise specializing in R&D, manufacturing and sales of high-precision slip rings. Typical products like Capsule Slip Ring, Through-bore Slip Ring, Large-current Slip Ring, Coax Rotary joint, Fiber Optic Slip Ring, Separate Slip Ring, Pin Slip Ring.

Besides, customization is supported to cater to the different application in that slip ring can be designed exclusively integrated with Ethernet, USB, HDMI, Sensor, CAN Bus, Thermocouple, RS232, RS422 and so forth.
