Shuguang 12AT7 replace ECC81 B9A vacuum tube for Radio,TV-reception, Guitar tube amplifier

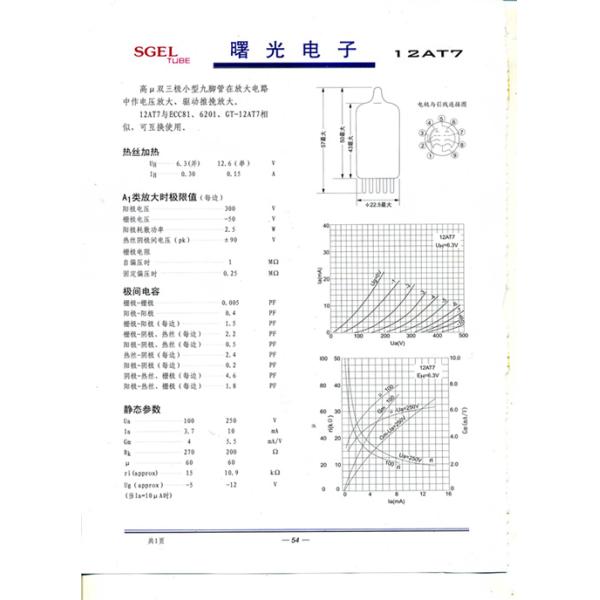

Datasheet:

Tube type:	Double Triode
Identical to	12AT7 = ECC81 = CV455 = CC81E = B152 = B309
Base	Noval, B9A
Can be used by	Radio,TV-reception, Guitar tube amplifier.
Filament Voltage	6.3-12V
Filament Current	300-150mA
Plate Voltage (max)	300V
Plate Current (max)	15mA
Plate Dissipation (max)	2.5W
Screen Voltage (max)	---V
Screen Current (max)	---A
Screen Dissipation (max)	---W
