Hotline Waterproof Emergency Vandal Resistant Telephone

Categories Vandal Resistant Telephone
Brand Name: J&R
Model Number: JR211-CB
Certification: CE, FCC, RoHS, ISO9001
Place of Origin: Shenzhen, China
MOQ: 1 set
Price: Reconsideration
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Delivery Time: 3-5 working days
Packaging Details: pearl cotton, carton
Material: Cold rolled steel
Warranty: 2 Years
Weatherproof: IP55-IP65
Armored Cord: Yes
Magnetic Hook: Yes
Desk type: Yes
Communication type: Full duplex
Auto-dial: Yes
Standard Color: Red
Brand: J&R
Company Info.
J&R Technology Limited
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

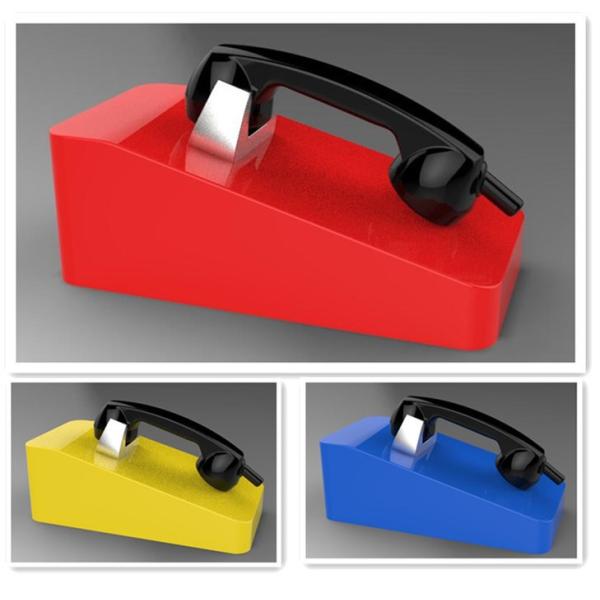

Hotline Waterproof Emergency Vandal Resistant Telephone

Anti-vandal Hotline Emergency Telephone for Tunnel Control Room


Housed in cold rolled box and manufactured to a high standard, JR211-FK offers increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.


Extremely easy to install. The cable entrance is on the back of the phone to prevent from artificial damage, while the keypad is weather and vandal resistant.


MAIN FEATURES

- Standard Analogue, GSM, 3G, or SIP/ VoIP phone

- Robust housing, constructed of cold rolled steel

- Vandal resistant handset and armored cord

- Weather proof protection from IP54 to IP 65


- Magnetic reed hook switch

- Auto-dial, easy to operate

- Desk mounting, simple installation

- Programmable for hot line


- Phone line powered (Analog)

- External power supply or PoE (SIP)

- RJ45 Port for SIP connection

- Inductive coupler fitted as standard for hard of hearing

- CE, FCC, RoHS, ISO9001 compliant


TECHNICAL PARAMETERS


Ambient conditions
Protection typeIP 66 as per EN60529
Operating temperature-40°C to +70°C
Storage temperature-45°C to +85°C

Analogue Version
Power SupplyFrom the analogue telephone network
Supply Voltage24 VDC to 65 VDC
Supply Current20 mA DC to 100 mA DC
Ringer Volume- 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing MethodDTMF mode in accordance with ITU-T recommendation Q.23.

SIP Version
Power SupplyPoE or 12V DC
Power Consumption-Idle: 1.5W
-Active: 1.8W
SIP ProtocolSIP 2.0 (RFC3261)
Support CodecG.711 A/U, G.722 8000/16000, G.723, G.729
Communication TypeFull duplex
Ringer volume- 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)

APPLICATIONS

Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.


PACKAGE

Unit size: 300 *150 *160 (mm)

Packaging materials: Pearl cotton, Carton

Net weight: 3 KG

Gross weight: 4 KG
