Cold Rolled Steel Vandal Resistant Telephone

Categories Vandal Resistant Telephone
Brand Name: J&R
Model Number: JR201-FK
Certification: CE, FCC, RoHS, ISO9001
Place of Origin: Shenzhen, China
MOQ: 1 set
Price: Reconsideration
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Delivery Time: 3-5 working days
Packaging Details: pearl cotton, carton
Material: Cold rolled steel
Version: Analog, SIP, GSM/ 3G
Weather protection: IP55-IP65
Handset: ABS material
Keypad: 12-key metal keypad
Gross Weight: 4 KG
Color: Grey or customized color
Warranty: 2 Years
Company Info.
J&R Technology Limited
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

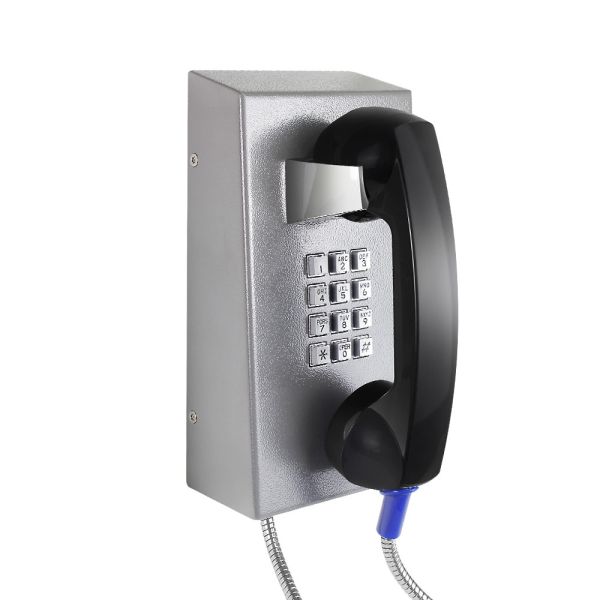

Cold Rolled Steel Vandal Resistant Telephone

Vandal-proof Correctional Center VoIP Telephone, Robust Handset Phone for Control Room


This Vandal Resistant Telephone with armored cord is housed in robust cold rolled steel box and manufactured to a high standard, it is offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.


Extremely easy to install. The cable entrance is on the back of the phone to prevent from artificial damage, while the keypad is weather and vandal resistant.


MAIN FEATURES

- Standard Analogue phone, available for SIP/GSM/3G version

- Robust housing, constructed of cold rolled steel

- Weather proof protection up to IP55-IP65

- Vandal resistant handset with armored cord


- 12-key rugged & metal keypad

- Non-volatile memory

- Can be programmed remotely by tone phone or locally via keypad


- Telephone line powered (Analog version )

- External Power supply or PoE powered (SIP version)

- RJ45 port for SIP phone


- On wall mounting, simple installation

- Inductive coupler fitted as standard for hard of hearing

- CE, FCC, RoHS, ISO9001 compliant


TECHNICAL PARAMETERS

Analogue Version
Power SupplyFrom the analogue telephone network
Supply Voltage24 VDC to 65 VDC
Supply Current20 mA DC to 100 mA DC
Ringer Volume- 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing MethodDTMF mode in accordance with ITU-T recommendation Q.23.

SIP Version
Power SupplyPoE or 12V DC
Power Consumption-Idle: 1.5W
-Active: 1.8W
SIP ProtocolSIP 2.0 (RFC3261)
Support CodecG.711 A/U, G.722 8000/16000, G.723, G.729
Communication TypeFull duplex
Ringer volume- 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)

Ambient conditions
Protection typeIP 66 as per EN60529
Operating temperature-40°C to +70°C
Storage temperature-45°C to +85°C

PACKAGE

unit size: 247 *130 *132 (mm)

Carton size: 340 *235 *165 (mm)

Packaging materials: pearl cotton, carton

Net weight: 3 KG

Gross weight: 4 KG


APPLICATIONS

Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.
