| Categories | LED Underground Light |
|---|---|
| Brand Name: | A.L |
| Model Number: | AL-1ED |
| Certification: | CE,ROHS |
| Place of Origin: | Guangdong,China |
| MOQ: | 5pcs |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union,Paypal |
| Supply Ability: | 2,000pcs per day |
| Delivery Time: | Sample and small order 2-4workdays,bulk order 8-12 workdays |
| Packaging Details: | 8pcs/CTN (27x27x29CM),Weight 6Kg |
| Power: | 1W,3W |
| Beam Angle: | 30° |
| Input: | 24V;120V;240V |
| Material: | 316 Stainless Steel,Die-casting Aluminum |
| Cable Length: | 0.6m or longer |
| Warranty: | Two years |
| Company Info. |
| A.L Lighting Limited |
| View Contact Details |
| Product List |
Die Casting Aluminum 3W Four Sided LED Underground Light 24V 120V 240V With 316 S/S Cover
Quick Details
Technical Datas
| Model No. | AL-E2CD |
| Input Voltage | 24V,120V,240V |
| Power | 3W |
| Light Size | Φ116mm x H70.5m |
| Sleeve Size | Φ110mm x H102m |
| Color | R/G/B/Y/Amber/W/CW/WW |
| Color Temperature | 2700K~6500K |
| LED Chip | CREE 1W/3W high power LED |
| LED Qty | 6pcs |
| Beam Angle | 15°/30°/45°/60° |
| Dimmable | YES |
| IP Grade | IP67 |
| Weight | 0.75Kg |
| Lighting Way | Side Lighting |
| Housing | Die-casting aluminum |
| Sleeve | PVC |
| Carton Package Dimension | 27 x 27 x 29CM/8pcs |
| Carton Package Weight | 6Kg |
| Certification | CE,RoHS |
| Warranty | 2/3years |
Material & Manufacturing Technique
Housing:12# Die-casting grey powder coated aluminum
Front cover:stainless steel sus316#.
Loading Capacity:>2000Kg
Cable gland:IP68 PG-11 copper with nickel-coated.
Gasket:Molding shaped silicone seal
Driver:Constant current output
Applicaation environment: -20℃-40℃
Power cable: H05RN-F 3x1.0mm² L=0.5M(High Voltage)
Mounting Sleeve:012PVC
Model Information
| Model No. | Color | Power | Lighting Way |
| AL-1E2CD02 | R/G/B/Y/W/CW/WW | 2W | One-Side-Lighting |
| AL-1E2CD05 | RGB 3in1 | 2W | One-Side-Lighting |
| AL-2E2CD02 | R/G/B/Y/W/CW/WW | 2W | Two-Side-Lighting |
| AL-2E2CD05 | RGB 3in1 | 2W | Two-Side-Lighting |
| AL-4E2CD02 | R/G/B/Y/W/CW/WW | 2W | Four-Side-Lighting |
| AL-4E2CD05 | RGB 3in1 | 2W | Four-Side-Lighting |
Competitive Advantage
| 1. 304/316 Stainless steel front cover,die-casting aluminum lamp housing,good heat dissipation. |
| 2. R/G/B/Y/W/CW/WW/ color optional,meet different lighting design. |
| 3. Low voltage 24V,high voltage 120V-240V optional. |
| 4. One/Two/Four side-lighting,choose the most appropriate way to light the building. |
Dimension
Application
LED Underground Light is widely used for decorative lighting in gardens, streets, square, villa, parks, lawns, supermarket, parking lots, exclusive stores, virescence places, tourist attractions and amusement places. They can make dynamic and beautiful scenes.

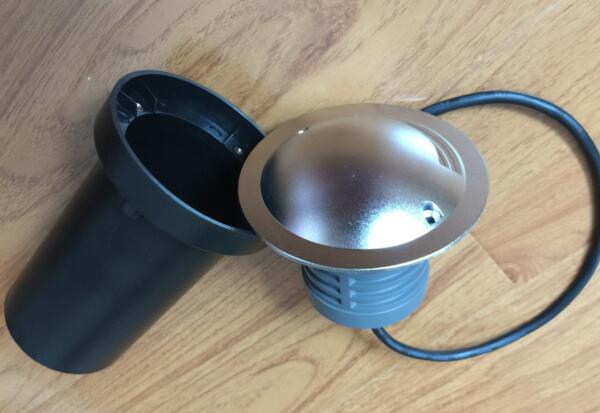

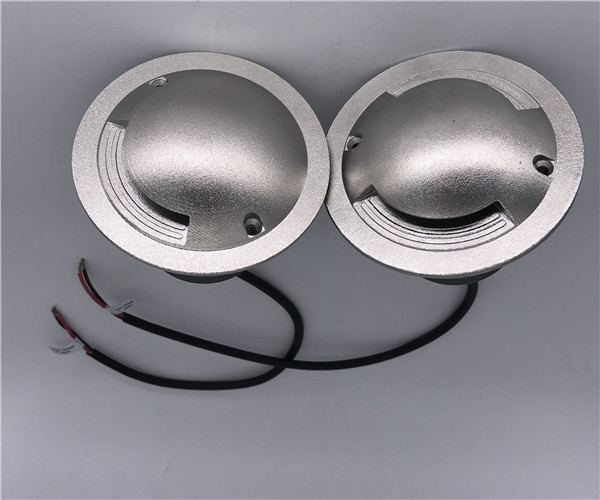

Side Lighting LED Underground Lights photo show
|
