| Categories | Magnetic Particle Testing |
|---|---|
| Brand Name: | HUATEC |
| Model Number: | HCDX-1000～5000 |
| Certification: | ISO, CE, GOST |
| Place of Origin: | Beijing |
| MOQ: | 1pcs |
| Payment Terms: | T/T, Paypal, Western Union |
| Supply Ability: | 500pcs per month |
| Packaging Details: | Standard export package |
| Delivery Time: | 1-4days |
| name: | magnetic particle testing machine |
| Magnetization: | circular magnetization and longitudinal magnetization |
| demagnetization: | function included |
| Host size: | 360(width) ×550(height)×650(depth)mm；(excluding handlebar) |
| Weight: | 130kgs |
| Current-carrying capacity (duty cycle): | 60% of 0-1500A; 18% of 1500-3000A; and 5% of 3000A-5000A |
| Output cable: | 4*150 mm2 flexible cable |
| Input power: | 460V (two-phase three-wire), 60Hz, the maximum instantaneous current is about 140A |
| AC magnetization current: | 0 ~ 6000A (RMS) continuously adjustable, short-term intermittent, with phase controlled function |
| Company Info. |
| HUATEC GROUP CORPORATION |
| Verified Supplier |
| View Contact Details |
| Product List |

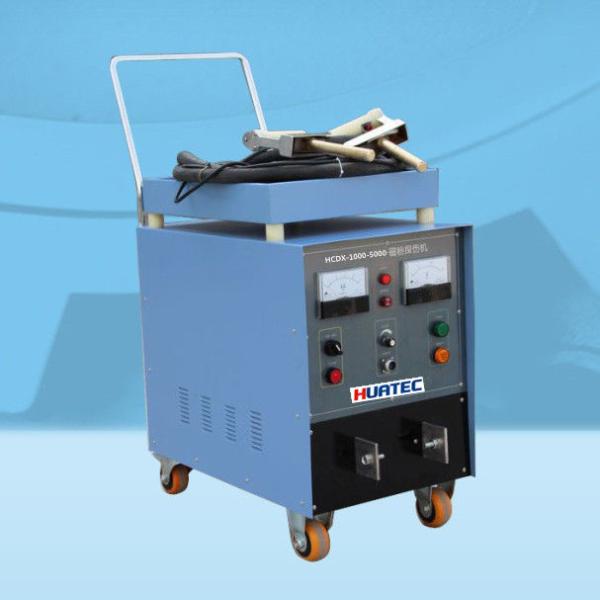

HUATEC Movable Magnetic Particles Flaw Detector HCDX-1000～5000
Movable Magnetic Particles Flaw Detector HCDX-1000～5000 is applicable to detect workpieces by AC or DC magnetization. It has the function of demagnetization, and do not need additional configuration of demagnetization set.
The instrument comes with rollers, flexible and light. It can be fixed or move to the workshop or laboratory. The detector is applied to aviation, machinery, automobile, railway, ships, pressure vessels and other manufacturing industries. It is suitable for detecting the part or whole of workpieces, include abnormal part.
8-bit MCU is adopted as the controller by this magnetic particles flaw detector, and the continuous regulation of magnetizing current can be realized through the precise collection of the AC zero voltage crossing signal and the signal of current regulation. It has the function of maximum current limit. With the function of phase controlled, the detector is suitable for both continuous technique and residual technique.
The current value is displayed on the analog ammeter or digital ammeter. The prod sets and trigger button are for operating in the narrow space.
The output current is reduced from the initial value to zero automatically when demagnetizing. Non-contact switch is adopted for the equipment.
This detector can be connected to the prod sets (handheld electrode sets) or spiral cable (flexible coil). Also there are some coils or electrodes designed for this equipment to become a simple inspection machine tool as option.
Characteristics:
Movable host machine:
Can be used as the power for circular magnetization
Can be used as the power for longitudinal magnetization
Simple inspection machine tool:
Electrode of circular magnetization
Coil of circular magnetization
Manual adjustment of tail electrode
Stainless steel sink
Stainless steel tank (include spray pump and mixing pump)
Spray gun
Magnetic ink can be reused
Black magnetic particles, red magnetic particles,fluorescent
magnetic particles are supported
UV light as option for fluorescent magnetic particles testing
Technical features:
1. AC magnetization current: 0 ~ 6000A (RMS) continuously adjustable, short-term intermittent, with phase controlled function;
2. Automatic demagnetization current: AC 6000A ~ 0 (RMS) continuously adjustable, demagnetization time < 5 s, it will be shortened with the decrease of the current;
3. Demagnetization effect: standard load, the remanence is less than 0.2 mT.
4. Current-carrying capacity (duty cycle): 60% of 0-1500A; 18% of 1500-3000A; and 5% of 3000A-6000A;
5. Output cable: 4*150 mm2 flexible cable;
6. Input power: 460V (two-phase three-wire), 60Hz, the maximum instantaneous current is about 140A;
7. Overall dimension: about 360(width) ×550(height)×650(depth)mm；(excluding handlebar)；
8. Weight: about 130kg.
Configuration table:
Type Configuration | HCDX-1000 | HCDX-2000 | HCDX-3000 | HCDX-5000 |
| AC magnetization | ● | ● | ● | ● |
| AC current | 0-1000A | 0-2000A | 0-3000A | 0-5000A |
| Half-wave rectified magnetization | ○ | ○ | ||
| AC demagnetization | ● | ● | ● | ● |
| DC demagnetization | ○ | ○ | ○ | ○ |
| Coil | ○ | ○ | ○ | ○ |
| Simple machine tool | ○ | ○ | ||
| Power input | Two phase 380V/50Hz 380V/ 50Hz for 2 wires | |||
Notes: “●”marked as standard, while “○”marked as option.
|
