ER14335 UN UL CE RoHS 2/3AA Lithium Thionyl Chloride Batteries 130mA

Categories Li-SOCl2 Battery
Brand Name: HCB
Model Number: ER14335/ 2/3AA
Certification: UN/UL/RoHS/CE
Place of Origin: China
MOQ: 1K pcs
Price: Negotiable
Payment Terms: T/T, L/C
Supply Ability: Two millions units per month
Delivery Time: 35 work days
Packaging Details: Special design for Air/Sea/Courier transportation
Weight: 13g
Full-size(mm): Φ14.5×33.5
Peak pulsing current: 130mA
Nominal Capacity: 1650mAh
Maximum Pulse Discharge Current: 130mA
Maximum Continuous Current: 65mA
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

ER14335 UN UL CE RoHS 2/3AA Lithium Thionyl Chloride Batteries 130mA

ER14335 Non-Rechargeable UN UL CE RoHS 2/3AA Lithium Thionyl Chloride Batteries 130mA

Nominal Capacity1650mAh
Battery discharged at continuous current 0.85mA until voltage reaches cut-off voltage 2.0V at ambient temperature 23±2℃
Nominal Voltage3.6 V
Maximum Continuous Current65mA
Battery with minimum 50% rated capacity discharged at ambient temperature 23±2℃
Maximum Pulse Discharge Current130mA
Battery with minimum 50% rated capacity discharged at max pulse for 3 seconds after 27seconds break. Ambient temperature 23±2℃
Storage Condition

Temperature ≤ 30℃

Humidity ≤ 75%RH

Operating Temperature-55℃ to +85℃

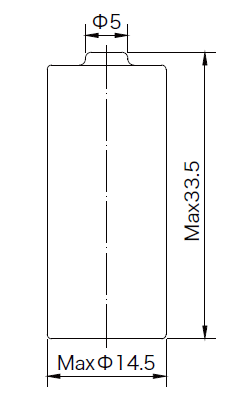

Battery DimensionSee drawing on pag
Max Weight13.0g
Self-discharge Rate2%
Max self-discharged rate at ambient temperature 23±2℃
Shelf Life10 years
Ambient temperature 23±2℃

Features

  • High Voltage

Nominal voltage up to 3.0 V

  • High Energy Density

Specific energy density up to 260 Wh/kg

  • Wide Operating Temperature Range

-40°C to +85°C

  • Long Shelf Life

Self discharge rate is less than 2% per year at room temperature
High capacity, stable performance, no passivation effect
Glass-to-metal seal
Bobbin and spiral structure is available for different applications
